Lian Li Hydroshift II LCD-C 360N Fanless CPU Liquid Cooler (Black)

Lian Li Hydroshift II LCD-C 360N Fanless CPU Liquid Cooler (Black)

Feature

• Side-mounted tubing and concealed wiring for a minimal, tubeless appearance.
• Features a 2.1” IPS LCD with 480×480 resolution, 500-nit brightness, and 60Hz refresh rate.
• Offers Offline, Wireless, and Advanced USB-connected control modes.
• Three configurations: with TL Wireless, CL Wireless, or fan less for full DIY flexibility.
• Precision tubing alignment with adjustable routing for cleaner builds.
• Slimmed-down 360mm radiator (400×122×24mm) for enhanced case compatibility.
• Pre-installed LIAN LI  UNI FANs and support for L-Connect 3 software customization.
• Includes redesigned mounting bracket and 6-year warranty.

HYDROSHIFT II LCD-C 360N

Provides full DIY flexibility, giving users the freedom to choose and install their preferred fans.

Note: Fans are required for operation.

SEAMLESS INTERACTION,COMPLETE CONTROL

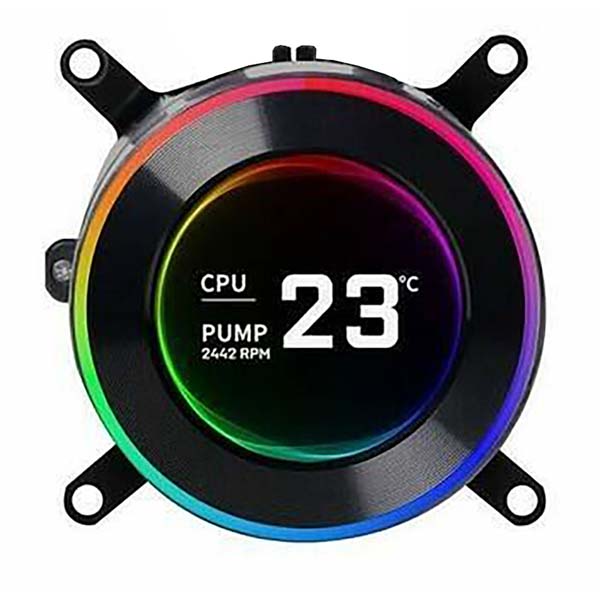

Experience vibrant visuals on the 2.1″ IPS LCD, featuring a sharp 480×480 resolution and 500-nit brightness for clear display even in well-lit environments. A 60Hz refresh rate ensures smooth, fluid animations.

MINIMALIST AESTHETICS,MAXIMUM FREEDOM

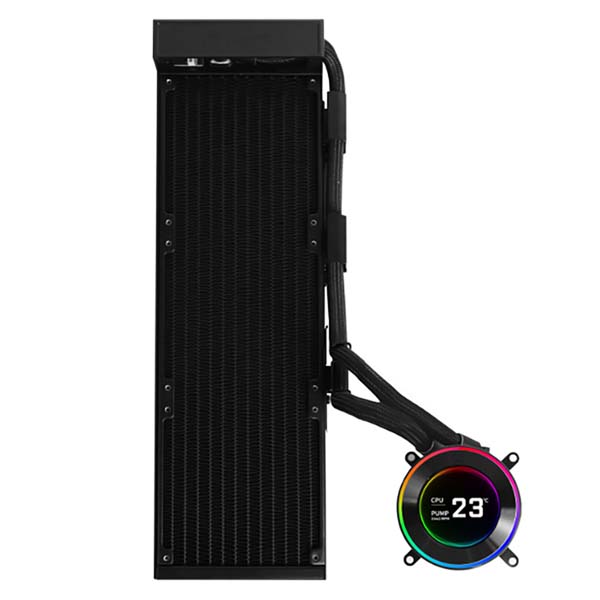

The innovative side-mounted tubing design routes the tubes along the edge of the radiator, significantly reducing visual clutter. Pump and USB cables are seamlessly hidden in the tubes’ woven sleeve that integrates into the radiator’s side for a “nearly cable-free and tubeless” look.

Additionally, the USB power and data cables are integrated directly into the cooling tubes, leaving the cap completely wire-free, making your computer’s interior more organized.

Pre-installed with three tube support brackets, the water cooling tubes are neatly concealed, while the exposed sections appear more organized, further enhancing the overall tidiness of the case interior.

RECISION FIT,EFFORTLESS ALIGNMENT

Hydro shift II LCD-C is engineered with both aesthetics and flexibility in mind. Its innovative adjustable tubing design allows for precise alignment directly to the CPU, optimizing cable routing and creating a cleaner internal layout. The result is a sleek, streamlined build that adds refined character to any PC.

Note: Users can fine-tune the rightmost tube bracket at the 140mm position on the radiator mount.

REDUCED DIMENSIONS WITHOUT PERFORMANCE COMPROMISE

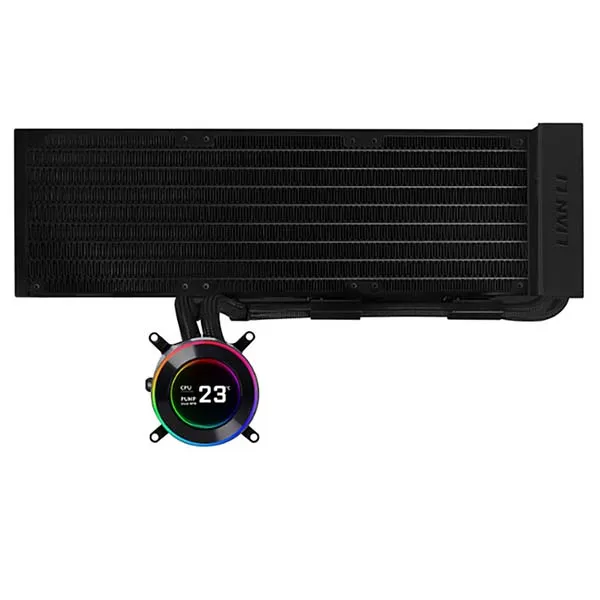

The radiator has been compactly redesigned to just 400 × 122 × 24mm: 3mm thinner, 3mm shorter, and 2.5mm narrower than the previous generation. This reduced footprint improves compatibility with mainstream PC cases, making installation easier while maintaining excellent thermal performance.

REDESIGNED MOUNTING BRACKET

The newly developed mounting system is designed for easier, more intuitive installation. Engineered for simplicity, the new mounting bracket streamlines the setup process with improved structure and logic.

UNIVERSAL COMPATIBILITY, HASSLE-FREE SETUP

Hydro shift II LCD-C is designed for easy installation and supports all major CPU sockets, ensuring a smoother, worry-free building experience.

FLEXIBLE LAYOUT, UPGRADED COMPATIBILITY

The top mounting position needs support for both 360mm and 280mm sized radiators, the Hydro Shift II fits standard 360 AIO spacing of 400mm for radiator length, and 280mm AIO support gives 140mm width for the tubing installation. Depending on the case’s top clearance, users may opt to remove the vertical tubing support bracket. It is recommended for setups with radiator + fan thickness over 55mm.
Since different cases may present varying installation scenarios, users can adjust or remove the support bracket as needed to suit their specific setup. Please refer to the user manual for detailed guidance.

The user can use thumb screws to slightly adjust the bracket position around the 140mm mounting area on the radiator bracket.

The vertical bracket needs to be repositioned directly behind the CPU, and any excess tubing should be routed toward the back of the radiator. If necessary, consider removing the leftmost tubing support bracket. (Note: Tubing clips are not usable in this layout.)

The vertical bracket needs to be repositioned directly behind the CPU, and any excess tubing should be routed toward the back of the radiator. If necessary, consider removing the leftmost tubing support bracket.
(Note: Tubing clips are not usable in this layout.)

MOUNTING COVER CAPS

Conceal screws and brackets for a unified, clean aesthetic.

CABLE MANAGEMENT CLIPS

Keep coolant tubing organized for a neater and more streamlined build.

INDUSTRIAL-GRADE CORRUGATED TUBING

Flexible and durable for easy routing across different cases. Designed to bend freely to either side for optimized cable paths and convenience.
