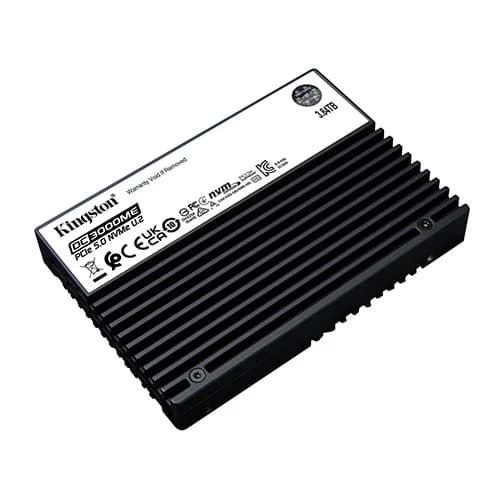

Kingston DC300ME 3.84TB U.2 NVMe Gen5 Enterprise SSD

Kingston DC300ME 3.84TB U.2 NVMe Gen5 Enterprise SSD

Feature

• Data-center-class SSD for enterprise applications
• U.2 PCIe NVMe Gen5 x 4
• Up to 14,0000 MB/s read / 10,000MB/s write
• 2,700,000 IOPS

Kingston’s DC3000ME U.2 SSD features a high-speed PCIe 5.0 NVMe interface and 3D TLC NAND, ideal for AI, HPC, OLTP, cloud applications and edge computing in both Gen4 and Gen5 NVMe servers. The DCM3000ME is designed with system integrators, hyperscale data centers and cloud service providers in mind, offering hardware-based power loss protection, AES 256-bit encryption, TCG-Opal support, low-latency performance and I/O consistency to ensure reliability and security.

Kingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilizes 3D eTLC NAND, making it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES 256-bit encryption for ultimate data security. DC3000ME utilizes the latest high-speed PCIe 5.0 interface and is backward-compatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service providers can depend on.

Applications and workloads

DC3000ME is ideal for running a wide range of server applications and workloads including:

• AI
• HPC
• Cloud services
• Edge computing
• Software-defined storage
• RAID
• General server use

Enterprise PCIe 5.0 performance

Delivers I/O consistency and low latency with sustained speeds of up to 14,000MB/s read and 2,700,000 read IOPS

Optimal storage and efficiency

High-capacity options available offering an exceptional balance of consistent I/O delivery and ultra-high performance. Optimised to handle a wide range of server workloads efficiently.

On-board power loss protection (PLP)

Enterprise-class protection to reduce the possibility of data loss or corruption on ungraceful power fails, including NVMe-MI 1.2b out-of-band management, end-to-end data protection and TCG Opal 2.0.

AES 256-bit encryption

Secure sensitive data with AES 256-bit hardware-based encryption and TCG Opal 2.0.

4k random read/write (IOPS): 2,700,000 / 300,000

Latency quality of service (QoS): 99% – read/write: <10 µs / < 70 µs

Static and dynamic wear levelling: Yes

Power loss protection (power caps): Yes

Encryption: Yes – TCG Opal 2.0, AES 256-bit encryption

Namespace management support: Yes – 128 namespaces supported

Enterprise diagnostics: Telemetry, media wear, temperature, health, etc.

Operating temperature: 0℃ ~ 70℃

Dimensions: 100.50mm x 69.8mm x 14.8mm

Vibration non-operating: 10G peak (10–1000Hz)

MTBF: 2 million hours
