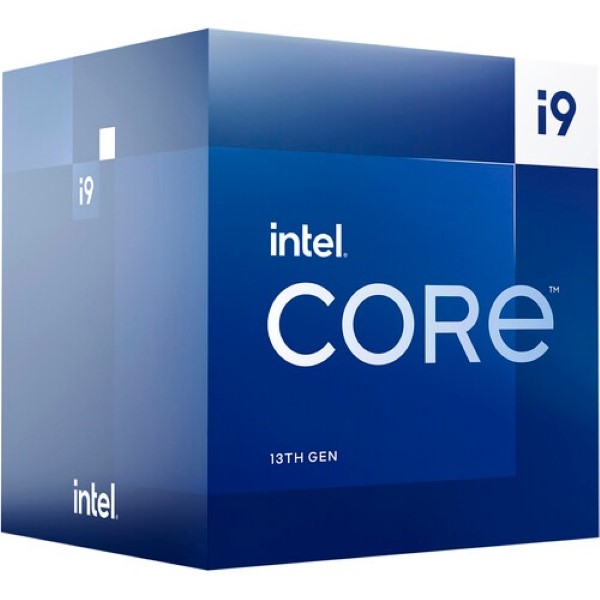

Intel Core i9-13900F 5.6GHz 24-Core LGA 1700 Processor
- 24 Cores & 32 Threads
- 2 GHz P-Core Clock Speed
- 5.5 GHz Maximum Turbo Boost Frequency
- LGA 1700 Socket
- 36MB Cache Memory
- Dual-Channel DDR5-5600 Memory
- Hybrid Core Architecture
- 13th Generation (Raptor Lake)
![](https://greenapplecompunet.com/wp-content/uploads/2023/08/payment-1-1.webp)
Features of INTEL Core i9 13900F 13th Generation Processor
Power up your productivity, gaming, and content creation with the Intel Core i9-13900F 2 GHz 24-Core LGA 1700 Processor. This 13th generation desktop processor builds upon the Hybrid Core architecture and Intel 7 process by fitting 24 cores— eight more than the previous generation— onto a single processor while still supporting the LGA 1700 socket.
Designed to provide exceptional performance, the Core i9-13900F features 16 low-voltage Efficient-cores that handle background tasks for multitasking while the eight 2 GHz Performance-cores provide speed for demanding applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 32MB of cache and a 5.5 GHz Turbo Boost Max 3.0 frequency that can be pushed higher with Thermal Velocity Boost and Adaptive Boost technologies, this processor is made to handle almost any workload. The Core i9-13900F also supports PCI Express 5.0 and dual-channel DDR5 memory at 5600 MHz.
The Core i9-13900F does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. Please note that a thermal solution is NOT included. This processor is backed by a 3-year warranty.
- 24 cores (8 P-cores + 16 E-cores) and 32 threads
- Performance hybrid architecture integrates two core micro architectures, prioritizing and distributing workloads to optimize performance
- Up to 5.6 GHz. 36M Cache
- Compatible with Intel 600 series and 700 series chipset-based motherboards
- Turbo Boost Max Technology 3.0, and PCIe 5.0 & 4.0 support. Intel Optane Memory support. Intel Laminar RH1 Cooler included. Discrete graphics required
Specifications
CPU Model | Intel Core i9-13900F (13th Gen) |
CPU Socket | LGA 1700 |
Manufacturing Process | 10 nm |
Maximum CPU Configuration | 1S |
Maximum Number of PCIe Lanes | 16 (Revision 5.0) 4 (Revision 4.0) |
Unlocked | No |
Number of Cores | 24 (8 x P-Cores + 16 x E-Cores) |
Number of Threads | 32 |
Base Clock Speed | P-Core: 2 GHz E-Core: 1.5 GHz |
Maximum Boost Speed | P-Core Turbo: 5.2 GHz E-Core Turbo: 4.2 GHz |
L3 Cache | 36 MB |
Maximum Capacity | 128 GB |
Memory Support | DDR5 Up to 5600 MHz DDR4 Up to 3200 MHz |
ECC Memory | No |
Channel Architecture | Dual Channel |
Maximum Memory Bandwidth | 89.6 GB/s |
Optane Memory Support | Yes |
Thermal Design Power (TDP) | 65 W |
Included Thermal Solution | None |
Maximum Temperature | 212°F / 100°C |
Thermal Monitoring Technologies | Yes |
AES Support | Yes |
Extension | AVX 2.0, AVX-512, SSE 4.1/4.2 |
Instruction Set | 64-Bit |
Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
DMI | DMI4 (16 GT/s) |
vPro Support | No |
Performance Technologies | Adaptive Boost, Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, SpeedStep, Thermal Velocity Boost, Turbo Boost 2.0, Turbo Boost Max 3.0 |
Security Technologies | Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key, Software Guard Extensions, Threat Detection Technology (TDT), Trusted Execution Technology |
Package Weight | 1.525 lb |
Weight | 1 kg |
---|---|
Brand | Intel |
CPU Cores | 24 |
Processor Series | Core i9, Intel 13th Gen |
Product Type | Normal |
Socket | LGA 1700 |
CPU Threads | 32 |
Processor Model | Core i9-13900F |
TDP | 65W |
Warranty | 3 Years |
EAN Code | 5032037260183 |
