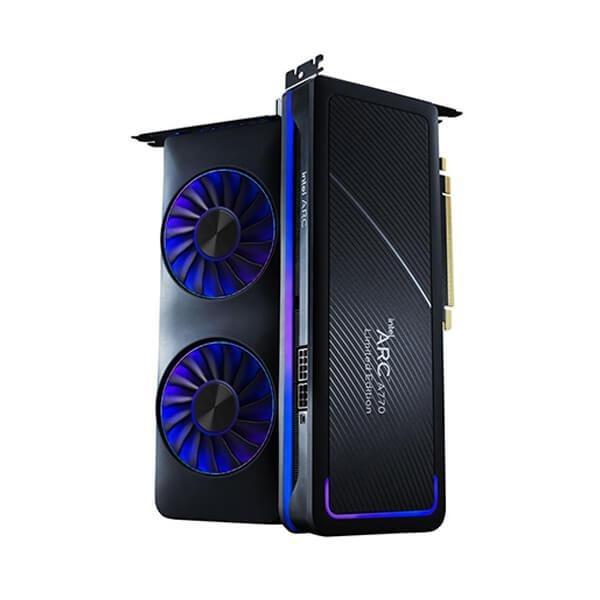

Intel Arc A770 Limited Edition 16GB Graphics Card

Intel Arc A770 Series Graphics for Desktops

Introducing the newest entrant in the graphics universe: Intel Arc A-Series graphics. With built-in machine learning, graphics acceleration, and ray tracing hardware, Intel Arc graphics contains the world’s most advanced technologies uniting fluid gaming, the latest in visual technologies, and rich content creation across mobile and desktop form factors.

High-performance gaming has arrived with Intel Arc 7 graphics – crank up your settings and get immersed. Get the latest gaming technologies and the most comprehensive media capabilities to play and create now and into the future.

• The INTEL ARC A770 is a performance-segment graphics card by Intel.
• It is Built on the 6 nm process, and based on the DG2-512 graphics processor, in its ACM-G10 variant, the card supports DirectX 12 Ultimate. This ensures that all modern games will run on INTEL ARC A770. Additionally, the DirectX 12 Ultimate capability guarantees support for hardware-raytracing, variable-rate shading and more, in upcoming video games.
• The DG2-512 graphics processor is a large chip with a die area of 406 mm² and 21,700 million transistors. Unlike the fully unlocked Arc A780, which uses the same GPU but has all 4096 shaders enabled, Intel has disabled some shading units on the INTEL ARC A770 to reach the product’s target shader count.
• It features 4096 shading units, 256 texture mapping units, and 128 ROPs. The card also has 32 ray tracing acceleration cores. Intel has paired 16GB GDDR6 memory with the Arc A770, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 2100 MHz, which can be boosted up to 2100 MHz, memory is running at 2000 MHz (16 Gbps effective).
• Being a dual-slot card, the Intel Arc A770 draws power from 1x 6-pin + 1x 8-pin power connector, with power draw rated at 225 W maximum. Display outputs include: 1x HDMI 2.1, 3x DisplayPort 2.0. Arc A770 is connected to the rest of the system using a PCI-Express 4.0 x16 interface.
  Specifications:

  Essentials
  Product Collection	Intel® Arc™ A-Series Graphics
  Model Number	A770
  Code Name	Products formerly Alchemist
  Microarchitecture	TSMC N6
  Vertical Segment	Desktop
  GPU Specifications
  Xe-cores	32
  Render Slices	8
  Ray Tracing Units	32
  Intel® Xe Matrix Extensions (Intel® XMX) Engines	512
  Xe Vector Engines	512
  Graphics Clock	2100 MHz
  TBP	225 W
  PCI Express Configurations ‡	Up to PCI Express 4.0 x16
  Memory Specifications
  Memory Size	16 GB
  Memory Type	GDDR6
  Graphics Memory Interface	256 bit
  Graphics Memory Bandwidth	560 GB/s
  Graphics Memory Speed	17.5 Gbps
  Supported Technologies
  Ray Tracing	Yes
  Variable Rate Shading (VRS)	Yes
  DirectX* Support	DirectX 12 Ultimate
  Vulkan* Support	1.3
  OpenGL* Support	4.6
  OpenCL* Support	3.0
  Multi-Format Codec Engines	2
  Adaptive Sync	Yes
  I/O Specifications
  # of Displays Supported‡	4
  Graphics Output‡	eDP* 1.4, DP 2.0 up to UHBR 10**, HDMI* 2.1, HDMI* 2.0b
  Max Resolution (HDMI)‡	4096 x 2160@60Hz
  Max Resolution (DP)‡	7680 x 4320@60Hz
  Features
  H.264 Hardware Encode/Decode	Yes
  H.265 (HEVC) Hardware Encode/Decode	Yes
  AV1 Encode/Decode	Yes
  VP9 Bitstream & Decoding	Yes
  Intel® Deep Link Technologies
  Intel® Deep Link Hyper Compute‡	Yes
  Intel® Deep Link Hyper Encode‡	Yes
  Intel® Deep Link Stream Assist‡	Yes
  Warranty	3 Years
  Note	*** Features, Price, Specifications are subject to change without notice.
