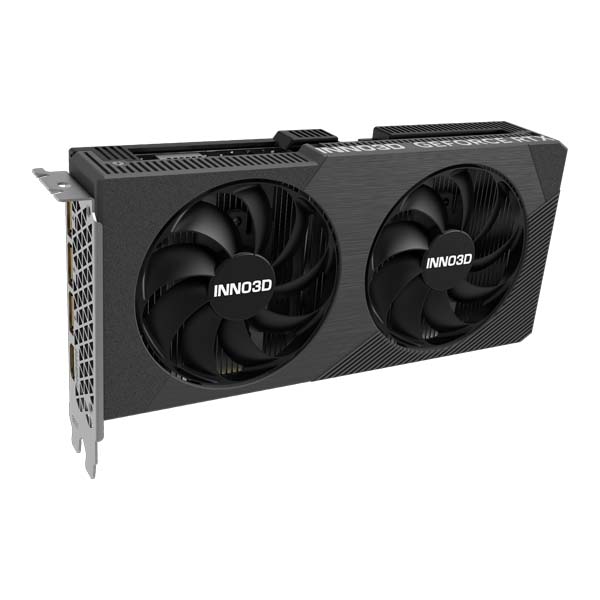

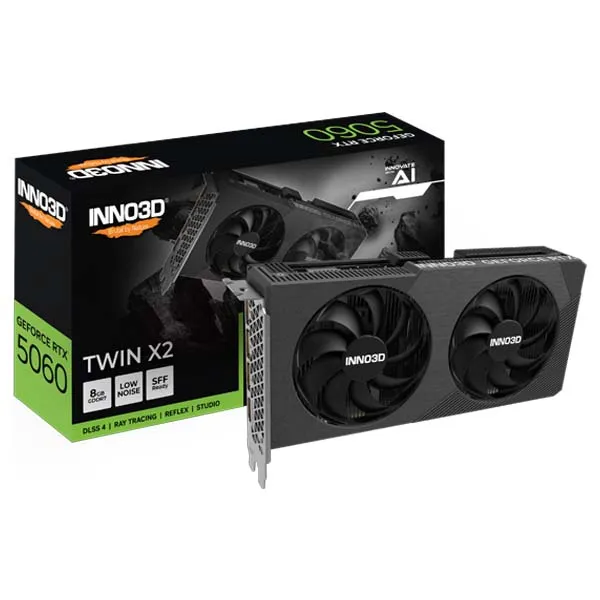

INNO3D GeForce RTX 5060 Twin X2 8GB GDDR7 Graphics Card
Feature
The INNO3D GeForce RTX 50 Series promises exceptional performance from these next-gen graphics cards powered by
NVIDIA’s Blackwell Architecture.
The INNO3D GeForce RTX 50 Series promises exceptional performance from these next-gen graphics cards powered by Nvidia’s Blackwell architecture. The INNO3D GeForce RTX 5060 TWIN X2 OC is a compact powerhouse designed for space-conscious enthusiasts, featuring a sleek dual-slot design that seamlessly integrates into smaller form factor builds. The TWIN X2 OC doesn’t just set new standards in performance; it also captivates with its contemporary aesthetic. This GPU features 4,608 CUDA cores and 8GB GDDR7 memory with a 128-bit interface, and a boost clock of 2,527MHz providing ample power for high-resolution gaming and demanding applications. Redefining the balance between style, size, and raw power, this next-generation graphics card establishes itself as the new benchmark, seeking uncompromised visual excellence in a compact package
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Core
Built for Mega Geometry
INNO3D GeForce RTXâ„¢ 5060 TWIN X2
Powerful Dual Fan
88mm scythe fan blades for optimal cooling with detachable fan blades
Ultra smooth DHTÂ Surface for GPU
Efficient way of delivering the heat to the fins
Heatsink Design
-
Low Noise Fan Blade Design
-
2x Nickel Plated Composite Heat pipes
-
2-slot, SFF design
Multifunctional Backplate
Hot air extraction and release, and PCB protection
SPECIFICATIONS
CUDA Cores | 3840 |
Boost Clock | 2497 MHz |
Base Clock | 2280 MHz |
Minimum System Power Requirement | 550W |
Supplementary Power Connectors | 1x PCIe 8-pin |
Memory Clock | 28 Gbps |
Standard Memory Config | 8GB |
Memory Interface | GDDR7 |
Memory Interface Width | 128-bit |
Memory Bandwidth | 448 GB/sec |
Real-Time Ray Tracing | Yes |
Ray Tracing Cores | 4th Generation, 58 TFLOPS |
Tensor Cores | 5th Generation, 614 AI TOPS |
NVIDIA Architecture | Blackwell |
Microsoft DirectX | 12 Ultimate |
NVIDIA DLSS | 4 |
NVIDIA Ansel | Yes |
NVIDIA FreeStyle | Yes |
Bus Support | PCI Express Gen 5 |
NVIDIA ShadowPlay | Yes |
OS Certification | Windows 11 / 10, Linux, FreeBSDx86 |
NVIDIA Highlights | Yes |
NVIDIA G-SYNCâ„¢ Ready | Yes |
Game Ready Drivers | Yes |
NVIDIA Studio Drivers | Yes |
NVIDIA GPU Boostâ„¢ | Yes |
Vulkan API | 1.4 |
OpenGL | 4.6 |
NVIDIA Encoder | 1x Ninth Generation |
NVIDIA Decoder | 1x Sixth Generation |
Graphics Card Length | 225mm |
Graphics Card Height | 116mm |
Graphics Card Width | 41mm |
Multi-Monitor Support | Up to 4 |
Max Digital Resolution | 4K at 480Hz or 8K at 165Hz with DSC |
HDCP | 2.3 |
Standard Display Connectors | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
Weight | 1 kg |
---|---|
Product Type | Gaming |
color | Black |
Brand | INNO 3D |
GPU Chipset | NVIDIA Geforce |
GPU Memory Size | 8GB |
GPU Series | RTX 50 Series |
Max GPU Boost Clock | 2497 Mhz |
Memory Series | GDDR7 |
Warranty | 3 Years |
EAN Code | 8886307701169 |
