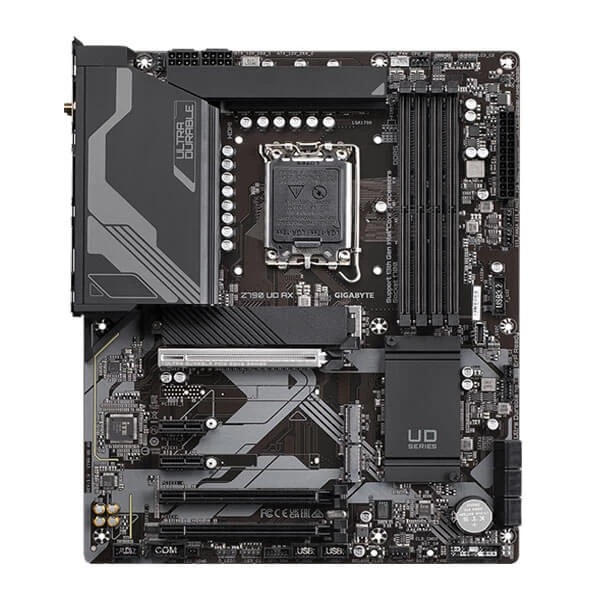

Gigabyte Z790 UD AX Intel (Wi-Fi) Motherboard Supports Intel 12th, 13th & 14th Gen Processors
Sale!42%
- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Twin 16+1+１ Phases Digital VRM Solution
- Dual Channel DDR5：4SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance - EZ-Latch Plus：PCIe 5.0 x16 Slot with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：DP, HDMI, Front USB-C® 5Gb/s, Rear USB-C® 20Gb/s - Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
- 8+8 phases parallel power design
Original price was: ₹39,000.00.₹22,445.00Current price is: ₹22,445.00. (Inclusive of GST)
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Get it by
May 09 May 13
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Q & A
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
4X Large Surface
Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.
Gigabyte Z790 UD AX Support 13th and 12th Gen Series Processors, 3 PCIe 4.0 x4 M.2 Connectors with 1 Thermal Guard, Dual Channel DDR5 7600MHz RAM, 2.5GbE LAN & Wi-Fi 6E
Key Features:
Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Twin 16*+1+１ Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch Plus：PCIe 5.0 x16 Slot with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：DP, HDMI, Front USB-C® 5Gb/s, Rear USB-C® 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
SPECIFICATIONS
| CPU Socket | LGA 1700 |
| CPU Support | 13th, 12th Gen Intel Core, Pentium Gold, Celeron |
| Chipset | Intel Z790 Express |
| Memory | 4x DDR5 DIMM, up to 128GB, 7600(O.C)/4000 MT/s |
| Onboard Graphics | Intel HD Graphics, HDMI 2.0, DisplayPort |
| Audio | Realtek Audio CODEC, 2/4/5.1/7.1 channels |
| LAN | Realtek 2.5GbE LAN |
| Wireless | AMD Wi-Fi 6E RZ616, Bluetooth 5.2 |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1, 2x PCIe 3.0 x1 |
| Storage | 6x SATA 6Gb/s, 3x M.2 (PCIe 4.0) |
| USB | 1x USB-C 3.2 Gen 2x2, 1x USB 3.2 Gen 2, 6x USB 3.2 Gen 1, 8x USB 2.0 |
| Form Factor | ATX, 30.5cm x 24.4cm |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Weight | 1 kg |
|---|
