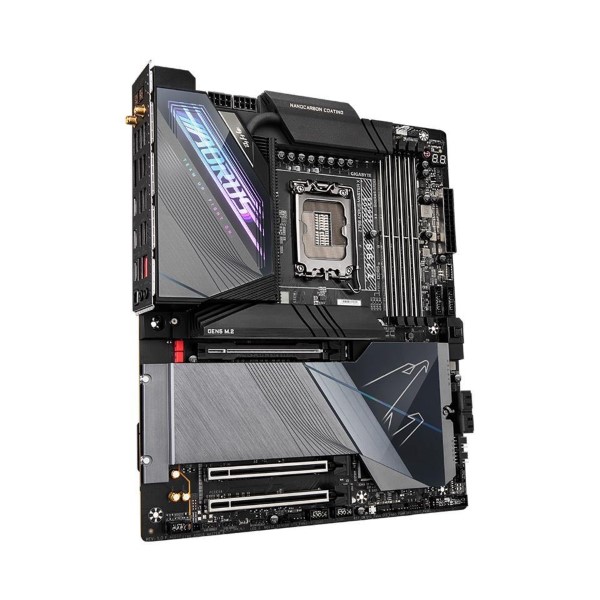

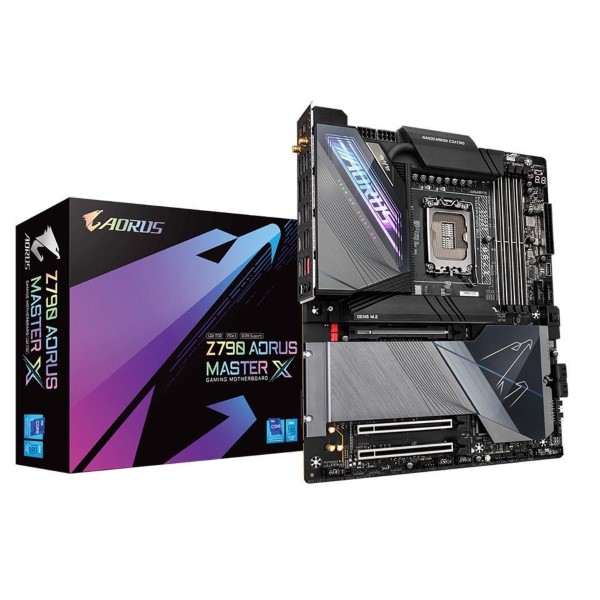

Gigabyte Z790 AORUS MASTER X Intel LGA 1700 E-ATX Motherboard Supports Intel 12th, 13th & 14th Gen Processors
Original price was: ₹90,000.00.₹56,699.00Current price is: ₹56,699.00. (Inclusive of GST)
41
People watching this product now!
- E-ATX Form Factor
- Z790 Chipset
- LGA 1700 Socket
- 4 x Dual-Channel DDR5 RAM Slots
- 4 x SATA III, 5 x M.2 PCIe
- 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4)
- 1 x PCIe 3.0 x16 (x1)
- Wi-Fi 7 | 10 GbE | Bluetooth 5.3
- USB 2.0, 3.2 Gen 1, Gen 2, Gen 2×2
⚠ Price may have changed. Please confirm stock & latest price on WhatsApp.
Enquire on WhatsApp
Gigabyte Z790 AORUS MASTER X Intel LGA 1700 E-ATX Motherboard Supports Intel 12th, 13th & 14th Gen Processors
GIGABYTE Z790 AORUS MASTER X LGA 1700(14th,13th,12th Gen) Intel Z790 X EATX Motherboard with DDR5, 5 M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 7, 10GbE LAN, Q-Flash Plus, EZ-Latch Plus
Key Features
- Supports Intel® Core™ 14th and 13th processors
- Digital direct 20+1+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：PCIe 5.0 x16 slot & M.2 slots with quick release design
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：5*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal：VRM Thermal Armor Fins-Array & M.2 Thermal Guard XL
- Fast Networking：10GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity ：DP, Front USB-C® 10Gb/s, Front & Dual Rear USB-C® 20Gb/s
- DTS:X® Ultra Audio：ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
Performance
Twin Digital VRM design leverages 20 VCORE phases and 105A Power Stage to ensure electrical throughput that can handle 12th, 13th, and 14th Gen Intel Core, Pentium, and Celeron processors as well as extreme overclocking. DDR5 XMP overclocking boosts RAM up to 8266 MHz for enhanced multitasking and rendering performance.
Enhanced Thermal Design
Designed to maintain thermal performance and prevent system throttling and utilizing GIGABYTE‘S VRM Thermal Armor Fins-Array technology, the AORUS MASTER X’s fully covered MOSFET heat sink, M.2 Thermal Guard, 8-layer 2x copper PCB, vent holes, and Smart Fan6 application work together to ensure that onboard components are safe under heavy loads. Smart Fan6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.
Front Panel USB-C Connector
The front and back USB-C 3.2 Gen 2×2 ports provide up to 20 Gb/s throughput while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.
RGB Fusion
With an array of RGB headers, you can use GIGABYTE’s RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room.
Intuitive System Customization
UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile with a reimaged UX, Quick Access function, PerfDrive technology, and BIOS Cooling. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode. You also get access to various modes that unlock the potential of your processor including Optimization, Spec Enhance, Instant 6GHz+, and E-Core Disable modes.
Ultra Durable
Sporting an easy DIY design, the AORUS MASTER X provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch Plus provides quick removal for your graphics card and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor. You also get strong and reliable enhancements including a reinforced PCIe UD Slot X, Memory UD Slot D5, M.2 UD Slot PG5, UD Nanocarbon Backplate, and UD Power Connector.
PCB Crafting
Xtra layers for excellent players
As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities. No gamers should overlook the details lie within the PCB layers.
8-Layer PCB
Enables dense integration, signal quality, power integrity, and low EMI for high-performance systems.
2X Copper EnhancementEnhances system performance with improved heat dissipation, power handling, and seamless overclocking support.
56% Lower Dissipation FactorElevate signal integrity in high-frequency circuits with our pioneering technology, setting a new standard for high-speed electronic design.
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870E |
| Memory | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. ***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in theM2B_CPU connector, both theM2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable. 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back pane CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging) * For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors." - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 3 x USB 3.2 Gen 1 ports on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper (Note) Actual support may vary by CPU. |
| Back Panel Connectors | 1 x HDMI port (Note) 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB Type-C® ports, with USB 3.2 Gen 2 support 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x RJ-45 port 3 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS | 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundle Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Memory Series | DDR5 |
| Motherboard Size | E-ATX |
| Platform | Intel |
| Product Type | Gaming |
| RAM Type | DDR5 |
| Socket | LGA 1700 |
| Warranty | 3 Years |
| Motherboard Series | Ultra Durable |
| Brand | Gigabyte |
| Chipset | Z790 |
| color | Black |
