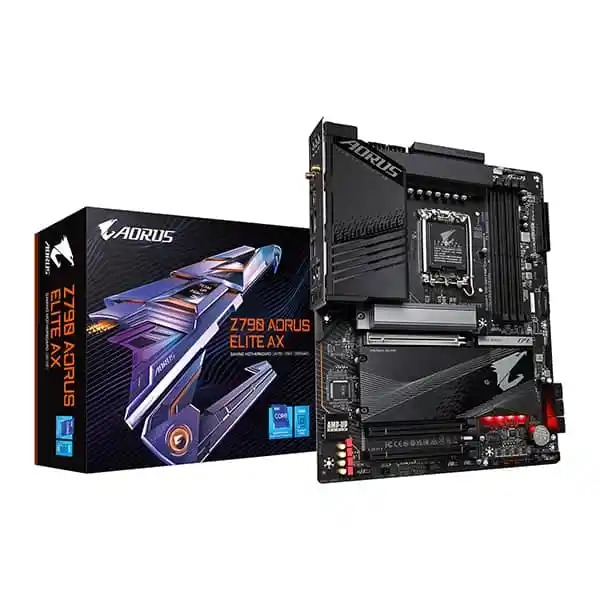

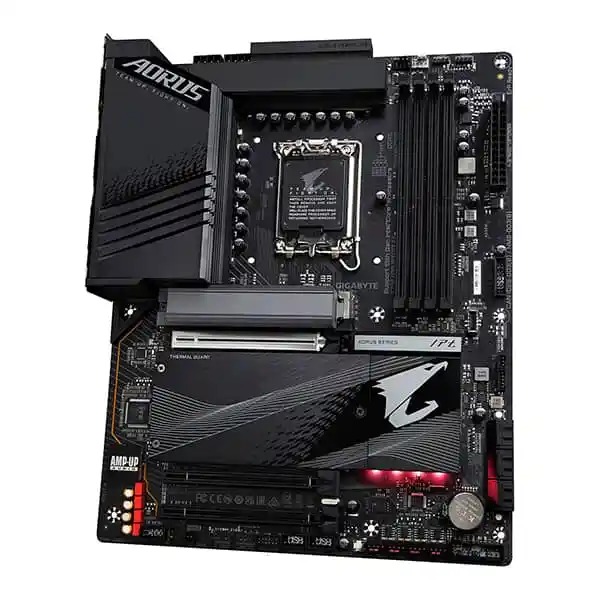

Gigabyte Z790 AORUS ELITE AX DDR5 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹51,000.00.₹26,619.00Current price is: ₹26,619.00. (Inclusive of GST)
- Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors.
- Unparalleled Performance: Twin 16*+1+2 Phases Digital VRM Solution.
- Dual Channel DDR5: 4x SMD DIMMs with XMP 3.0 Memory Module Support.
- Next Generation Storage: 4x PCIe 4.0 x4 M.2 Connectors.
- Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance.
- EZ-Latch Plus: M.2 Connectors with Quick Release & Screw less Design.
- Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
- Extended Connectivity: DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s.
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
In stock
Gigabyte Intel Z790 AORUS ELITE AX DDR5 PCIe 5.0 ATX Motherboard
Feature
Gigabyte AORUS Gaming Motherboard for Intel Raptor Lake
GIGABYTE Z790 AORUS ELITE AX
- Support for 12th and 13th generation Intel Core processors on socket LGA 1700
- Support for DDR5 7600 MHz memory (OC)
- VRM 16+1+2 phases (8+8 parallel)
- PCI-Express 5.0 16x
- Smart Fan 6
- EZ-Latch PLus : Quick lock/unlock of PCIe 5.0 x16 and M.2 (no screws required)
- Wi-Fi 6E and Bluetooth 5.3 + 2.5 GbE LAN
- Q-Flash Plus: Upgrade BIOS without installing CPU, Memory or Graphics Card
ALWAYS HIGHER
The 13th generation Intel Core processors for desktop PCs offer the most complete platform for using the gaming technologies you want. Thunderbolt 4 support offers a quick and easy way to connect peripherals. Push your machine further than the max: Enhanced overclocking on both sets of cores for performance at your level. You can play and stream at the same time, as much as you want.
Unparalleled Performance
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE Z790 AORUS ELITE AX motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Twin Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel’s new generation CPU, GIGABYTE Z790 AORUS ELITE AX motherboard equip the best VRM design ever built with the highest quality components.
Design Ready for PCIe 5.0
PCIe 5.0 Design supports double the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge SSDs and GPUs released in the next few years to their full capability.
DDR5 Overclocking Up to 7600 and Beyond
AORUS is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their Z790 AORUS ELITE AX motherboard.
Triple 7G/s Gen4 M.2 PCIe SSDs in RAID 0
The exclusive 3 PCIe 4.0 M.2 from CPU and 2nd Generation 7000 MB/s SSD provides unparalleled Read/ Write performance up to 21053 and 15499 MB/s.
Outstanding Thermal Design
GIGABYTE Motherboards unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
4X Large Surface
Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-Piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.
Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
M.2 Thermal Guard III
M.2 Thermal Guard III constructed with 9X optimized heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of PCIe 5.0 M.2 SSDs may cause, especially under heavy workload. The special design of heatsink grooves in the direction of CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Connectivity
GIGABYTE Z790 AORUS ELITE AX Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
First Adopter on 2.5GbE LAN Onboard
Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
Connecting the Future – USB 3.2 Gen 2×2 Type-C®
Featuring the USB 3.2 Gen 2×2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
Front USB3.2 Gen 2 Type-C
USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
Audiophile Grade Capacitors (WIMA & Fine Gold)
To ensure a studio-quality experience, WIMA and Fine Gold capacitors are used to provide power to the overall system.
Personalization
GIGABYTE Z790 AORUS ELITE AX motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
RGB Fusion Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Ultra Durable
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slot to make each of them solid and durable.
EZ-Latch
With GIGABYTE EZ-Latch, you can DIY your PC in no time, quick and easy.
Q-Flash Plus
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870E |
| Memory | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. ***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in theM2B_CPU connector, both theM2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable. 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back pane CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging) * For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors." - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 3 x USB 3.2 Gen 1 ports on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper (Note) Actual support may vary by CPU. |
| Back Panel Connectors | 1 x HDMI port (Note) 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB Type-C® ports, with USB 3.2 Gen 2 support 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x RJ-45 port 3 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS | 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundle Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Memory Series | DDR5 |
| Motherboard Size | ATX |
| Platform | Intel |
| Product Type | Gaming |
| RAM Type | DDR5 |
| Socket | LGA 1700 |
| Warranty | 3 Years |
| Motherboard Series | Ultra Durable |
| Brand | Gigabyte |
| Chipset | Z790 |
| color | Black |
