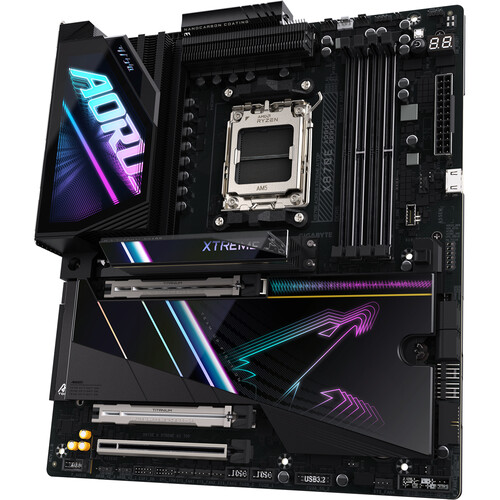

Gigabyte X870E AORUS XTREME AI TOP AM5 E-ATX Motherboard

Name: Buy Gigabyte X870E AORUS XTREME AI TOP AM5 E-ATX Motherboard Green Apple Compunet
SKU: X870E-A-XTREME-AI-TOP
Price: 84889.00 INR
Availability: InStock

RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.

Original price was: ₹132,550.00.Current price is: ₹84,889.00. (Inclusive of GST)

50 People watching this product now!

SKU: X870E-A-XTREME-AI-TOP

Add to compare

Add to wishlist

Gigabyte X870E AORUS XTREME AI TOP AM5 E-ATX Motherboard

Digital Twin VRM Design

This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 9+9 (18) parallel design unlocks the full power of your multi-core CPU while 2 SOC phases are optimized for integrated GPU performance and memory management within the CPU. 2 MISC phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Wi-Fi 7

Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for fast data transfer speeds.Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling fast file transfers and buffer-free streaming.

Wi-Fi 7’s MLO (Multi-Link Operation) technology allows strategic bandwidth allocation – dedicating 2.4 GHz for streaming and 5/6 GHz for gaming, resulting in an interruption-free network experience.

With its deterministic low latency, Wi-Fi 7 minimizes delays, making it the ideal choice for time-sensitive applications, such as video conferencing and competitive online gaming.

Dual 10GbE LAN

Supercharge your online gaming with dual 10GbE RJ45 LAN jacks. With fast speeds, minimal lag, and optimal performance, you’ll be able to elevate your gaming rig for online competition.

I/O Zone AORUS RGB Lighting

Customize your gaming build with immersive AORUS lighting effects with I/O Zone AORUS RGB lighting.

EZ-Latch Designs

PCIe EZ-Latch Plus

Easy ejection with a single slick for graphics cardsM.2 EZ-Latch Click
Tool-less installation for M.2 heat sinkM.2 EZ-Latch Plus
Tool-less installation for M.2 SSDsWi-Fi EZ-Plug
Quick and easy design for Wi-Fi antenna installation

Sensor Panel Link

The built-in video port streamlines the Sensor Panel setup without management concerns.

Ultra Durable Design

Titanium PCIe UD Slot X
PCIe UD Slot
UD Power Connector

Gigabyte Control Center

RGB Fusion

Customize the RGB lighting with precise control over individual LEDs with Gigabyte Control Center.

Specification	Details
CPU	AMD Socket AM5, supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Chipset	AMD X870E
Memory	4 x DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM) Dual channel architecture Supports ECC/non-ECC Un-buffered DIMM Supports AMD EXPO™ and XMP memory modules Memory speeds: Up to 8800 MT/s (OC), 4800 MT/s (JEDEC)
Onboard Graphics	Integrated AMD Radeon™ Graphics 2 x USB4® USB Type-C® ports (DisplayPort, 3840x2160@240 Hz) 1 x HDMI 2.1 port (4096x2160@60 Hz) 1 x Front HDMI 1.4 port (1920x1080@30 Hz)
Audio	Realtek® ALC1220 CODEC ESS ES9118 DAC chip DTS:X® Ultra support High Definition Audio, 2/4/5.1-channel S/PDIF Out support
LAN	2 x Marvell® AQtion AQC113C 10GbE LAN chips Speeds: 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps
Wireless	Wi-Fi 7 (Qualcomm® QCNCM865 or MediaTek MT7927) 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands Bluetooth 5.4 320MHz channel support
Expansion Slots	1 x PCIe x16 slot (PCIEX16): PCIe 5.0 x16 (Ryzen 9000/7000) 1 x PCIe x16 slot (PCIEX8): PCIe 5.0 x8 (Ryzen 9000/7000) 1 x PCIe x16 slot (PCIEX2): PCIe 4.0 x2 (shares bandwidth with M2E_SB)
Storage Interface	CPU: 1 x M.2 (M2A_CPU) - PCIe 5.0 x4/x2 SSDs Chipset: 2 x M.2 (M2D_SB, M2B_SB) - PCIe 4.0 x4/x2 SSDs Chipset: 1 x M.2 (M2E_SB) - PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, 1, 5, 10 for NVMe RAID 0, 1, 10 for SATA
USB Ports	Back Panel: 2 x USB4® Type-C®, 6 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0/1.1 Internal: 1 x USB 3.2 Gen 2x2 Type-C® header, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0/1.1 headers
Internal I/O Connectors	1 x 24-pin ATX main power 2 x 8-pin ATX 12V power 1 x CPU fan header, 1 x CPU fan/water pump header 4 x system fan headers, 4 x system fan/water pump headers 3 x addressable RGB Gen2 headers, 1 x RGB header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 2 x temperature sensor headers 1 x front panel header, 1 x front audio header 1 x USB Type-C® header, 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (front) 1 x TPM header 1 x power button, 1 x reset button Voltage measurement points

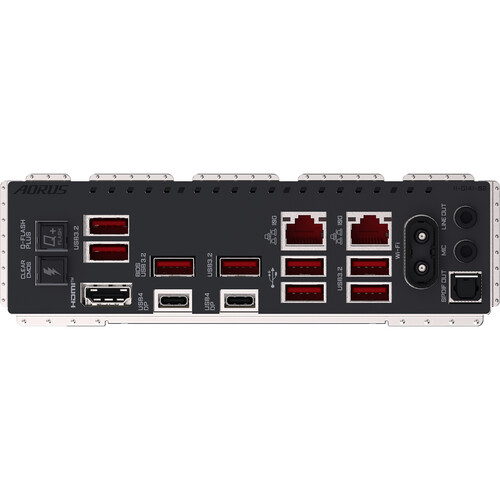

Back Panel Connectors	1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI port 2 x USB4® USB Type-C® ports (DisplayPort) 6 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 2 x antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks
BIOS	1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System	Support for Windows 11 64-bit
Form Factor	E-ATX, 30.5cm x 26.9cm
Unique Features	GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus Smart Backup EZ-Latch design

Weight	2 kg
Brand	Gigabyte
Motherboard Series	Gigabyte AI TOP , Gigabyte Aorus
Motherboard Size	E-ATX
Chipset	X870
Socket	AM5
Memory Series	DDR5
EAN Code	4719331866150
Platform	AMD
Product Type	Gaming
RAM Type	DDR5
Warranty	3 Years
