The UD750GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 450 watts of power to the graphics card.
The UD750GM PG5 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.
Compared with the standard thermal solution, we have enlarged the heatsink and optimized the airflow. The heat dissipation performance is increased, thus prolonging the service life of the components.

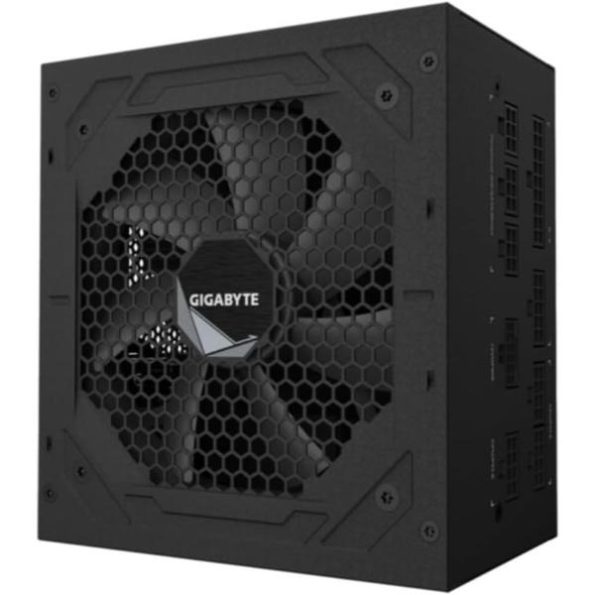

The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
With the help of engineers’ excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

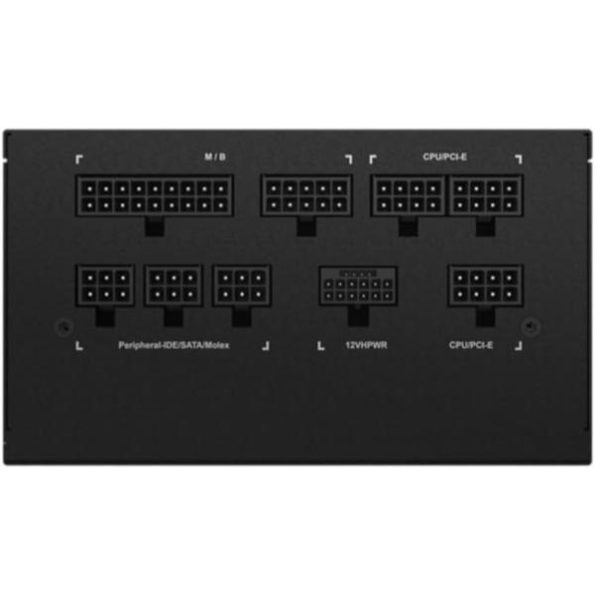

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
The +12V can provide a total of 750W power output. The 16-pin cable (+12VHPWR) can provide up to 450 watts of power to the latest PCIe Gen 5.0 graphics card.

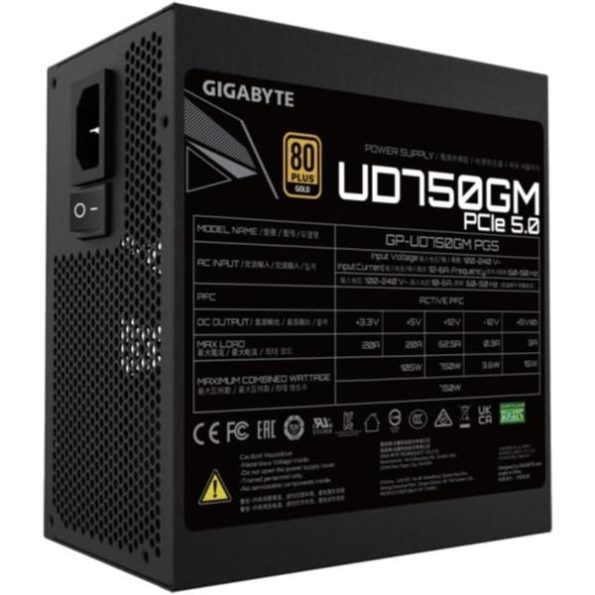

| Model | GP-UD750GM PG5 |
| Type | Intel Form Factor ATX 12V v3.0 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 6‎0-50 Hz |
| Output Capacity | 750W |
| Dimension | 1‎50 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing(HYB)fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
| Warranty | 5 years warranty |
| Note* | Price, feature and specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Brand | Gigabyte |
| color | Black |
| Modular | Fully Modular |
| PSU Certification | Gold |
| Warranty | 5 Years |
| Wattage | 750W |
| EAN Code | 4719331553609 |

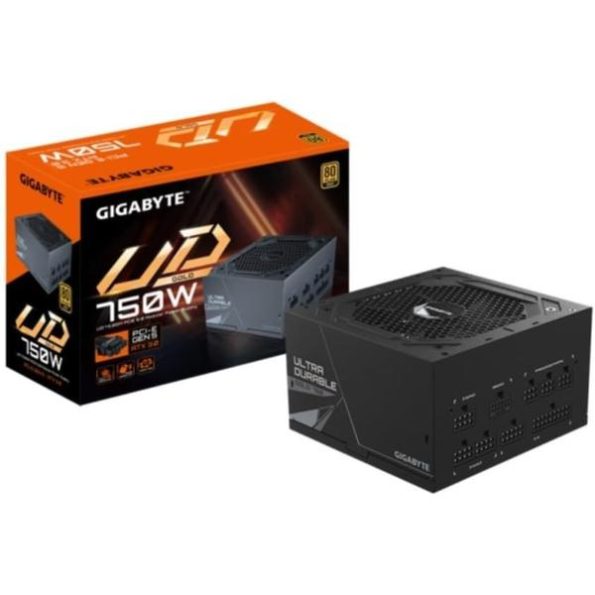

Gigabyte UD750GM PG5 750W 80 Plus Gold Power Supply
