Out of stock
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.
Compared with the standard thermal solution, we have enlarged the heatsink and optimized the airflow. The heat dissipation performance is increased, thus prolonging the service life of the components.
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The double ball bearing fan provides longer and more stable life time.
Leveraging the engineers’ excellent design capabilities, cooling technology and higher-quality materials, GIGABYTE has reduced the length of the power supply to an amazing 160mm compared to traditional design. It can be easily installed in any chassis without space constraints.
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
The +12VHPWR and the +12V can provide a total of 1300W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.
| Model | Gigabyte UD1300GM PG5 |
| Output Capacity | 1300W |
| Efficiency | 80 PLUS Gold (90% at typical load) |
| Fan Type | 140mm Fluid Dynamic Bearing Fan |
| Modularity | Fully Modular |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Warranty | 10 years |
| Certifications | Intel ATX 12V Version 3.0, 80 PLUS Gold |
Or with detailed connectors:
| Specification | Detail |
|---|---|
| Model | Gigabyte UD1300GM PG5 |
| Output Capacity | 1300W |
| Efficiency | 80 PLUS Gold (90% at typical load) |
| Fan Type | 140mm Fluid Dynamic Bearing Fan |
| Connectors |
ATX/MB: 20+4 Pin x 1CPU/EPS: 4+4 Pin x 2 PCI-e: 16 Pin x 1, 6+2 Pin x 8 SATA: x 12 Peripheral: 4 Pin x 6, Floppy x 2 |
| Modularity | Fully Modular |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Warranty | 10 years |
| Weight | 1 kg |
|---|---|
| Brand | Gigabyte |
| color | Black |
| Product Type | Gaming |
| PSU Certification | Gold |
| Warranty | 10 Years |
| Wattage | 1300 W |

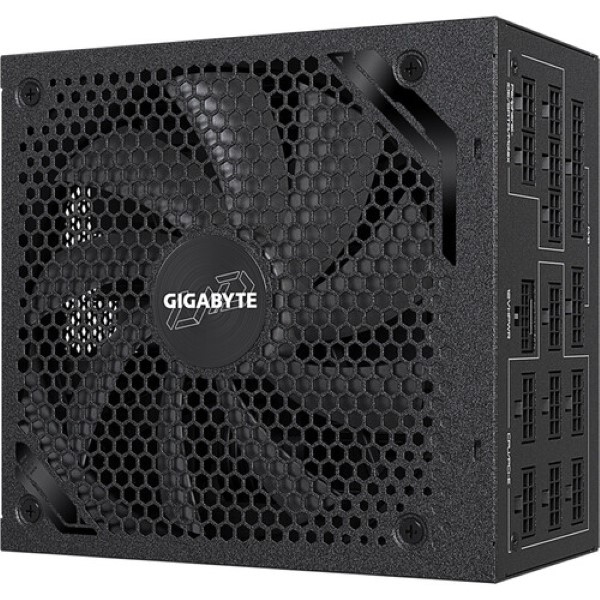

Gigabyte UD1300GM PG5 1300W 80 Plus Gold Power Supply
