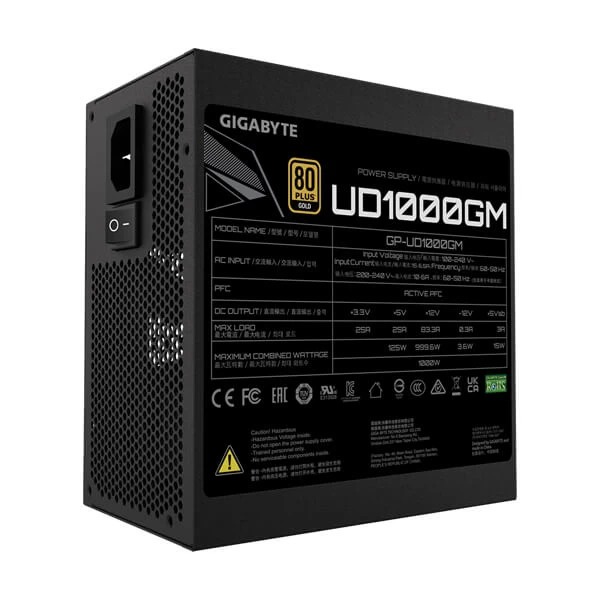

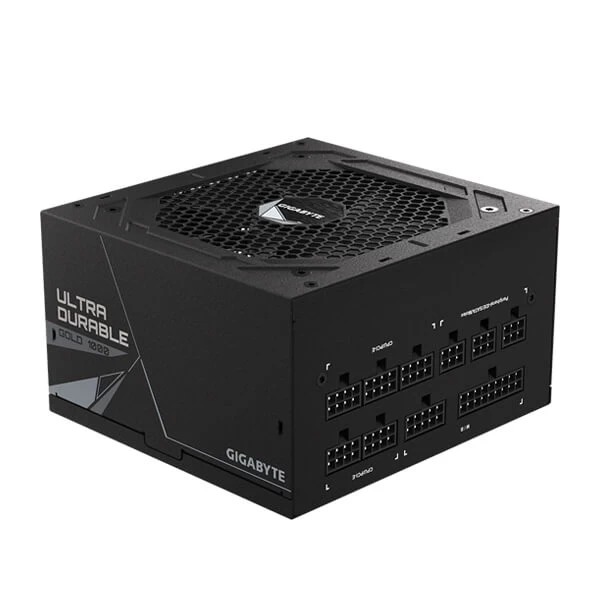

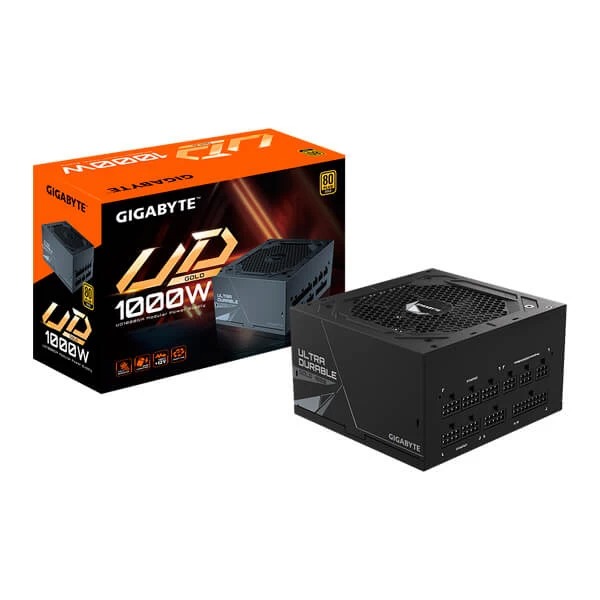

Gigabyte UD1000GM 1000 Watt 80 Plus Gold SMPS

RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.

Original price was: ₹20,000.00.Current price is: ₹10,799.00. (Inclusive of GST)

80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact design

65 People watching this product now!

SKU: GP-UD1000GM

Gigabyte UD1000GM 1000 Watt 80 Plus Gold SMPS

Feature

GIGABYTE Power Supply

KEY FEATURE

Gigabyte Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact design

ULTRA DURABLE

Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

HIGH QUALITY JAPANESE CAPACITORS

The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.

ENHANCED THERMAL SOLUTION

Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

120MM SMART HYDRAULICBEARING (HYB) FAN

The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

PROTECTION

In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

FULLY MODULAR DESIGN

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED

80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

SINGLE +12V RAIL

Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

COMPACT DESIGN

With the help of engineers’ excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.

Model	GP-UD1000GM
Type	Intel Form Factor ATX 12V v2.31
PFC	Active PFC (>0.9 typical)
Input Voltage	100-240 Vac (full range)
Input Current	15-6.5A
Input Frequency	60-50 Hz
Output Capacity	1000W
Dimension	150 x 140 x 86 mm
Fan Type	120mm Hydraulic Bearing(HYB)fan
80 PLUS	Gold
Efficiency	90% at typical load
MTBF	>100,000 hours
Protection	OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal	100-150ms
Hold Up Time	>16ms
Cable Type	Flat, All black
Connectors	ATX/MB 20+4 Pin x 1 : 610mm1 CPU/EPS 4+4 Pin x 2 : 600mm2 PCI-e 6+2 Pin x 6 : 600mm+150mm3 SATA x 8 : 600mm+150mm+150mm+150mm2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
Warranty	10 Years
Note	*** Features, Price, Specifications are subject to change without notice.
