Gigabyte RTX 5060 WINDFORCE MAX OC 8G
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
FEATURES
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTXâ„¢ 5060
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- Gigabyte RTX 5060 WINDFORCE MAX OC 8G Reinforced structure
CORE CLOCK
2512 MHz (Reference card : 2497MHz)



SPECIFICATIONS
Graphics Processing | GeForce RTXâ„¢ 5060 |
Core Clock | 2512 MHz (Reference: 2497 MHz) |
CUDA® Cores | 3840 |
Memory Clock | 28 Gbps |
Memory Size | 8 GB |
Memory Type | GDDR7 |
Memory Bus | 128-bit |
Card Bus | PCI-E 5.0 |
Digital Max Resolution | 7680×4320 |
Multi-view | 4 Displays |
Card Size | L=199 mm, W=116 mm, H=40 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | 4.6 |
Recommended PSU | 550W |
Power Connectors | 8-Pin ×1 |

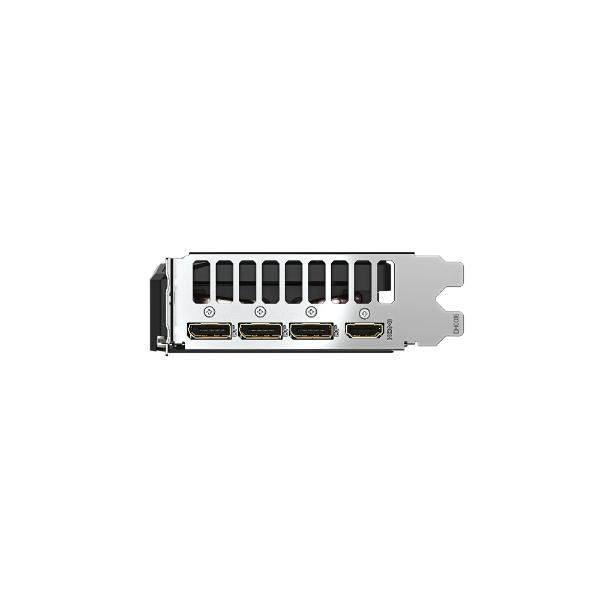

Output Ports | 3× DisplayPort 2.1b1× HDMI 2.1b |
Accessories | Quick Guide |
Weight | 1 kg |
---|---|
Brand | Gigabyte |
GPU Chipset | NVIDIA Geforce |
GPU Memory Size | 8GB |
GPU Series | RTX 50 Series |
Memory Series | GDDR6 |
Warranty | 3 Years |
