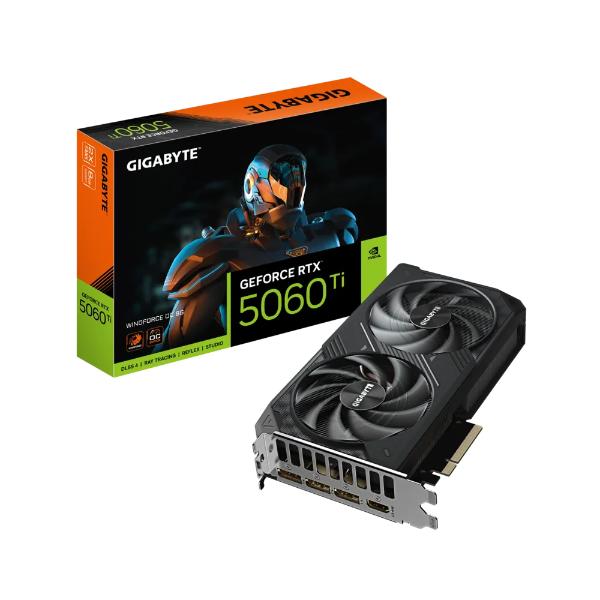

Gigabyte RTX 5060 Ti WINDFORCE OC 8G
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTXâ„¢ 5060 Ti
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- Reinforced structure
CORE CLOCK
2587 MHz (Reference card :2572 MHz)
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
GIGABYTEÂ CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
SPECIFICATIONS
Category | Details |
---|---|
Graphics Processing | GeForce RTXâ„¢ 5060 Ti |
Core Clock | 2587 MHz (Reference card: 2572 MHz) |
CUDA® Cores | TBD |
Memory Clock | 28 Gbps |
Memory Size | 8 GB |
Memory Type | GDDR7 |
Memory Bus | 128 bit |
Card Bus | PCI-E 5.0 |
Digital Max Resolution | 7680x4320 |
Multi-view | 4 |
Card Size | L=208 W=120 H=40 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | 4.6 |
Recommended PSU | 650W |
Power Connectors | 8 Pin ×1 |

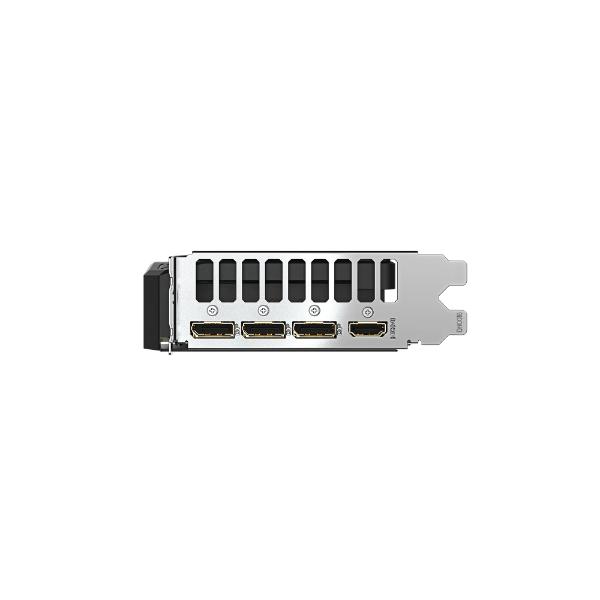

Output | DisplayPort 2.1b ×3, HDMI 2.1b ×1 |
Accessories | Quick Guide |
Weight | 1 kg |
---|---|
Brand | Gigabyte |
Product Type | Normal |
color | Black |
GPU Series | RTX 50 Series |
GPU Chipset | NVIDIA Geforce |
GPU Memory Size | 8GB |
Memory Series | GDDR7 |
Warranty | 3 Years |
