Gigabyte P750GM 80 Plus Gold SMPS MODULAR
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
₹9,999.00 Original price was: ₹9,999.00.₹7,389.00Current price is: ₹7,389.00. (Inclusive of GST)
- 80 PLUS Gold certified
- Fully modular design
- 120mm Smart Hydraulic Bearing (HYB) Fan
- Japanese capacitors
- Powerful single +12V rail

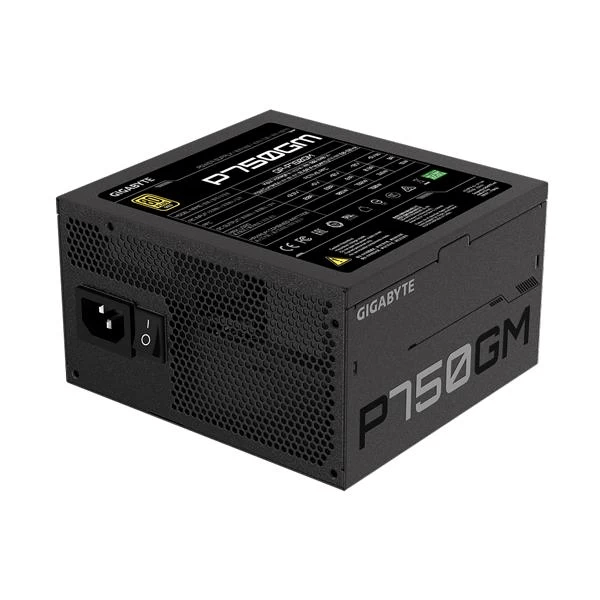

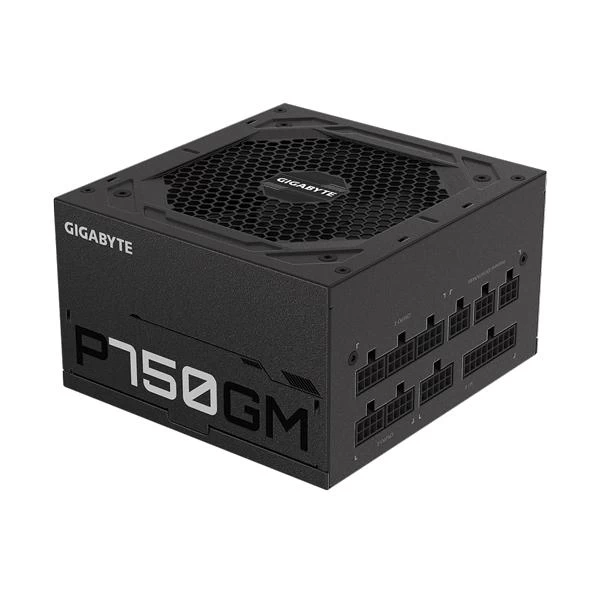

Gigabyte P750GM 80 Plus Gold SMPS MODULAR
Feature
80 PLUS GOLD CERTIFIED
P750GM 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
HIGH-QUALITY JAPANESE CAPACITORS
P750GM has the main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

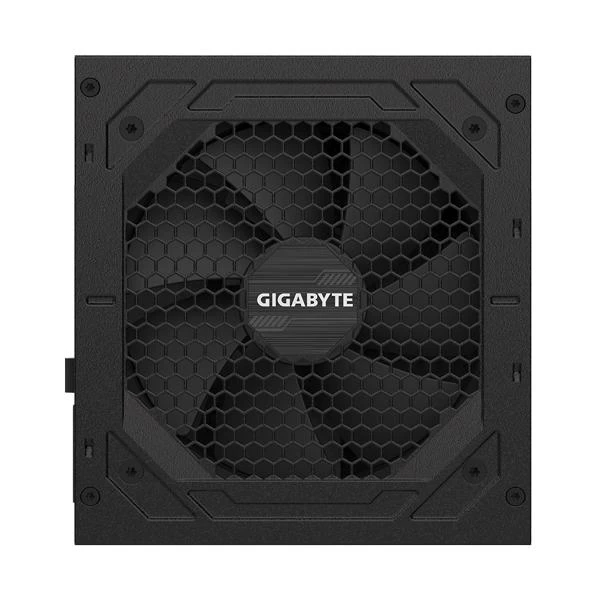

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
| Gigabyte GP-P750GM 80 Plus Gold Modular PSU Specifications | |
|---|---|
| General Specifications | |
| Model Number | GP-P750GM |
| Form Factor | ATX12V v2.52, EPS 2.92 |
| Total Power Output | 750W |
| Efficiency Certification | 80 PLUS Gold, Cybenetics Platinum (89-91%) |
| Modular Design | Fully Modular |
| Input Voltage Range | 100-240 Vac (Full Range) |
| Input Frequency | 50-60 Hz |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Operating Temperature | 0°C to 40°C (Continuous Full Load) |
| MTBF | >100,000 hours |
| Warranty Period | 5 Years |
| Physical Specifications | |
| Dimensions (W × H × D) | 150 × 86 × 140 mm |
| Weight | 1.35 kg (2.98 lb) |
| Cooling Fan | 120mm (Rifle Bearing, marketed as Hydraulic Bearing) |
| Power Output Specifications | |
| +12V Rail | 61A (732W) |
| +5V Rail | 20A |
| +3.3V Rail | 20A (Combined 105W with +5V) |
| +5VSB Standby | 3A (15W) |
| -12V Rail | 0.3A (3.6W) |
| Protection Features | |
| Overload Protection | OVP, UVP, OPP, OCP (+12V), OTP, SCP |
| Advanced Protection | Surge Protection, Inrush Current Protection |
| Safety Standards | CE, FCC, TÜV, UL, CCC, BSMI, EAC, RCM |

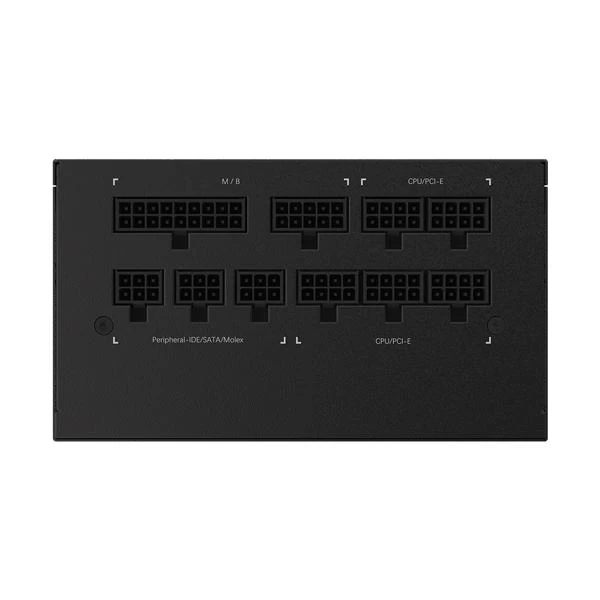

| Cable Configuration | |
| ATX 20+4 Pin | 1 cable (600mm) |
| EPS 4+4 Pin | 2 cables (600mm each) |
| PCIe 6+2 Pin | 2 cables, 4 connectors total (600mm + 150mm) |
| SATA Power | 2 cables, 8 connectors total (600mm + 150mm + 150mm + 150mm) |
| 4-Pin Molex | 1 cable, 3 connectors (500mm + 110mm + 110mm) |
| Floppy (FDD) Adapter | 1 connector (from Molex cable, +150mm) |
| Weight | 1 kg |
|---|---|
| Brand |
Gigabyte |
| color |
Black |
| Product Type |
Gaming |
| PSU Certification |
Gold |
| Warranty |
10 Years |
| Wattage |
750W |
| EAN Code |
4719331551070 |
