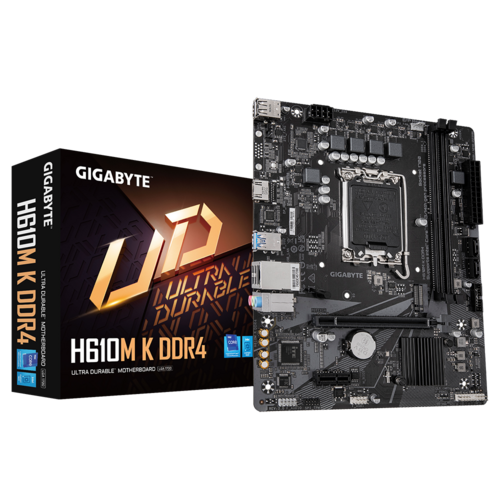

Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Green Apple Compunet

Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors

Sale!58%
  • Supports Intel® Coreâ„¢ 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​
  • GbE LAN with Bandwidth Management​
  • NVMe PCIe 3.0 x4 M.2​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​
  • GIGABYTE APP Center, Simple and Easy Use​
  • Anti-Sulfur Resistors Design​
Original price was: ₹14,400.00.Current price is: ₹6,099.00. (Inclusive of GST)
Need Help? Contact Us
  Delivery & Return

Shipping Policy

Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed. Shipping Partners : FedEx, Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Green Apple Compunet DOES NOT Have any Control over Operations of Shipping Partners. Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays. Loss or damage occured during shipping is Green Apple Compunet Responsibility. You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package. You must notify Green Apple Compunet of damaged or missing items from your order within 24-hours of receiving your package.

 Get it by  Sep 05 Sep 09
SKU: H610M K
Categories:,
Tags:, ,
Brand: Gigabyte
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Reviews (0)
Q & A

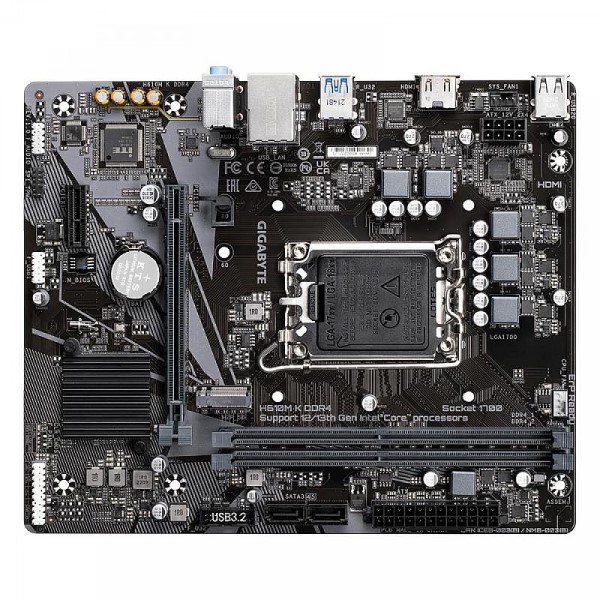

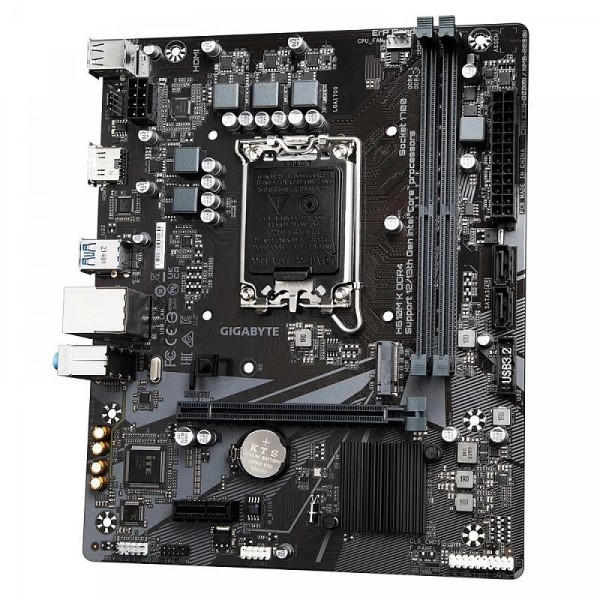

GIGABYTE H610M K DDR4 (rev. 1.0) Micro ATX Motherboard ( Intel LGA1700 Socket, Support 13th ,12th Generation Intel Core, Pentium Gold And Celeron Processors, 2 x DDR4 RAM Slots, Max 64GB)

H610M K DDR4 (rev. 2.0) - Motherboard

Single 32GB Support

Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Green Apple Compunet

The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.

PCIe 3.0 M.2 Slot

Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Green Apple Compunet
Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Green Apple Compunet

Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Green Apple Compunet

  • • Deactivate all E-Core
  • • Zero compromise on gaming performance
  • • Up to 20% lower CPU package power
  • • Up to 5°C lower CPU temperature

Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Green Apple Compunet

Max Performance

Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Green Apple Compunet

  • • Activate all P-Core and E-Core
  • • Maximize full multi-cores performance

Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Green Apple Compunet

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Solid Pin Power Connectors

H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan

Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Green Apple Compunet

Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Green Apple Compunet

START SULFURIZATION PROTECTION

Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Green Apple CompunetSulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.

SPECIFICATIONS

Brand Gigabyte
Model H610M K DDR4
CPU
  1. LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  2. L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.
Chipset Intel® H610 Express Chipset
Memory
  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots

CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface

Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  2. 2 x SATA 6Gb/s connectors
USB

Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x M.2 Socket 3 connector
  6. 2 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.2 Gen 1 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  12. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x HDMI port
  2. 2 x USB 3.2 Gen 1 ports
  3. 4 x USB 2.0/1.1 ports
  4. 1 x RJ-45 port
  5. 3 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Warranty 3 Years Manufacturer’s Warranty
Country Of Origin China
Manufacturer Gigabyte Technology (India) Private Limited B-Wing, 807 & 808, Naman MidTown Elphinstone Road, Mumbai 400013 Email: [email protected] Tel: +91 0 22 40633222
Importer WPG C&C Computers And Peripheral(I) Pvt.Ltd Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III, New Delhi-110020
Net Quantity 1
Note *** Features, Price, Specifications are subject to change without notice.
Brand

Gigabyte
Product Type

Normal
Motherboard Size

mATX
Motherboard Series

Ultra Durable
Socket

LGA 1700
Chipset

H610
RAM Type

DDR4
Warranty

3 Years
color

Black
Platform

Intel
Memory Series

DDR4

Reviews

There are no reviews yet

Add a review
You must be logged in to post a review Log In

Q & A

Ask a question
Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
Your question
* Question is required
Name
* Name is required
There are no questions yet
Related Products
Asus EX-B760M-V5 D4 Motherboard
Quick View
Sale!34%
Asus EX-B760M-V5 D4 Motherboard
Original price was: ₹15,500.00.Current price is: ₹10,300.00. (Inclusive of GST)
SKU: EX-B760M-V5-D4
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Read more

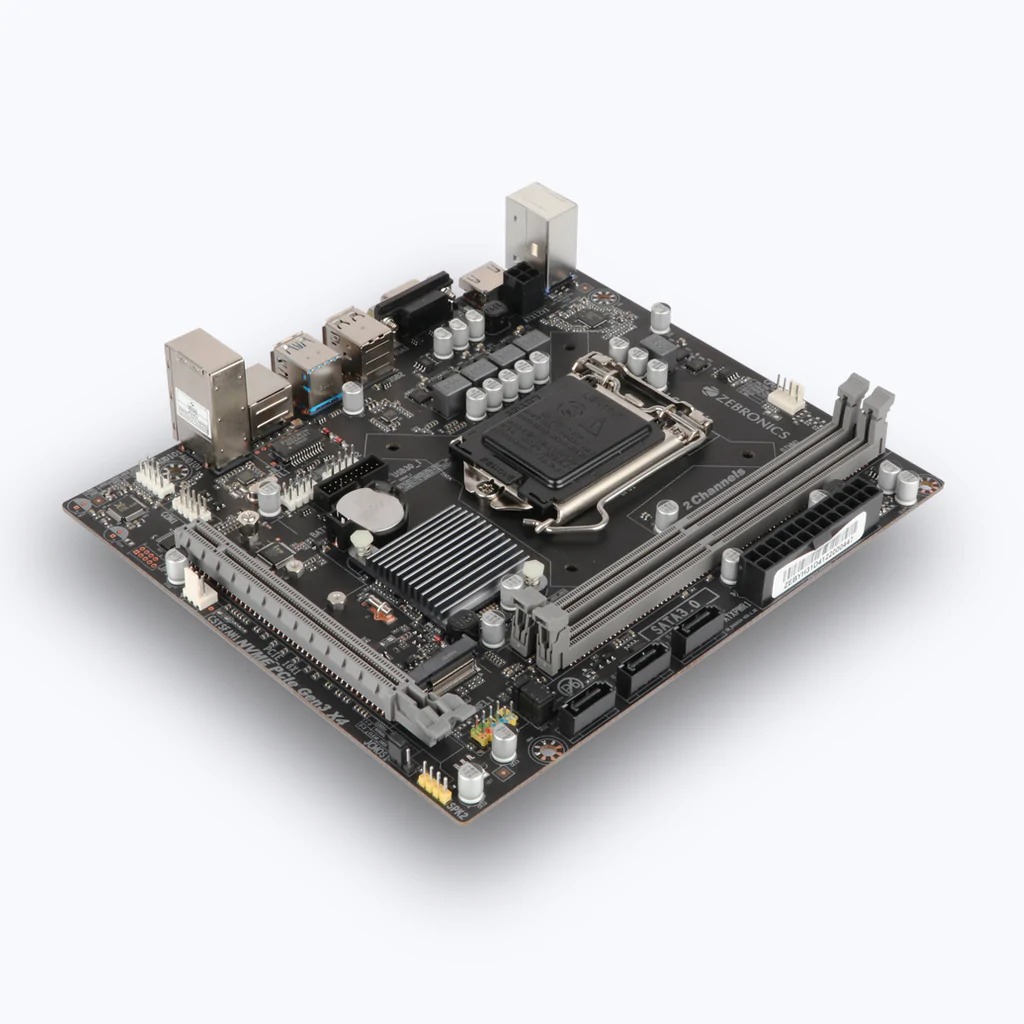

ZEBRONICS ZEB-H61M2 with PCIE M.2 / NVMe Slot (LGA 1155 Socket) Motherboard (Black)
Quick View
Sale!75%
ZEBRONICS ZEB-H61M2 with PCIE M.2 / NVMe Slot (LGA 1155 Socket) Motherboard (Black)
Original price was: ₹4,990.00.Current price is: ₹1,250.00. (Inclusive of GST)
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Read more
Gigabyte H510M H V2 Motherboard
Quick View
Sale!45%
Gigabyte H510M H V2 Motherboard
Original price was: ₹10,440.00.Current price is: ₹5,749.00. (Inclusive of GST)
SKU: H510M-H-V2
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Add to cart
Zebronics ZEB-G41-D3 Socket 775 Motherboard
Quick View
Sale!60%
Zebronics ZEB-G41-D3 Socket 775 Motherboard
Original price was: ₹4,500.00.Current price is: ₹1,800.00. (Inclusive of GST)
SKU: Zeb-G41-D3S
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Read more
ASRock A620M-HDV/M.2 Motherboard
Quick View
Sale!32%
ASRock A620M-HDV/M.2 Motherboard
Original price was: ₹13,000.00.Current price is: ₹8,800.00. (Inclusive of GST)
SKU: A620M-HDV-M.2
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Read more
ASRock A520M-HVS AM4 AMD Micro ATX AMD Motherboard
Quick View
Sale!27%
ASRock A520M-HVS AM4 AMD Micro ATX AMD Motherboard
Original price was: ₹7,500.00.Current price is: ₹5,500.00. (Inclusive of GST)
SKU: A520M-HVS
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Read more
Gigabyte A620M S2H Motherboard
Quick View
Sale!64%
Gigabyte A620M S2H Motherboard
Original price was: ₹19,320.00.Current price is: ₹6,999.00. (Inclusive of GST)
SKU: A620M-S2H
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Read more

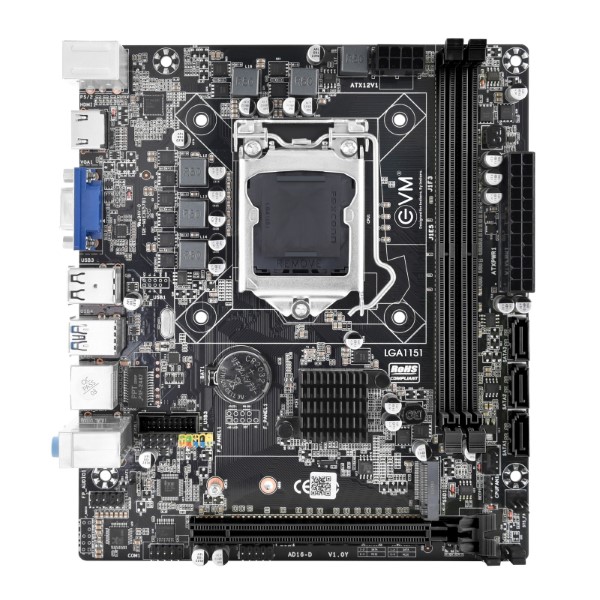

EVM EVMH310 DDR4 Motherboard With Nvme Slot
