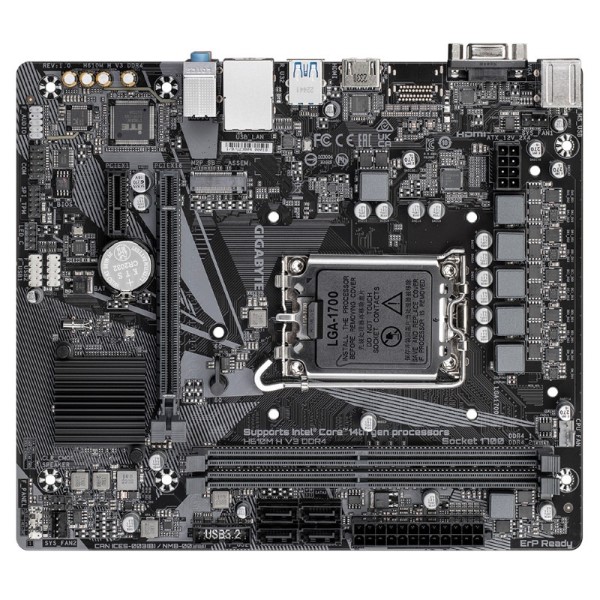

Gigabyte H610M H V3 DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹15,200.00.₹6,249.00Current price is: ₹6,249.00. (Inclusive of GST)
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Gigabyte H610M H V3 DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
4+1+1 Phases Hybrid Power Design
- 4+1+1 Phases Low RDS(on) MOSFETs
- Solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.
Single 32GB Support
M.2 Slot
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
PCIE 4.0 Ready
GIGABYTE H610M S2H Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices.
Intel GbE LAN
Intel GbE LAN features cFos Speed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet.
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new “CPU Upgrade” in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
Hi-Fi Audio
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
GIGABYTE System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.
| Model | GIGABYTE H610M H Motherboard |
| CPU Socket | LGA 1700 |
| CPU Support | Intel 13th Gen, 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel H610 |
| Memory | 2 x DIMM, Max. 64GB, Supports DDR4 3200 ECC and non-ECC, un-buffered memory Dual Channel Memory Architecture Supports Extreme Memory Profile (XMP) |
| On-Board Graphics support | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI 2.1 port, supporting a maximum resolution of 4096x2106@60 Hz |
| Expansion Slot | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slots |
| Ethernet | 1 x Intel GbE Ethernet |
| Storage | 1 x M.2 connector 4 x SATA 6Gb/s connectors |
| Audio | Realtek Audio CODEC High-Definition Audio 2/4/5.1/7.1-channel |
| USB Ports | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |

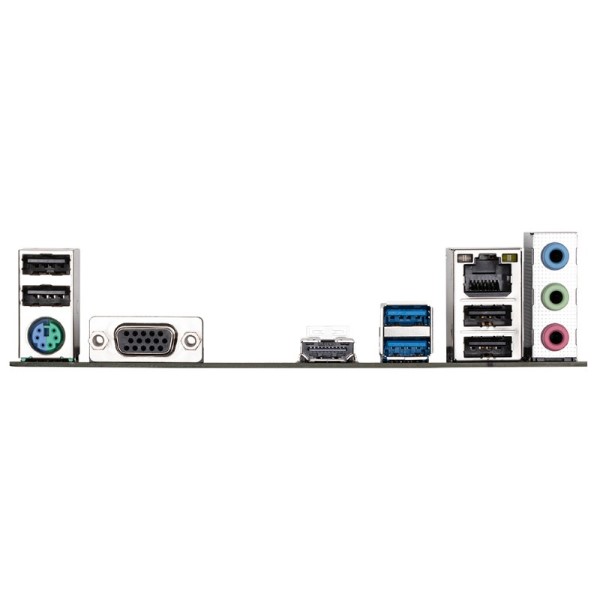

| Back Panel I/O Ports | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI 2.0 port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip headers 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header 1 x serial port header 1 x Clear CMOS jumper |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 23 cm x 21.5 cm Micro-ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
| Weight | 2 kg |
|---|---|
| Brand |
Gigabyte |
| Chipset |
H610 |
| Motherboard Size |
mATX |
| Platform |
Intel |
| Product Type |
Gaming |
| RAM Type |
DDR4 |
| Socket |
LGA 1700 |
| Warranty |
3 Years |
| Motherboard Series |
Gigabyte Ultra Durable |
