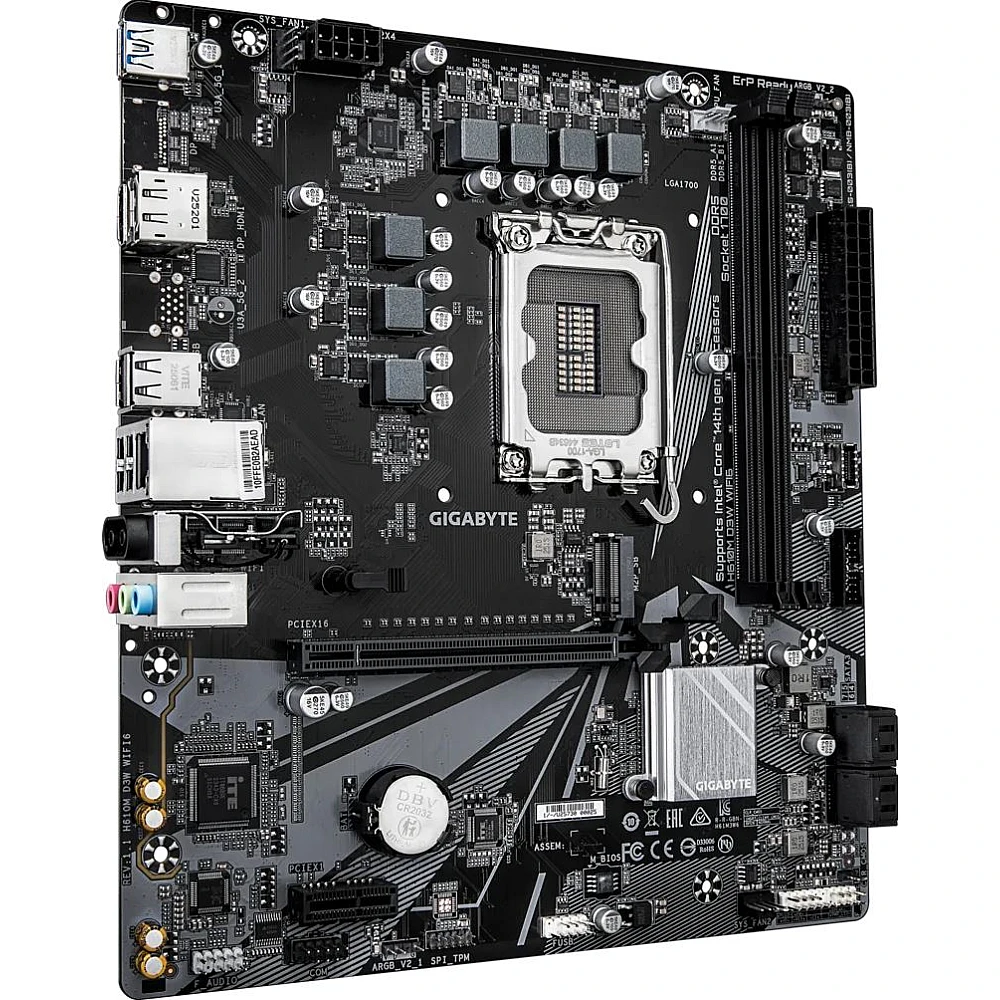

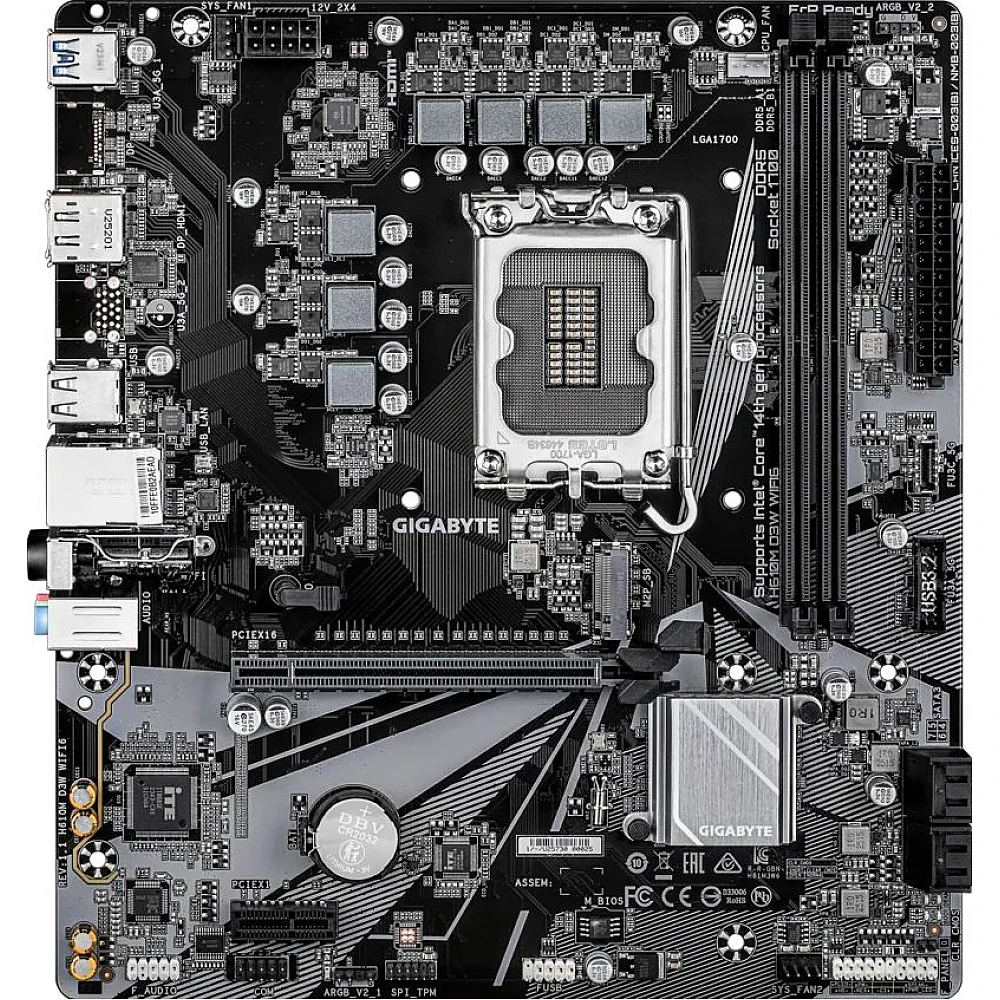

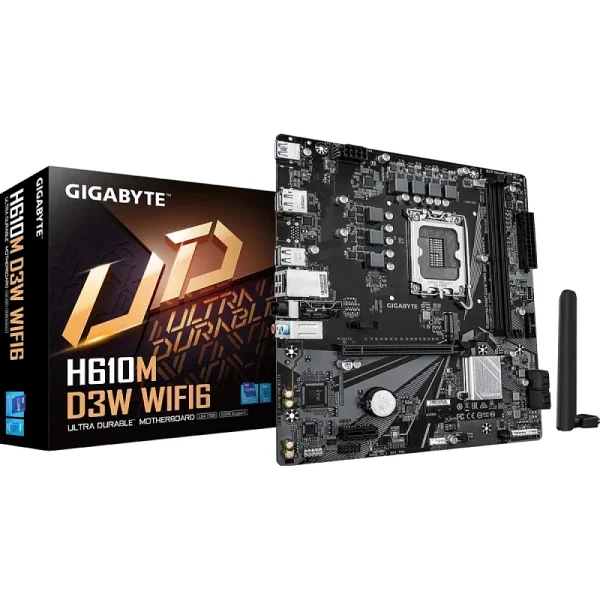

Gigabyte H610M D3W WIFI6 Motherboard For Intel 14th, 13th & 12th Gen Processors – LGA1700 Socket
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹16,500.00.₹7,309.00Current price is: ₹7,309.00. (Inclusive of GST)
- Supports Intel® Core™ 14th/ 13th/ 12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 5+1+1 Hybrid Digital VRM Design
- Fast Networks： Wi-Fi 6 802.11ax, GbE LAN
- NVMe PCIe 3.0 x4 M.2
83
People watching this product now!
⚠ Price may have changed. Please confirm stock & latest price on WhatsApp.
Enquire on WhatsApp
Gigabyte H610M D3W WIFI6 Motherboard For Intel 14th, 13th & 12th Gen Processors – LGA1700 Socket
Based on theIntel H610 Express chipset, the Gigabyte H610M D3W DDR4 motherboard will serve as the foundation for your gaming PC with a high-performance processor and exclusive Gigabyte features like Smart Fan 6. It supports 12th, 13th and 14th generation Intel Core processors, PCI-Express 4.0 16x graphics cards, SATA 6 Gbps and M.2 PCIe 3.0 storage media, DDR4 RAM and USB 3.0 peripherals.
Gigabyte H610M D3W DDR4
- Support for 12th, 13th and 14th generation Intel Core processors on socket LGA 1700
- DDR4 3200 MHz memory support
- 5+1+1-phase hybrid digital VRM
- PCI-Express 4.0 16x
- 1x M.2 PCIe 3.0 4x
- Intel 1 GbE LAN
Spectacular performance
The 12th, 13th and 14th generation Intel Core processors are a minor revolution in the world of x86 architectures, being the first to incorporate a hybrid architecture. This involves combining two different types of core on the same chip. The first, called Performance-Cores, are dedicated to performance in games and resource-hungry mono-threaded applications. The second, called Efficient-Cores, are particularly effective for multitasking and processing ancillary tasks. The 2 combined deliver spectacular performance and incredible responsiveness for your system.
| Brand | Gigabyte |
| Model | H610M D3W WIFI6 |
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel® H610 Express Chipset |
| Memory | 14th and 13th Generation Intel® Core™ i9/i7 Processors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details. |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors |
| USB | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper |

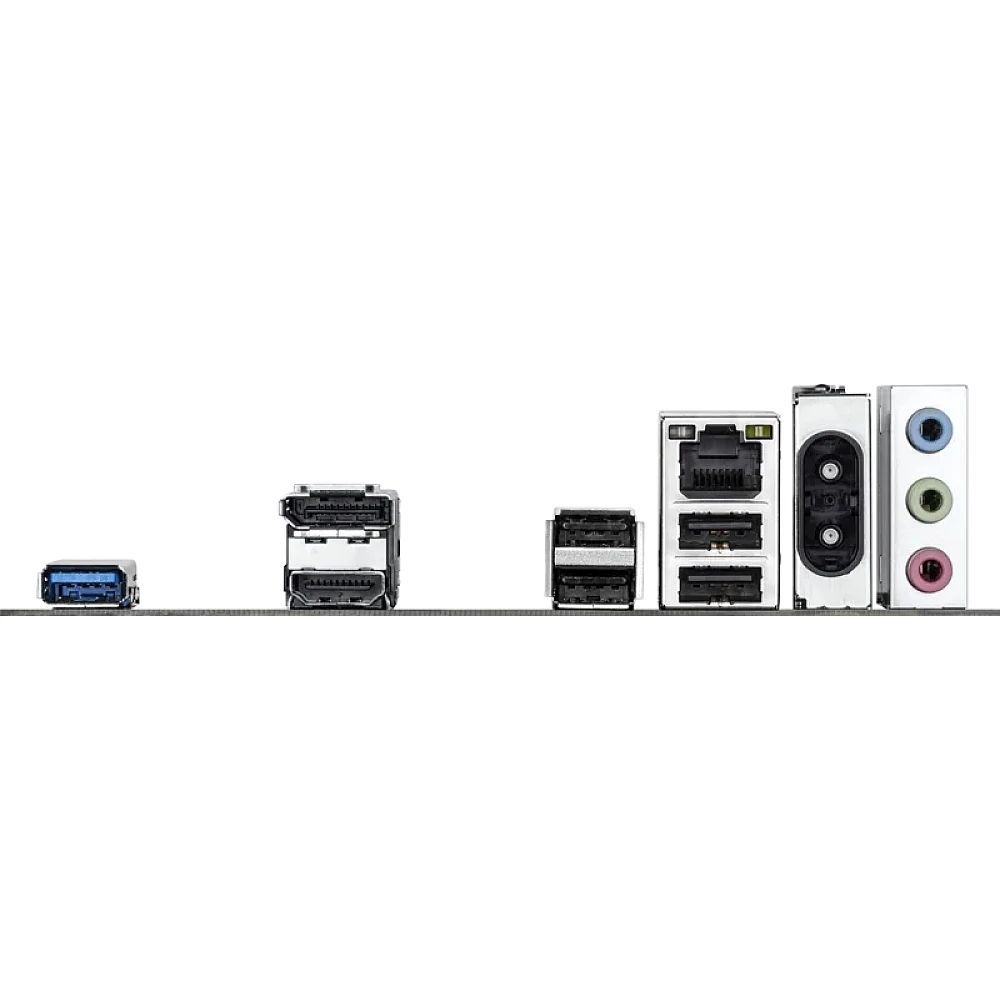

| Back Panel Connectors | 1 x DisplayPort* 1 x HDMI port* 1 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks* Actual support may vary by CPU. |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring |
|
| BIOS |
|
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.0cm |
| Warranty | 3 Years Manufacturer's Warranty |
| Country Of Origin | China |
| Manufacturer | Gigabyte Technology (India) Private Limited B-Wing, 807 & 808, Naman MidTown Elphinstone Road, Mumbai 400013 Email: [email protected] Tel: +91 0 22 40633222 |
| Importer | WPG C&C Computers And Peripheral(I) Pvt.Ltd Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III, New Delhi-110020 |
| Net Quantity | 1 |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 2 kg |
|---|---|
| Brand |
Gigabyte |
| Socket |
LGA 1700 |
| Chipset |
H610 |
| Motherboard Series |
Gigabyte Ultra Durable |
| Motherboard Size |
mATX |
| Platform |
Intel |
| RAM Type |
DDR5 |
| Warranty |
3 Years |
