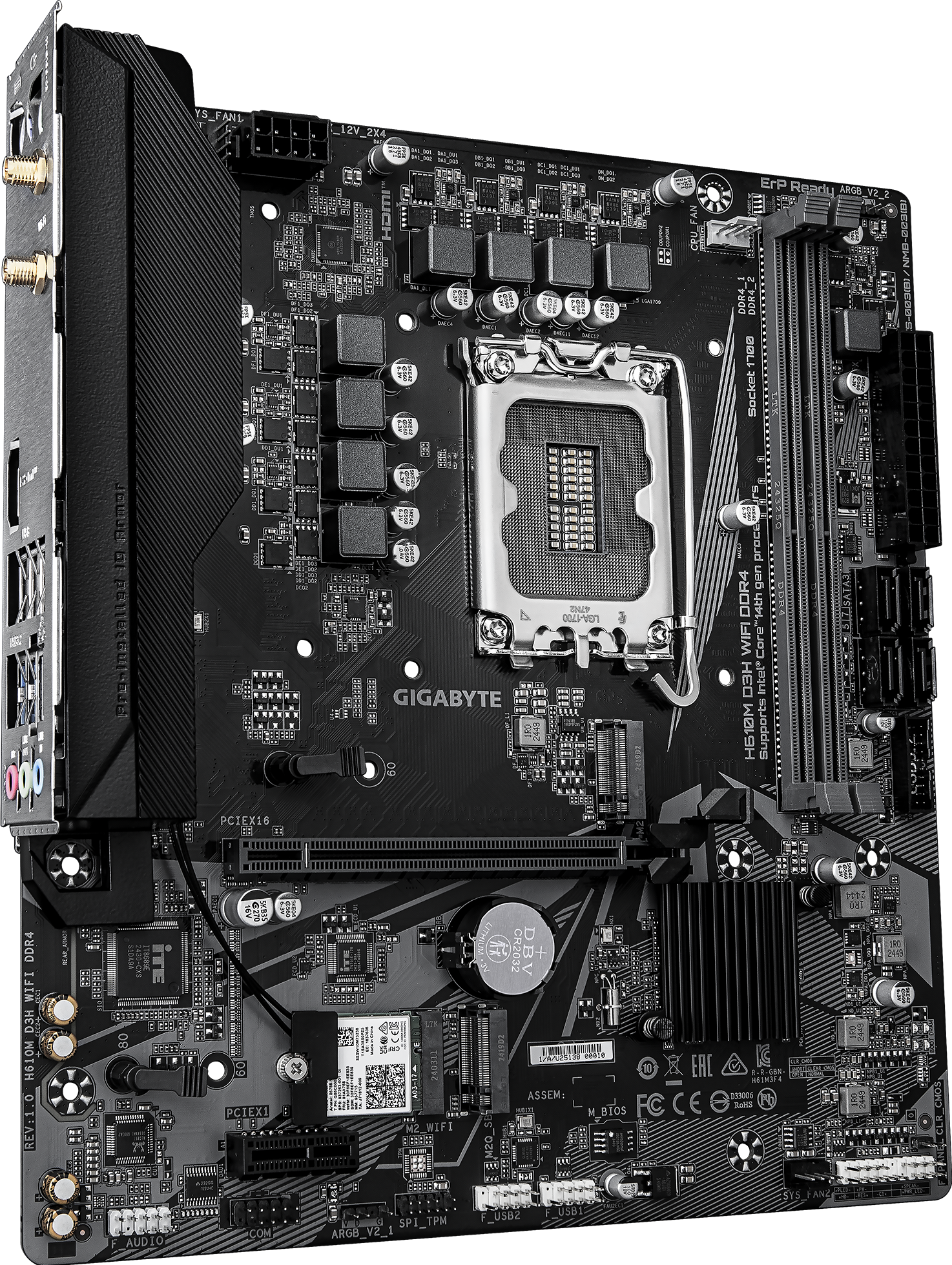

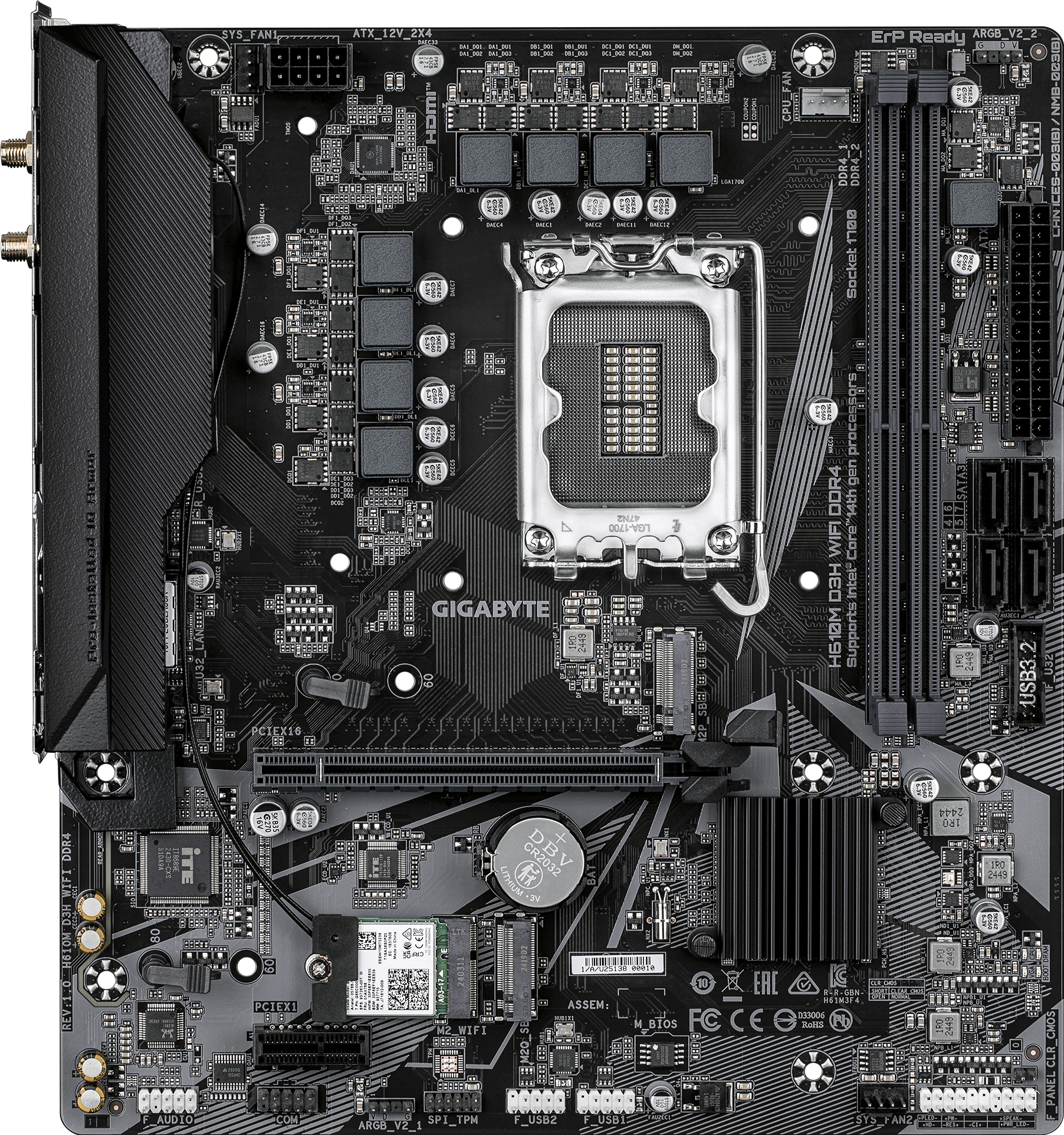

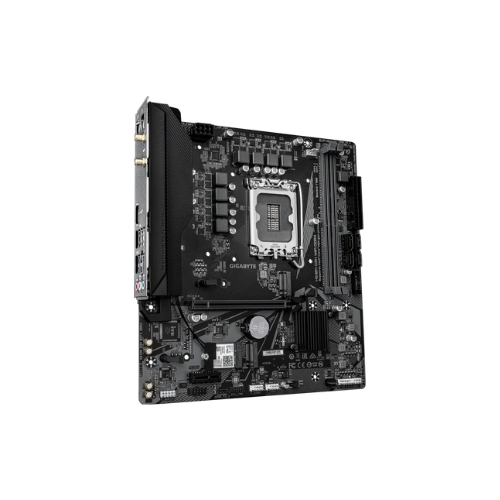

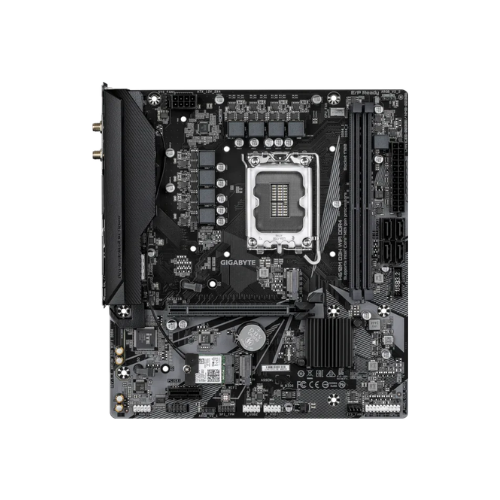

Gigabyte H610M D3H WIFI DDR4 Intel LGA1700 Micro-ATX Motherboard
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹12,599.00.₹8,819.00Current price is: ₹8,819.00. (Inclusive of GST)
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 6+1+1 Hybrid Digital VRM Design
- Fast Networks：Wi-Fi 802.11ac & GbE LAN
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
In stock
Gigabyte H610M D3H WIFI DDR4 Intel LGA1700 Micro-ATX Motherboard
Upgrade your PC with the Gigabyte H610M D3H WIFI DDR4, a feature-rich Micro-ATX motherboard designed to support Intel® 12th, 13th, and 14th Generation Core™ processors on the LGA1700 socket. Built on the reliable Intel® H610 chipset, this motherboard delivers excellent stability, performance, and connectivity for everyday computing, office work, content creation, and entry-level gaming.
Equipped with DDR4 memory support, the H610M D3H WIFI DDR4 offers a cost-effective platform for users who want high performance without upgrading to DDR5. With support for high-speed memory modules, multitasking becomes smoother and more responsive.
The motherboard features integrated Wi-Fi connectivity, allowing users to connect to wireless networks without requiring an additional adapter. Combined with high-speed Ethernet networking, it ensures stable and reliable internet access for gaming, streaming, online meetings, and downloads.
For storage expansion, the board includes M.2 NVMe SSD support and multiple SATA ports, enabling fast boot times, rapid file transfers, and ample storage options. PCIe expansion slots provide flexibility for graphics cards, capture cards, and other add-on devices.
| Specification | Details |
|---|---|
| Brand | Gigabyte |
| Model | H610M D3H WIFI DDR4 |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 cm × 22.0 cm |
| CPU Socket | LGA1700 |
| Processor Support | Intel® Core™ 14th, 13th & 12th Gen Processors, Pentium® Gold, Celeron® |
| Chipset | Intel® H610 Express Chipset |
| Memory Type | DDR4 |
| Memory Slots | 2 × DDR4 DIMM |
| Maximum Memory | Up to 64GB |
| Memory Speeds | DDR4 3200/3000/2933/2666/2400/2133 MHz |
| Memory Architecture | Dual Channel |
| XMP Support | Yes |
| ECC Support | ECC Unbuffered DIMM (Non-ECC Mode) |
| Integrated Graphics | Intel® HD Graphics Support (CPU Dependent) |
| Video Output | 1 × HDMI 2.1 |
| Maximum Resolution | 4096 × 2160 @ 60Hz (4K) |
| Audio Codec | Realtek® High Definition Audio |
| Audio Channels | 2 / 4 / 5.1 / 7.1 Channel |
| LAN | Realtek® Gigabit Ethernet (10/100/1000 Mbps) |
| Wi-Fi | Intel® Wireless-AC 9560 |
| Wireless Standards | 802.11 a/b/g/n/ac |
| Dual Band Support | 2.4GHz & 5GHz |
| Bluetooth | Bluetooth® 5.1 |
| PCIe x16 Slot | 1 × PCIe 4.0 x16 |
| PCIe x1 Slot | 1 × PCIe 3.0 x1 |
| M.2 Slots | 2 × M.2 NVMe PCIe 3.0 |
| SATA Ports | 4 × SATA 6Gb/s |
| USB 3.2 Gen 1 | 4 Ports (2 Rear + 2 Internal) |
| USB 2.0 | 8 Ports (4 Rear + 4 Internal) |
| RGB Headers | 2 × Addressable RGB Gen2 Headers |
| CPU Fan Header | 1 |
| System Fan Headers | 2 |
| Front Audio Header | 1 |
| USB 3.2 Header | 1 |
| USB 2.0 Headers | 2 |
| TPM Header | 1 |
| Serial Port Header | 1 |

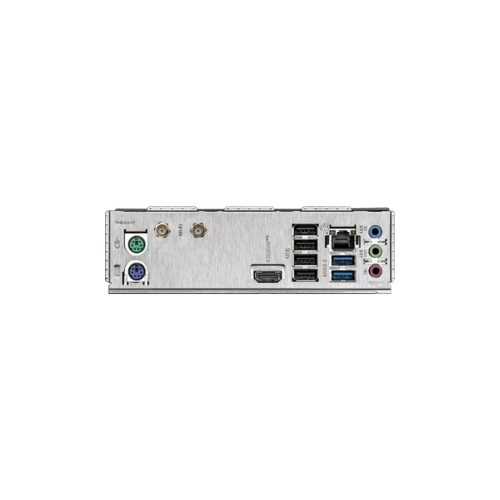

| Rear HDMI Port | 1 |
| Rear USB 3.2 Gen 1 Ports | 2 |
| Rear USB 2.0 Ports | 4 |
| RJ-45 LAN Port | 1 |
| Audio Jacks | 3 |
| PS/2 Keyboard Port | 1 |
| PS/2 Mouse Port | 1 |
| Wi-Fi Antenna Connectors | 2 × SMA (2T2R) |
| BIOS Type | AMI UEFI BIOS |
| Flash ROM | 128 Mbit |
| Q-Flash Support | Yes |
| Gigabyte Control Center (GCC) | Supported |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit |
| Weight | 1 kg |
|---|---|
| Brand | Gigabyte |
| EAN Code | 4719331871116 |
| Chipset | H610 |
| Case Form Factor | Micro Tower |
