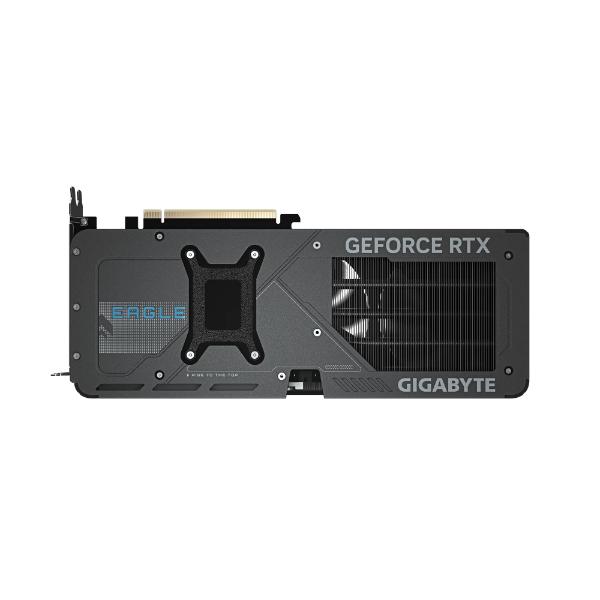

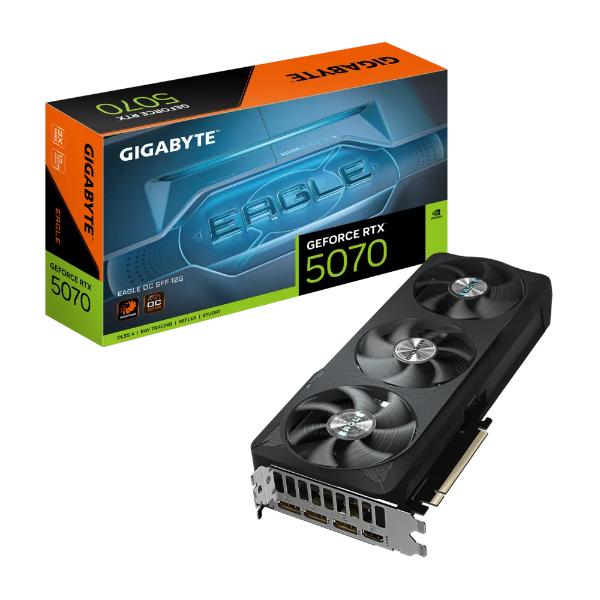

Gigabyte GeForce RTX 5070 EAGLE OC SFF 12G Graphics Card
WINDFORCE Cooling System
The WINDFORCE cooling system uses three alternate spinning Hawk fans that feature specially designed blades that deliver strong air pressure with reduced noise levels. An advanced composite copper heat pipe and a large heat sink quickly transfer heat away from the GPU and VRAM.With the 3D Active Fan design, the fans stop spinning during low loads to provide silent performance.
NVIDIA SFF-Ready
RGB Lighting
Powerful AI Performance

The GeForce RTX 50-Series GPUs can create generative AI models at twice the speed of the previous generation with a smaller memory footprint, enabling powerful video editing, 3D rendering, and design tools.
You can render large 3D scenes in real-time and create complex animations with ray tracing using compatible GPU-accelerated applications such as Autodesk 3ds Max, Maya, Maxon Cinema 4D, and Blender. Visualize photorealistic materials as you create them and experience near lag-free interaction in addition to using tools such as AI-enhanced denoising and frame-boosting with DLSS 3.
Video Editing and Motion Graphics

Photography and Graphic Design


NVIDIA DLSS 4
Full Ray Tracing With Neural Rendering
NVIDIA Reflex 2
NVIDIA G-SYNC
SPECIFICATIONS
Feature | Specification |
---|---|
Model | Gigabyte GeForce RTX 5070 EAGLE OC SFF 12G |
Chipset | NVIDIA GeForce RTX 5070 |
Memory Size | 12GB GDDR7 |
Memory Type | GDDR7 |
Memory Interface | 192-bit |
Core Clock | Base: 1500 MHz, Boost: 1800 MHz |
CUDA Cores | 3840 |
Ray Tracing Cores | 48 |
Tensor Cores | 152 |
Power Connector | 8-pin |

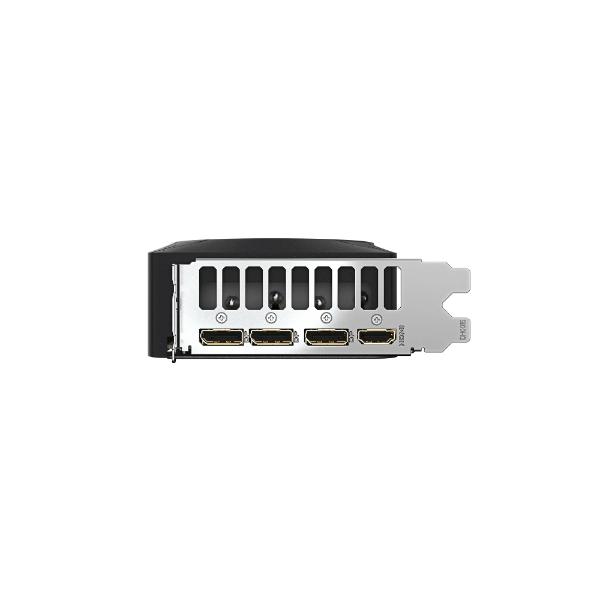

Display Outputs | 1x HDMI 2.1, 3x DisplayPort 1.4 |
Length | 210mm |
Cooling | Windforce 2X Cooling System |
Warranty | 3 Years |
Weight | 1 kg |
---|---|
Brand | Gigabyte |
Product Type | Gaming |
color | White |
GPU Series | RTX 50 Series |
GPU Chipset | NVIDIA Geforce |
GPU Memory Size | 12GB |
Memory Series | GDDR7 |
EAN Code | 4719331355760 |
Warranty | 3 Years |
