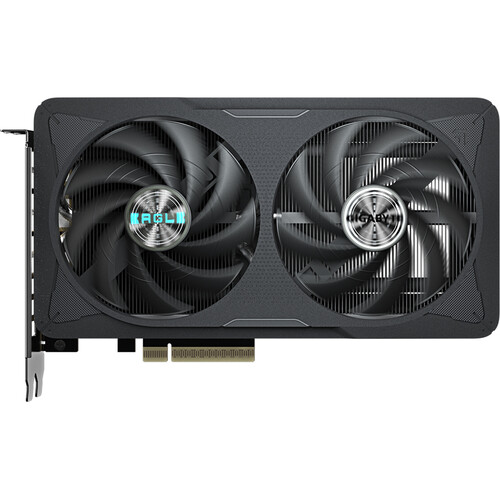

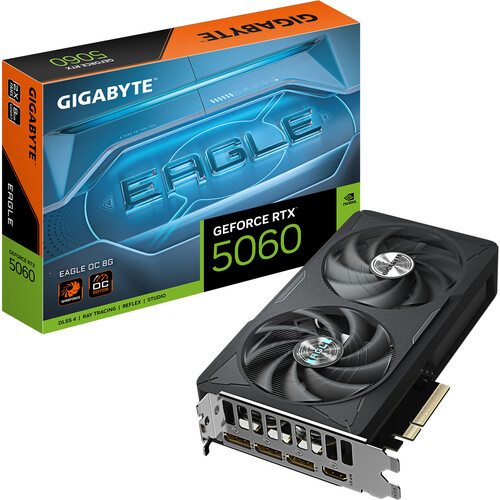

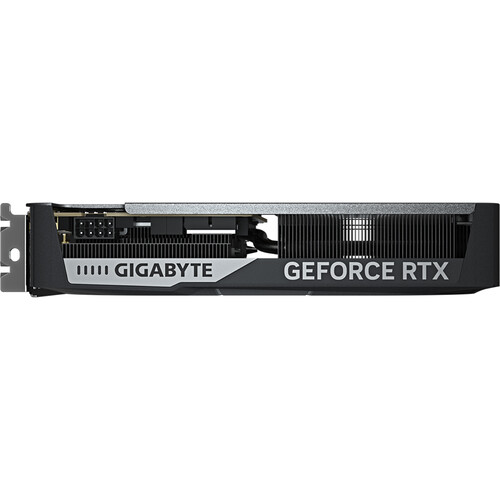

Gigabyte GeForce RTX 5060 EAGLE OC Graphics Card
Based on the Blackwell architecture, the Gigabyte GeForce RTX 5060 EAGLE OC Graphics Card brings the power of real-time ray tracing and AI to your PC games. Play your favorite titles at a high resolution and high frame rates with 8GB of GDDR7 VRAM and a 128-bit memory interface, which offer improved performance over the previous Ada Lovelace-based generation.



The front panel of the card features DisplayPort 2.1 and HDMI 2.1 outputs. But the RTX 5060 is not just about high-performance gaming. Computationally intensive programs can utilize the GPU’s 3840 cores to accelerate tasks using CUDA and other APIs. This graphics card may be boosted to up to 2550 MHz clock speeds.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Â Powered by GeForce RTXâ„¢ 5060
- Â Integrated with 8GB GDDR7 128bit memory interface
- Â WINDFORCE cooling system
- Â Hawk fan
- Â Server-grade Thermal conductive gel
- Â Reinforced structure
SPECIFICATIONS
Feature | Specification |
---|---|
Brand | Gigabyte |
Model | GeForce RTX 5060 EAGLE OC |
Color | Black |
Chipset | NVIDIA GeForce RTX 5060 |
Memory Size | 8GB GDDR7 |
Memory Type | GDDR7 |
Memory Bandwidth | 256-bit |
Boost Clock | Up to 2610MHz (Turbo Mode), 2497MHz (Normal Mode) |
Base Clock | Varies by model |
Power Consumption | 160W (Turbo Mode), 145W (Normal Mode) |
Power Connector | 8-pin |
Cooling System | Triple Fan, Direct Touch Heatpipe, Large Copper Plate |
BIOS Modes | Turbo Mode, Normal Mode |
Output Ports | 3x DisplayPort 1.4, 1x HDMI 2.1 |
Length | Approximately 280mm |
Slot Width | 2.5 Slots |
Warranty | 3 Years |
Weight | 1 kg |
---|---|
Brand | Gigabyte |
Product Type | Normal |
color | Black |
GPU Series | RTX 50 Series |
GPU Chipset | NVIDIA Geforce |
GPU Memory Size | 8GB |
Memory Series | GDDR7 |
Warranty | 3 Years |
