Gigabyte B760M H DDR4 mATX LGA 1700 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹17,000.00.₹7,629.00Current price is: ₹7,629.00. (Inclusive of GST)
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：2*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks GbE LAN
- Extended Connectivity： HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
102
People watching this product now!

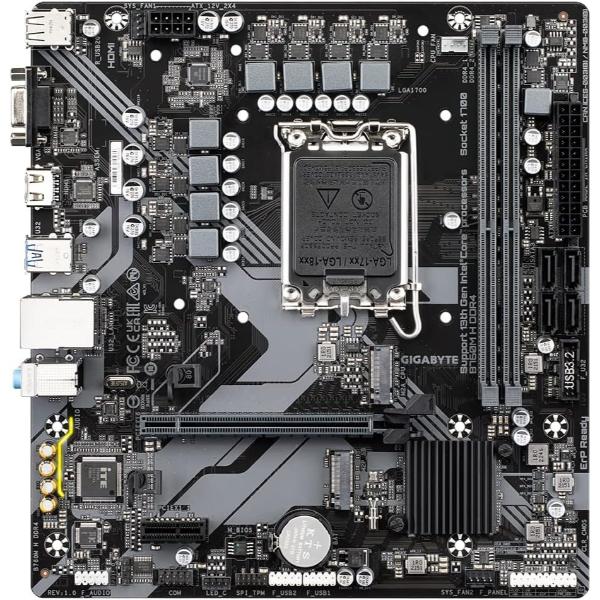

Gigabyte B760M H DDR4 mATX LGA 1700 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance： Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：2*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch ：PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks： GbE LAN
- Extended Connectivity： HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
UNPARALLELED PERFORMANCE
GIGABYTE Predive
Predive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
Max Turbo
Optimization
Spec Enhance
E-Core™ Disable
Max Turbo allows Intel® 13th Gen. Core™ CPU to run at Maximum Turbo Boost speed.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
- High Current Support
- Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control
- Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode
- Slope/Stair dual mode for different user scenario
- Fan Stop
- Fan can stop completely below users’ specified temperature point
Smart Fan 6 BIOS UI
Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual Input
For advanced users, we provide fan speed manual input for more precise control.
EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each load line calibration setting in an intuitive curve graph.
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer to “CPU Support List” for more information.) |
| Chipset | Intel ® B760 Express Chipset |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slot | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |

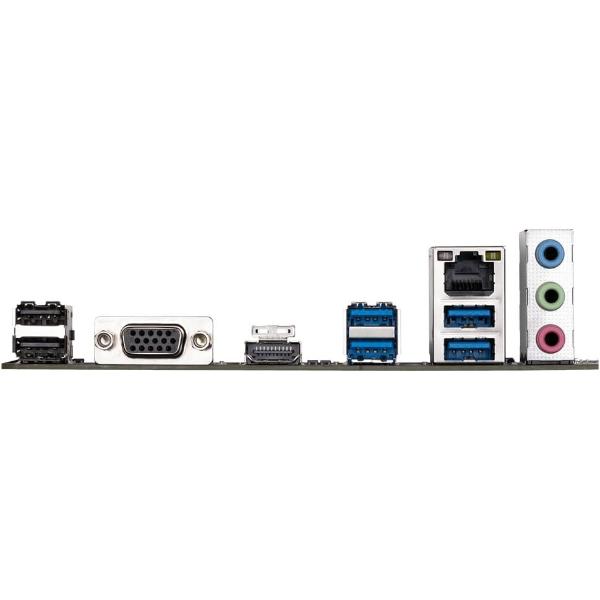

| Back Panel Connectors | 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Weight | 2 kg |
|---|---|
| Brand |
Gigabyte |
| Chipset |
B760 |
| color |
Black |
| Memory Series |
DDR4 |
| Motherboard Size |
mATX |
| Platform |
Intel |
| Product Type |
Gaming |
| RAM Type |
DDR4 |
| Socket |
LGA 1700 |
| Warranty |
3 Years |
| EAN Code |
4719331854645 |
| Motherboard Series |
Gigabyte Ultra Durable |
