Gigabyte B760M AORUS ELITE WIFI6E GEN5 Motherboard
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹32,500.00.₹17,649.00Current price is: ₹17,649.00. (Inclusive of GST)
137
People watching this product now!
Gigabyte B760M AORUS ELITE WIFI6E GEN5 Motherboard
Key Features
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
- EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
- EZ-Latch Plus : M.2 Connectors with Quick Release & Screw less Design
- PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Twin 12*+1+1 Phases Hybrid VRM Solution
- Dual Channel DDR5Â : 4*DIMMs with XMP Memory Module Support
- Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s, DP, HDMI
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Smart Fan 6Â : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
- Gigabyte High-Res Audio : ALC1220 & High-End Audio Capacitors
| Category | Specification |
|---|---|
| CPU Support | LGA1700 socket – Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors (L3 cache varies by CPU) |
| Chipset | Intel® B760 Express Chipset |
| Memory | - Up to 256 GB (4× DDR5 DIMMs, 64 GB each) - Dual channel architecture - ECC/Non-ECC Un-buffered DIMMs supported - XMP 3.0 ready |
| - i9/i7 (14th/13th Gen): DDR5 5600/5200/4800/4400 MT/s - i5/i3 (13th Gen), all 12th Gen: DDR5 4800/4400 MT/s | |
| Onboard Graphics | Intel® Integrated Graphics support (CPU dependent): - HDMI 2.1 (4096x2160@60Hz) - DisplayPort 1.2 (4096x2304@60Hz) |
| Audio | Realtek® Audio CODEC 2/4/5.1/7.1-channel HD Audio S/PDIF Out supported |
| Networking | - LAN: Realtek® 2.5GbE (2.5/1/0.1 Gbps) - Wi-Fi: Intel® Wi-Fi 6E AX210 (2.4/5/6 GHz) - Bluetooth: 5.3 |
| Expansion Slots | - 1 x PCIe x16 (Gen 5.0, CPU) - 1 x PCIe x16 (Gen 4.0, Chipset, runs at x4) |
| Storage Interfaces | - CPU: 1 x M.2 (2280 PCIe 4.0 x4/x2) - Chipset: 1 x M.2 (22110/2280 PCIe 4.0 x4/x2), 4 x SATA 6Gb/s - RAID 0/1/5/10 for SATA |
| USB Ports | - Rear I/O:  • 1 x USB-C (3.2 Gen 2x2)  • 1 x USB-A (3.2 Gen 2, red)  • 3 x USB 3.2 Gen 1  • 4 x USB 2.0 |
| - Internal Headers:  • 1 x USB-C (3.2 Gen 2)  • 1 x USB 3.2 Gen 1 header  • 2 x USB 2.0 headers (4 ports total) | |
| Internal Connectors | - Power: 1× 24-pin ATX, 1× 8-pin ATX 12V, 1× 4-pin ATX 12V - 1× CPU fan, 3× system fans - 3× ARGB Gen2, 1× RGB LED header |
| - 2× M.2, 4× SATA, Front panel/audio headers - USB-C, USB 3.2 Gen 1, USB 2.0 headers - 2× Thunderbolt AIC connectors - Q-Flash Plus | |

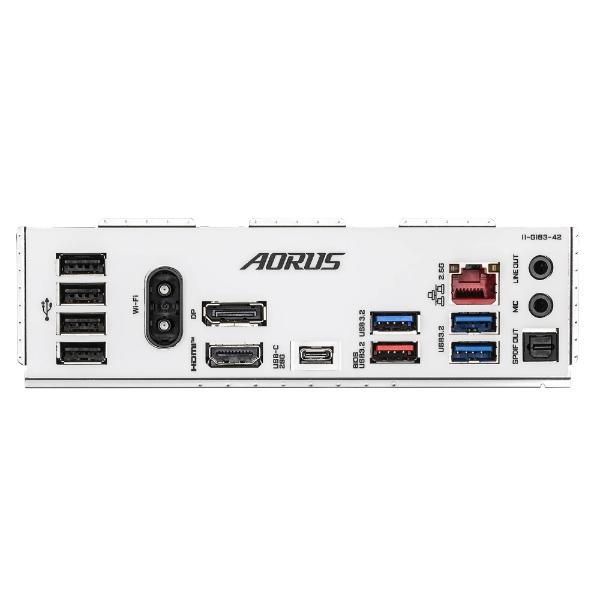

| Back Panel I/O | - 1× USB-C (3.2 Gen 2x2) - 1× USB-A (3.2 Gen 2, red) - 3× USB 3.2 Gen 1 - 4× USB 2.0 - 1× HDMI - 1× DisplayPort - 1× RJ-45 |
| - 2× Wi-Fi Antennas (2T2R) - 1× Optical S/PDIF Out - 2× Audio jacks | |
| Monitoring | Voltage, temperature, fan speed, water flow, fan fail warning, fan speed control (depends on fan type) |
| BIOS | 256 Mbit AMI UEFI BIOS Q-Flash, Q-Flash Plus supported |
| Software | Norton® Internet Security (OEM) GIGABYTE Control Center (GCC) LAN bandwidth management |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 cm × 24.4 cm) |
| Weight | 2 kg |
|---|---|
| Brand |
Gigabyte |
| Memory Series |
DDR5 |
| Motherboard Series |
Gigabyte Aorus |
| Motherboard Size |
mATX |
| Socket |
LGA 1700 |
| Chipset |
B760 |
| EAN Code |
4719331872069 |
| Platform |
Intel |
| Product Type |
Gaming |
| RAM Type |
DDR5 |
| Warranty |
3 Years |
