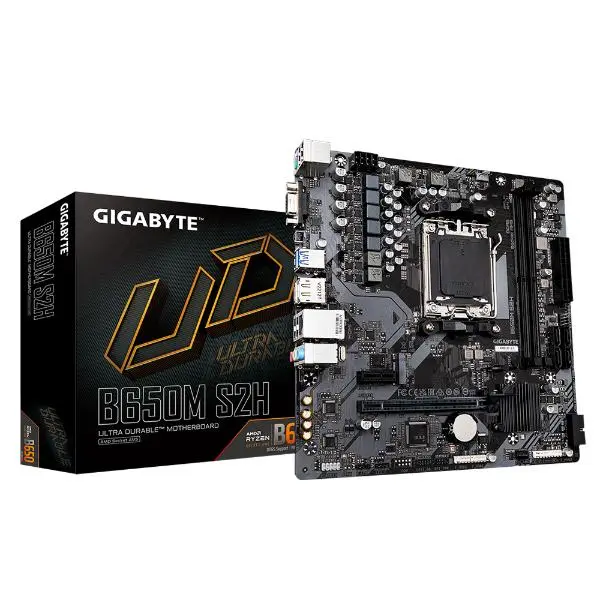

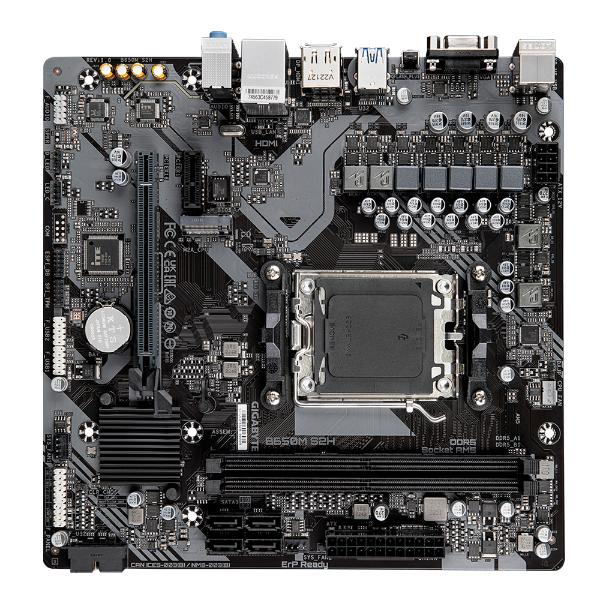

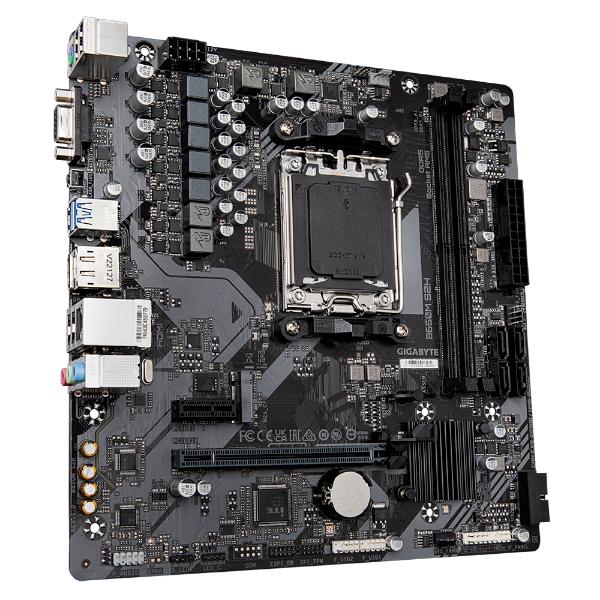

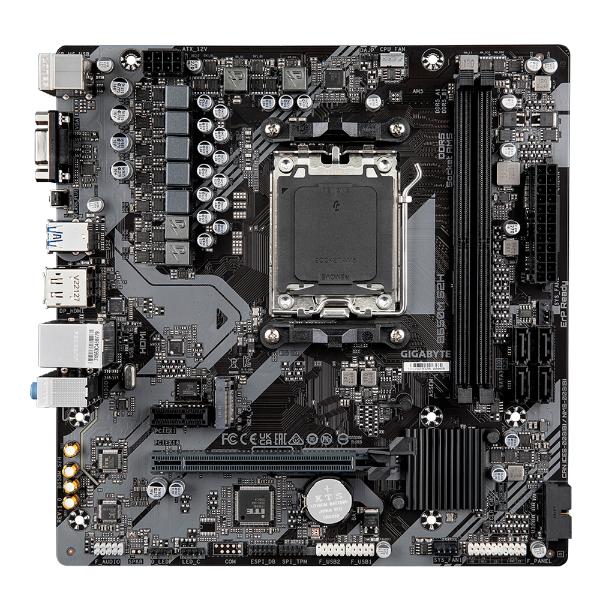

Gigabyte B650M S2H (rev. 1.0) mATX AM5 Motherboard
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹12,999.00.₹8,649.00Current price is: ₹8,649.00. (Inclusive of GST)
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
In stock
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD’s new generation CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
EXPO & XMP Support
DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
Unlock DDR5 Voltage
Secure Mode
MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.
- • GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
- • Transforms Native DDR5 memory module to Overclocked DDR5 memory
- • Increases DDR5 memory overclocking performance and capability
- • Supports all PMIC vendors for maximum compatibility
GIGABYTE Exclusive DDR5 Circuit Design
Programmable Mode
GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
EXPO and XMP Dual Support
GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.
DDR5 Auto Booster
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.
AMD EXPO™ and Intel® XMP 3.0 User Profile
– SPD Re-defined or retrieve from database
– Performance Simulation
– Save/Load Profile
– Overclocked Performance
– Profile Clearance
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 4.0 Hardware Design
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Hi-Fi Audio
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
- STEP 1: Plug 24pin & 8pin power supply cable on motherboard
- STEP 2: Download motherboard BIOS file and rename to “”gigabyte.bin””, save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
- STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
- High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control: Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode: Slope/Stair dual mode for different user scenario
- Fan Stop: Fan can stop completely below users’ specified temperature point
Smart Fan 6 BIOS UI
- Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
- Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
- Manual Input: For advanced users, we provide fan speed manual input for more precise control.
- EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
- Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870E |
| Memory | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. ***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in theM2B_CPU connector, both theM2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable. 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back pane CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging) * For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors." - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 3 x USB 3.2 Gen 1 ports on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper (Note) Actual support may vary by CPU. |
| Back Panel Connectors | 1 x HDMI port (Note) 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB Type-C® ports, with USB 3.2 Gen 2 support 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x RJ-45 port 3 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS | 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundle Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Brand | Gigabyte |
| Chipset | B650 |
| color | Black |
| Memory Series | DDR5 |
| Motherboard Series | Ultra Durable |
| Motherboard Size | mATX |
| Platform | AMD |
| Product Type | Gaming |
| RAM Type | DDR5 |
| Socket | AM5 |
| Warranty | 3 Years |
