Gigabyte B650M K Am5 Micro Atx Motherboard

RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.

Original price was: ₹19,990.00.Current price is: ₹11,249.00. (Inclusive of GST)

AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
DDR5 Compatible: 4 x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
Sturdy Power Design: Direct 8+2+1 Phases Digital VRM Solution
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
Warranty: 3 Years

32 People watching this product now!

In stock

SKU: B650M-K

⚠ Price may have changed. Please confirm stock & latest price on WhatsApp.

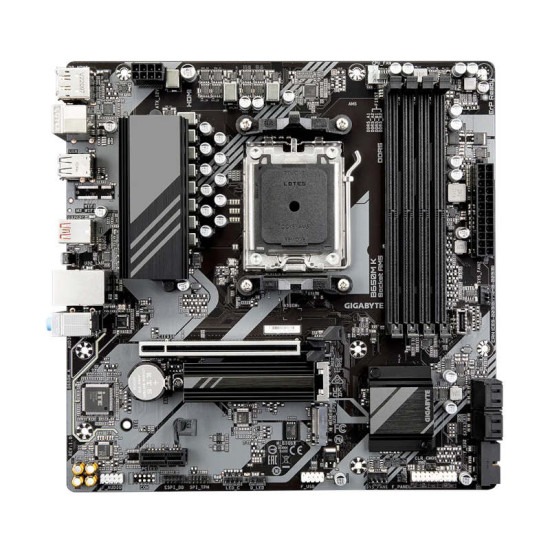

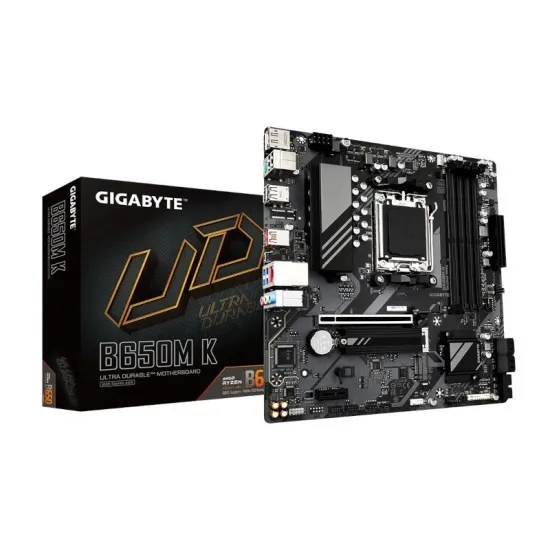

Gigabyte B650m K Am5 Micro Atx Motherboard

Equipped with AMD’s AM5 socket and B650 chipset, you can leverage a wide range of Ryzen 7000 Series processors, enhancing performance and responsiveness. Four dual-channel DDR5 RAM slots enable you to install up to 192GB of memory to enhance multitasking and rendering speeds. Install an array of storage drives for your games, files, and media assets with four SATA III and two M.2 PCIe interfaces.
The B650M K also has one PCIe 4.0 x16 and one PCIe 3.0 x1 expansion slot so you can equip your system with various graphics and utility cards. Connect your low-powered peripherals such as mice, keyboards, and controllers to the B650M K with USB-A 2.0 ports while USB 3.2 Gen 1 and Gen 2 ports are reserved for resource-demanding devices such as external drives, audio interfaces, and more. Use the wired 2.5 Gigabit Ethernet port for a strong and reliable network connection, allowing you to quickly download assets, upload documents, and even enjoy some of your favorite streaming media.

Gigabyte B650M K Motherboard

Feature

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：8+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
PCIe x16 EZ-Latch with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN
Extended Connectivity：DP, HDMI, USB-C® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Digital VRM Design

To ensure maximum Turbo Boost and overclocking performance of AMD’s new generation CPU, GIGABYTE UD series motherboard equip the best VRM design ever built with the highest quality components.

PCIe 4.0 Hardware Design

GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

EXPO & XMP Support

DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond*

AORUS is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their AORUS motherboard.

SMART FAN 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control
Multiple temperature/fan speed control points for precise fan curve
Dual Curve Mode
Slope/Stair dual mode for different user scenario
Fan Stop
Fan can stop completely below users’ specified temperature point

Smart Fan 6 BIOS UI

Improve fan curve UI

We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.

Slope/Stair dual graph mode

Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.

Manual Input

For advanced users, we provide fan speed manual input for more precise control.

EZ Tuning

Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.

Fan curve profile

Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS

UNPARALLELED PERFORMANCE

GIGABYTE Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

THERMAL DESIGN

CONNECTIVITY

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage.

PERSONALIZATION

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

First adopter on 2.5GbE LAN onboard

2X Faster than ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Connecting the Future – USB Type-C

The USB Type-C with front USB 3.2 Gen 1 and rear USB 3.2 Gen 2 ports provide with speeds up to 5Gbps & 10Gbps . With doubled bandwidth compared to the previous generation as well as backward compatibility with USB 2.0, the improved USB protocol is available now over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices

High-End Audio Capacitors

AORUS motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

AORUS motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Performance

Twin Digital VRM design leverages 8 VCORE phases to ensure electrical throughput that can handle AMD’s Ryzen 7000 Series processors as well as various overclocking parameters. EXPO and XMP overclocking boosts RAM up to 6400 MHz for enhanced multitasking and rendering performance.

Friendly User Interface

The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

Unified software platform for all Gigabyte supported products
Intuitive user interface for an eased experience
Modularized control components only for installed hardware
Auto update function to keep system up to date and support future products

Multi-key

A multi-function reset pin headers that can be reconfigured to other function in BIOS for different user scenarios.

RGB Switch
Turn off all lighting effect on motherboard.
Direct-To-BIOS
Boot into BIOS menu directly without pressing any keyboard button.
Safe Mode
Boot into BIOS safe mode to change specific option without losing other BIOS settings.

PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Enhanced Thermal Design

Designed to maintain thermal performance and prevent system throttling, the B650M K’s advanced thermal heat sinks, VRM heat sink, M.2 Thermal Guard, and 6-layer 2x copper PCB work together to ensure that onboard components are safe under heavy loads. Smart Fan 6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.

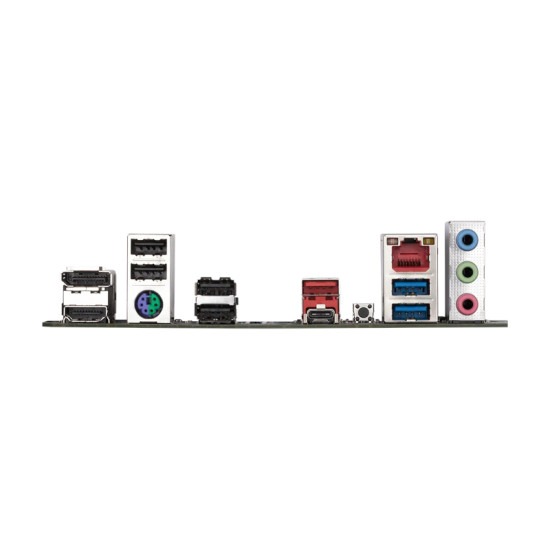

Back Panel Connectors

The back panel of the B650M K includes four USB-A 2.0 ports for low-powered devices such as mice, keyboards, and controllers. You also get two USB-A 3.2 Gen 1 and one USB-A 3.2 Gen 2 port, giving you up to 5 and 10 Gb/s data transfer speeds, respectfully, allowing you to connect external drives, audio interfaces, and more with ease. You also get two USB-C 3.2 Gen 2 ports with one located on the back panel and the other for the front panel, both covering a wide range of device utility complete with 10 Gb/s data transfer speeds.

Personalization & Customization

With an array of RGB headers, you can use GIGABYTE’s RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room. UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile according to your needs. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode.

Ultra-Durable

Sporting an easy DIY design, the B650M K provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch provides quick access to your M.2 storage drives and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor.

CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD X870E
Memory	Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. *Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in theM2B_CPU connector, both theM2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable. 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back pane CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging) * For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors." - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 3 x USB 3.2 Gen 1 ports on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper (Note) Actual support may vary by CPU.
Back Panel Connectors	1 x HDMI port (Note) 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB Type-C® ports, with USB 3.2 Gen 2 support 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x RJ-45 port 3 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS	1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundle Software	Norton® Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years
Note*	Price, feature and specifications are subject to change without notice.

Weight	1 kg
Brand	Gigabyte
Chipset	B650
color	Black
Memory Series	DDR5
Motherboard Series	Ultra Durable
Motherboard Size	mATX
Platform	AMD
Product Type	Gaming
RAM Type	DDR5
Socket	AM5
Warranty	3 Years
