-19%
Fast delivery all over india

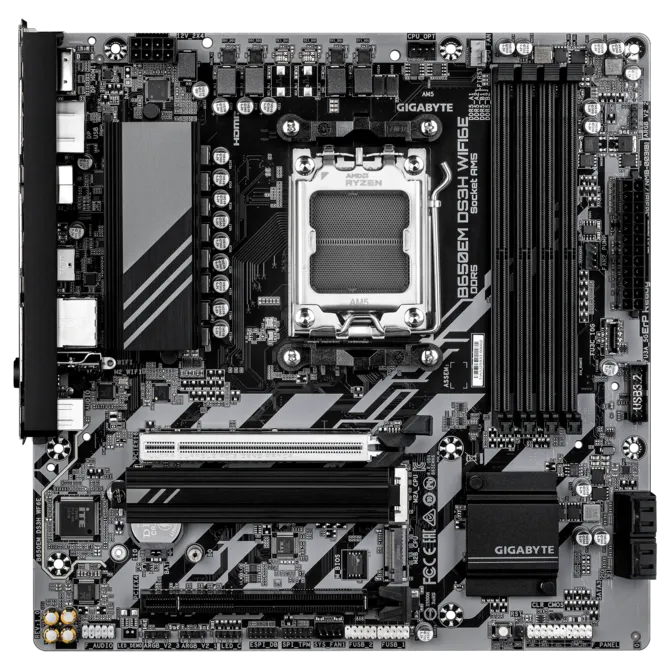

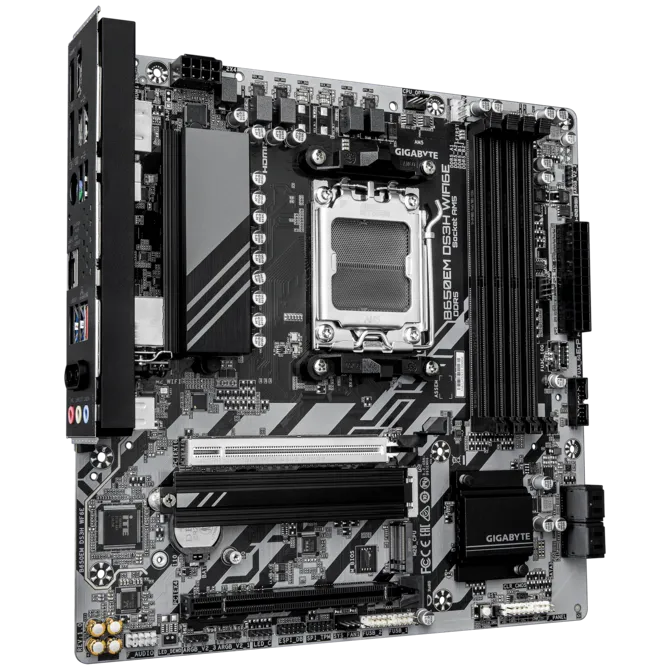

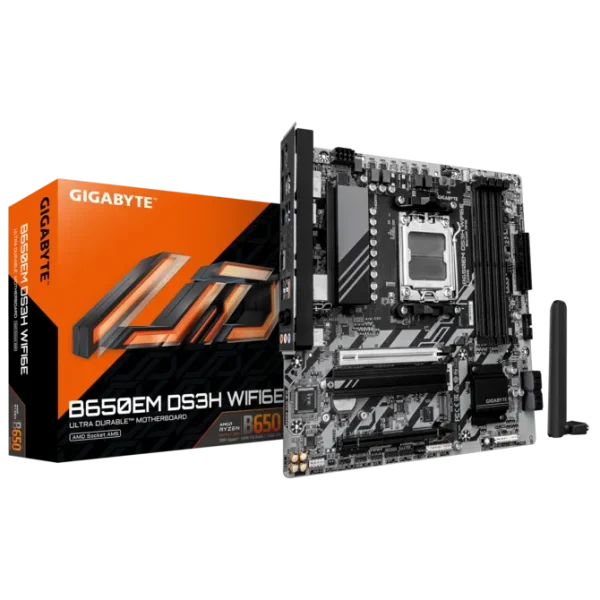

Gigabyte B650EM DS3H WIFI6E Motherboard
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹16,499.00.₹13,319.00Current price is: ₹13,319.00. (Inclusive of GST)
- B650E: Denotes the motherboard chipset (AMD B650 Extreme) and indicates PCIe 5.0 support for the GPU slot and at least one M.2 slot.
- M: Micro-ATX form factor (smaller than standard ATX).
- DS3H: Gigabyte’s product series/tier (often budget-friendly to mid-range).
- WIFI6E: Built-in support for the latest Wi-Fi 6E standard.
138
People watching this product now!
⚠ Price may have changed. Please confirm stock & latest price on WhatsApp.
Enquire on WhatsApp
Gigabyte B650EM DS3H WIFI6E Motherboard
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance：8+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage： PCIe 5.0 x4 M.2 Connector
- EZ-Latch： PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- WIFI EZ-Plug： Quick and easy design for Wi-Fi antenna installation
- Extended Connectivity： HDMI, 2*DisplayPort
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus： Update BIOS Without Installing the CPU, Memory and Graphics Card
| Specification | Details |
|---|---|
| CPU Support | AMD Socket AM5 - Supports Ryzen™ 7000 / 8000 / 9000 Series Processors |
| Chipset | AMD B650 |
| Memory | 4x DDR5 DIMM slots, up to 256GB (64GB per DIMM) Dual Channel, Supports EXPO & XMP up to 8000+MHz (OC) |
| VRM Design | 8+2+2 Phases Digital VRM with 60A Smart Power Stage |
| Expansion Slots | 1x PCIe 4.0 x16 slot (PCIEX16) 1x PCIe 3.0 x1 slot (PCIEX1) |
| Storage | 2x M.2 PCIe 4.0 x4 slots with Enlarged Thermal Guards 4x SATA 6Gb/s ports |
| LAN | Realtek® 2.5GbE LAN (10/100/1000/2500 Mbps) |
| Wi-Fi & Bluetooth | Wi-Fi 6E (AMD RZ616 / Intel AX210 / Realtek RTL8852CE) Bluetooth 5.2 or 5.3 (varies by PCB revision) |
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| Rear Panel Ports | 1x HDMI 2.1 (4096x2160@60Hz) 2x DisplayPort 1.4 (3840x2160@144Hz) 1x USB 3.2 Gen 2 Type-A 1x USB 3.2 Gen 2 Type-C® 4x USB 2.0/1.1 ports 3x Audio jacks |
| Internal Connectors | 4x PWM/DC Fan Headers 1x Addressable LED Header, 1x RGB LED Header 1x USB 3.2 Gen 2 Type-C® header 2x USB 3.2 Gen 1 headers Front panel audio header TPM header |
| Form Factor | Micro ATX (244mm x 244mm) |
| Special Features | PCIe EZ-Latch, Q-FLASH PLUS, Smart Fan 6, RGB FUSION, 6-Layer 2x Copper PCB |
| Weight | 2 kg |
|---|---|
| Brand |
Gigabyte |
| Chipset |
B650 |
| Platform |
AMD |
| Motherboard Size |
mATX |
| Socket |
AM5 |
