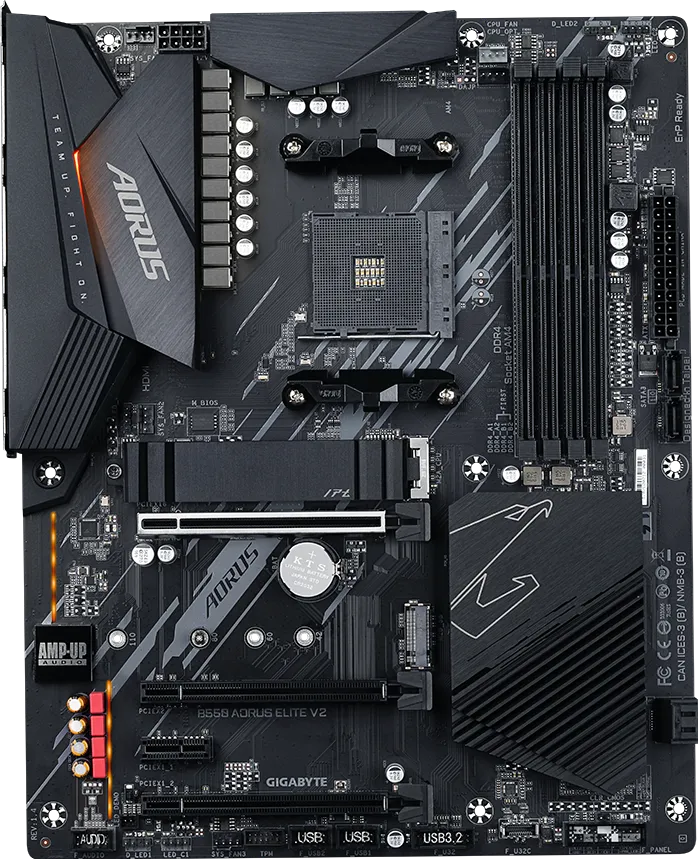

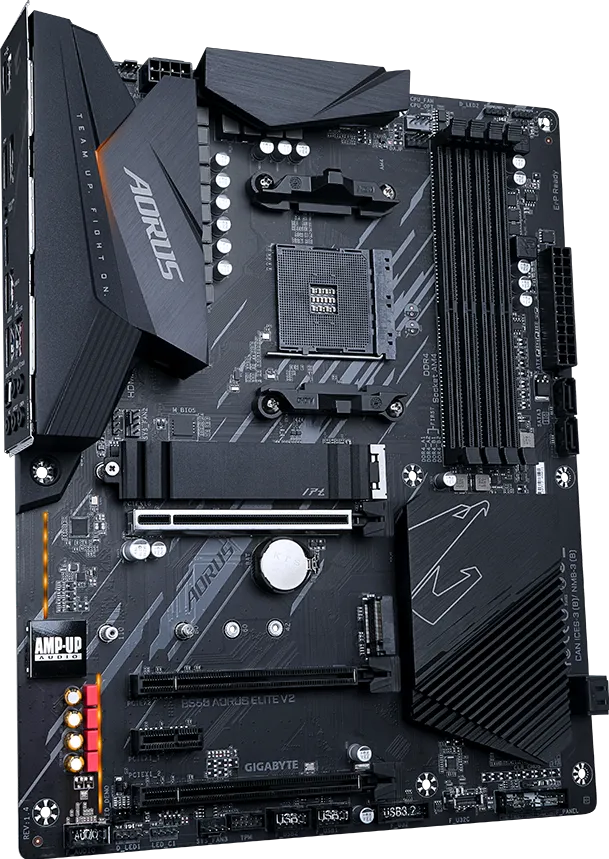

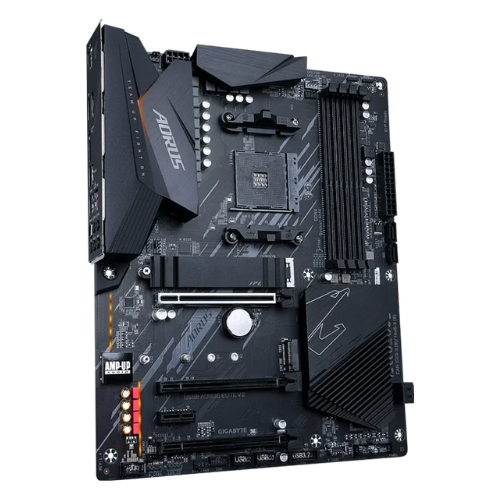

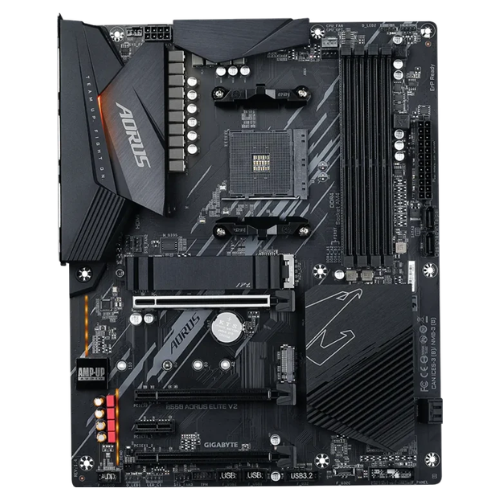

Gigabyte B550 AORUS ELITE V2 Motherboard

RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.

Original price was: ₹16,532.00.Current price is: ₹14,000.00. (Inclusive of GST)

Digital PWM Controller delivers appropriate voltage to the CPU
With 12+2 Phases 50A Dr MOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 700 Amps current in a total
All-solid capacitors to improve Transient response and minimize oscillation
24pin+8pin Solid Pin CPU Power Connectors.

24 People watching this product now!

SKU: B550 AORUS ELITE V2

⚠ Price may have changed. Please confirm stock & latest price on WhatsApp.

Gigabyte B550 AORUS ELITE V2 Motherboard

Feature

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
12+2 Phases Digital Twin Power Design with 50A Dr MOS
Advanced Thermal Design with Enlarged Surface Heatsinks
Ultra Durable™ PCIe 4.0 x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
Blazing Fast 2.5GbE LAN with Bandwidth Management
Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation.

DESIGN CONCEPT

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

GIGABYTE B550 motherboards maximize your PC’s potential with AMD Store MI technology. Store MI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven systems.

AMD StoreMI Technology

• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users’ computing behaviors.

Ultimate power design

To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 AORUS motherboards equip with the ultimate power solution which is power balanced, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiast. No Compromise and never stop to achieve higher.

B550 AORUS ELITE V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, Dr MOS and Ferrite core choke as high quality selected components. These 100% digital controller offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.

UNPARALLELED PERFORMANCE

GIGABYTE realize that customer won’t stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.

Specification	Details
CPU Support	AMD Socket AM4 for Ryzen™ 5000 Series / Ryzen™ 5000 G-Series / Ryzen™ 4000 G-Series / Ryzen™ 3000 Series / Ryzen™ 3000 G-Series Processors
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets, up to 128GB (32GB per DIMM) Supports DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Dual channel memory architecture Support for ECC Un-buffered DIMM (1Rx8/2Rx8)* Support for non-ECC Un-buffered DIMM (1Rx8/2Rx8/1Rx16) Support for Extreme Memory Profile (XMP) memory modules * ECC memory (ECC mode) support varies by CPU
Integrated Graphics	1 x DisplayPort (max. resolution 5120x2880@60 Hz, DP 1.4, HDCP 2.3, HDR) 1 x HDMI port (max. resolution 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR) Maximum shared memory of 16 GB
Audio	Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 5000 Series & Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: PCIe 3.0 x1 mode 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: PCIe 3.0 x1 mode
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU: – AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset: SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors (chipset integrated) Support for RAID 0, RAID 1, and RAID 10
USB	CPU: – AMD Ryzen™ 5000 Series/3000 Series Processors: 2 x USB 3.2 Gen 2 Type-A ports (red) on back panel – AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors: 2 x USB 3.2 Gen 1 ports (red) on back panel – 2 x USB 3.2 Gen 1 ports on back panel Chipset: – 1 x USB Type-C™ port with USB 3.2 Gen 1 support (internal header) – 1 x USB 3.2 Gen 1 port on back panel – 2 x USB 3.2 Gen 1 ports (internal header) – 2 x USB 2.0/1.1 ports on back panel Chipset+ USB 2.0 Hub: – 4 x USB 2.0/1.1 ports (internal headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port header (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for GC-TPM2.0_S module only) 1 x Clear CMOS jumper

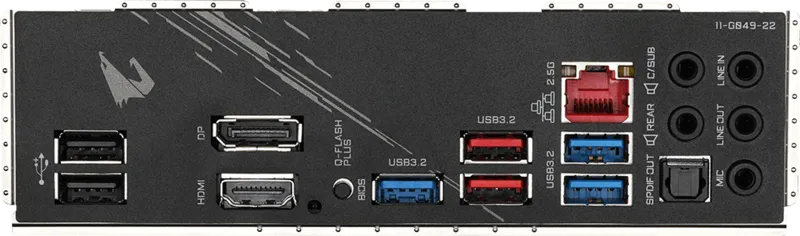

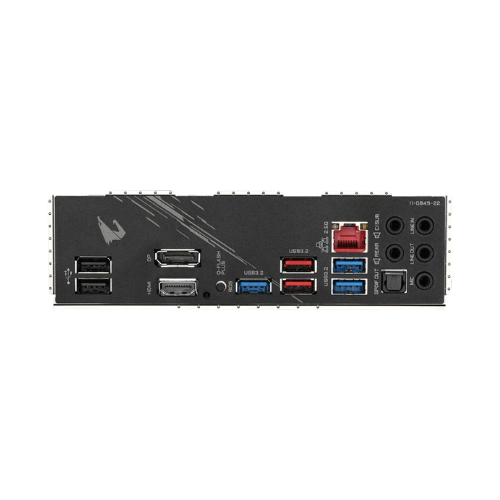

Back Panel Connectors	1 x DisplayPort 1 x HDMI port 2 x USB 3.2 Gen 2 Type-A/USB 3.2 Gen 1 ports (red) For AMD Ryzen™ 5000 Series/3000 Series Processors only. 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port (2.5GbE LAN) 1 x optical S/PDIF Out connector 5 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Power Design	12+2 Phases Digital Twin Power Design with 50A DrMOS
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
