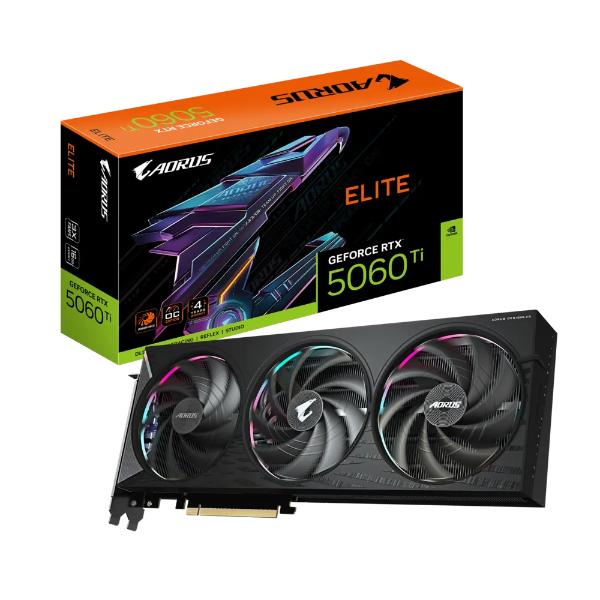

Gigabyte AORUS GeForce RTX 5060 Ti ELITE 16G

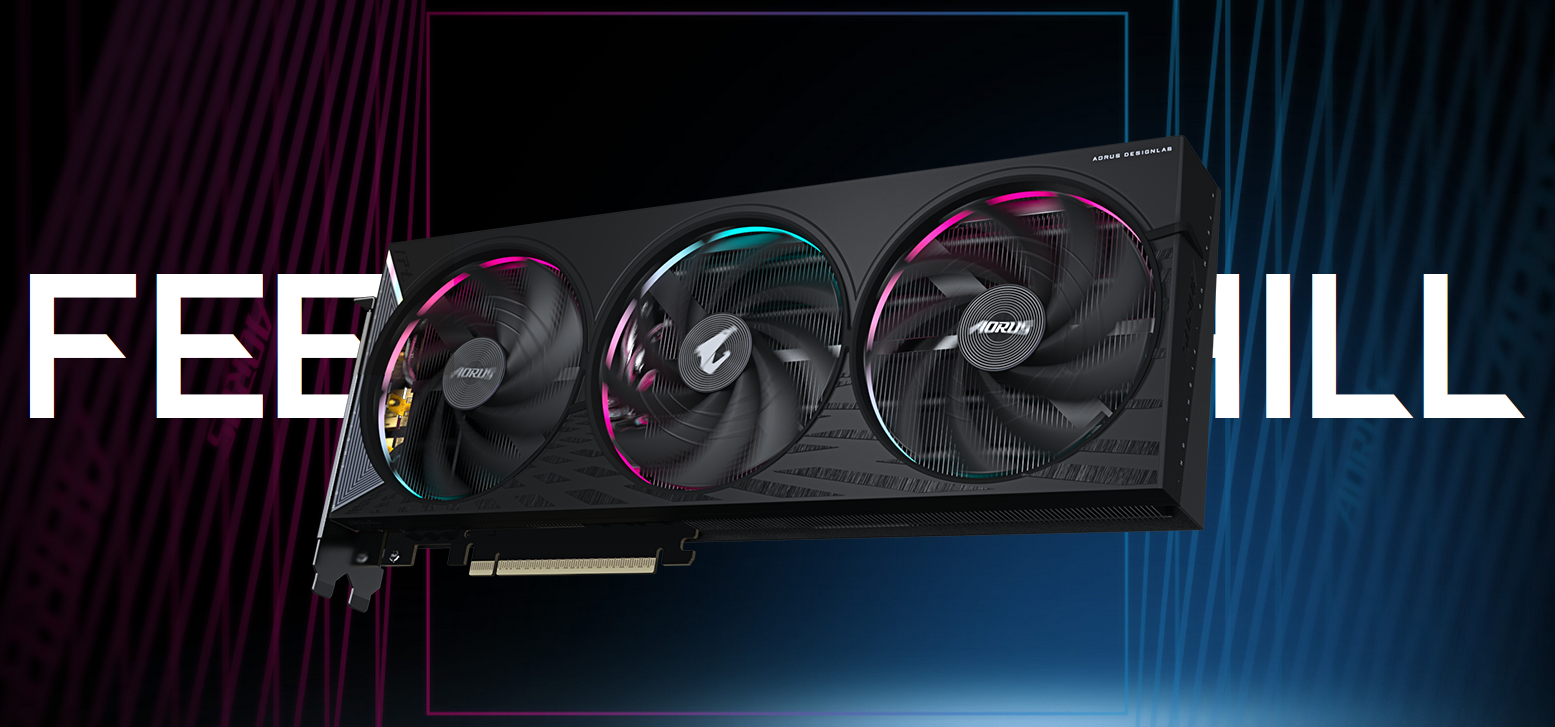

ACTIVE COOLING DESIGN – HAWK FAN
LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5060 Ti
- Integrated with 16GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- Gigabyte RGB Halo
- Dual BIOS (Performance / Silent)
- Reinforced structure
- 4 years warranty (Online registration required
SPECIFICATIONS
Graphics Processing | GeForce RTX™ 5060 Ti |
Core Clock | 2722 MHz (Reference card: 2572 MHz) |
CUDA® Cores | TBD |
Memory Clock | 28 Gbps |
Memory Size | 16 GB |
Memory Type | GDDR7 |
Memory Bus | 128 bit |
Card Bus | PCI-E 5.0 |
Digital Max Resolution | 7680x4320 |
Multi-view | 4 |
Card Size | L=329 W=128 H=41 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | 4.6 |
Recommended PSU | 650W |
Power Connectors | 8 Pin ×1 |

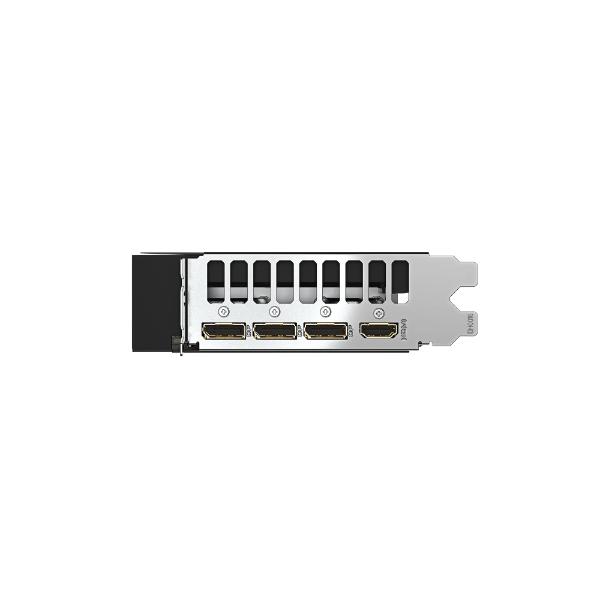

Output | DisplayPort 2.1b ×3, HDMI 2.1b ×1 |
Accessories | 1. Quick Guide 2. Warranty Registration 3. AORUS Metal Sticker |
Weight | 1 kg |
---|---|
Brand | Gigabyte |
GPU Chipset | NVIDIA Geforce |
GPU Memory Size | 16GB |
GPU Series | RTX 50 Series |
Memory Series | GDDR7 |
Warranty | 3 Years |
