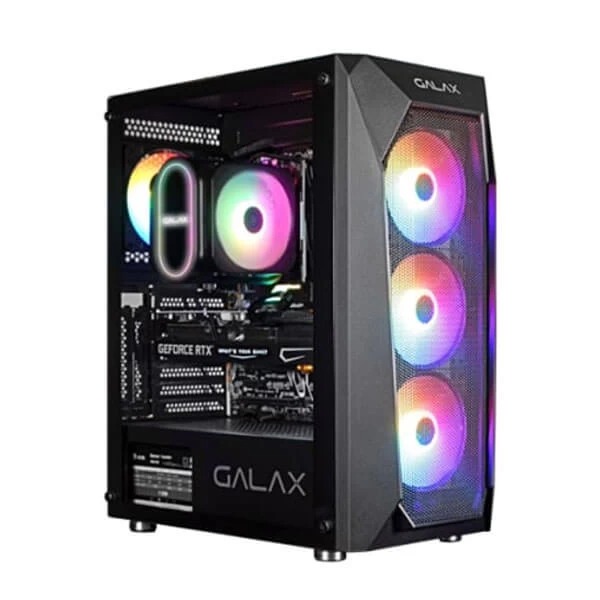

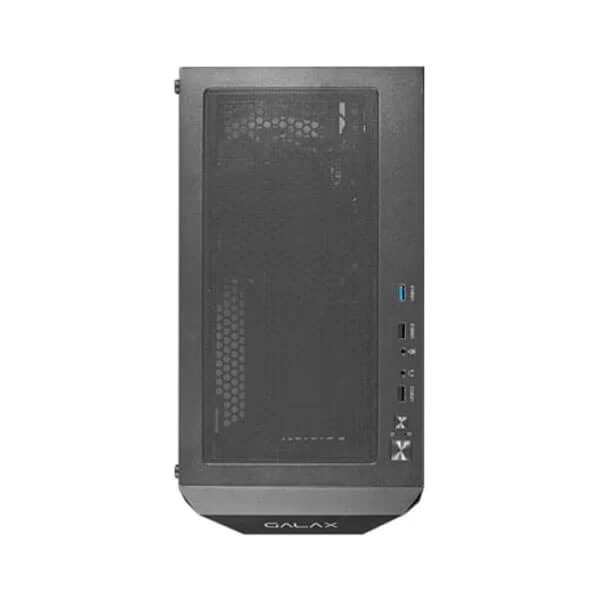

Galax Revolution-05 Mesh (ATX) Mid Tower Cabinet (Black)
Sale!44%
Original price was: ₹7,000.00.₹3,900.00Current price is: ₹3,900.00. (Inclusive of GST)
Out of stock
Shipping Policy
Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed. Shipping Partners : FedEx, Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Green Apple Compunet DOES NOT Have any Control over Operations of Shipping Partners. Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays. Loss or damage occured during shipping is Green Apple Compunet Responsibility. You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package. You must notify Green Apple Compunet of damaged or missing items from your order within 24-hours of receiving your package.
Get it by
Oct 27 Oct 31
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Reviews (0)
Q & A
Features:
Compatible with ATX, M-ATX, ITX motherboards, REV-05 is by far the tallest PC case in the Revolution family. Standing tall at 470mm, it provides a spacious interior for customization, allowing you to choose between vertical or horizontal mounting for the graphics card and maximizing cooling and storage potential for your next build.
SPECIFICATIONS
| Case Form Factor | Full Tower |
| M/B Type | Mini ITX / Micro ATX / ATX / E-ATX |
| Color | Black |
| Materials | Aluminum, Steel, Plastic, Glass |
| Dimensions | H=714 W=301 D=671 mm (Within ± 1% error) |
| Expansion slots | 8 + 2 (Requires PCI-E Riser Cable) |
| 5.25″ Drive Bays | None |
| 3.5“/2.5” Drive Bays | 4 |
| 2.5″ Drive Bays | 6 |
| I/O Panel | USB 3.1 Gen-2 Type-C x1, USB 3.0 x4, HDMI x1, RGB SW Button, Fan Speed Button, Audio In & Out (supports AC97 / HD Audio) |
| Pre-installed Fan | Front: 120mm x3 (PWM), Rear: 120mm x2 (ARGB&PWM) |
| Fan Support | Front: 120mm x3 / 140mm x3, Top: 120mm x3 / 140mm x3, Rear: 120mm x2 / 140mm x1 |
| Radiator Support | Front: Max 360mm, Top: Max 420mm, Rear: Max 140mm |
| Power Supply Type | Standard ATX (Not included) |
| Maximum Compatibility | CPU Height: 198mm, GPU Length: 490mm, PSU Length: 200mm |
| Vertical GPU Mount | Yes (*54mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling) |
| Dust Filters | Bottom |
| RGB Lighting | Yes (Support RGB Fusion 2.0) |
| Weight | N.W. 19.2 Kg |
| Package Dimensions | H=773 W=406 D=820 mm |
| Accessories | 1. Manual 2. Accessories kit |
| Weight | 2 kg |
|---|---|
| Brand | Galax |
| color | Black |
| Motherboard Size | ATX, ITX, mATX |
| Case Form Factor | Mid Tower |
| Radiator Size | 240mm, 360MM |
| Max Fan Support | 6 |
| Lighting Profile | RGB |
| Warranty | 1 Year |
| EAN Code | 4895147147970 |
