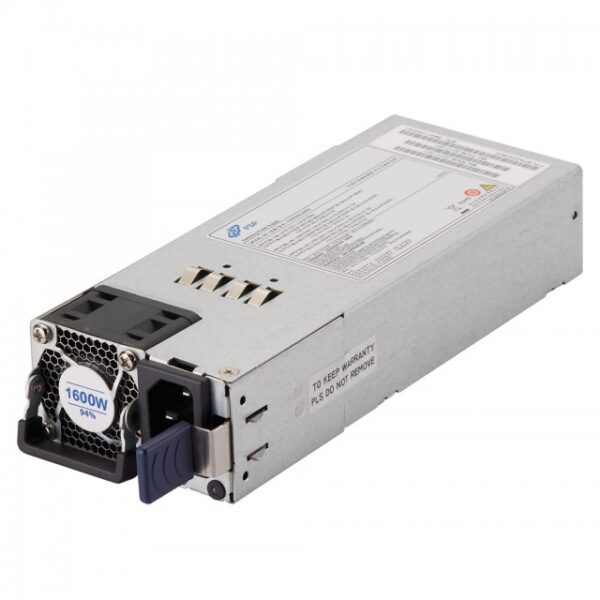

FSP1600-20FM 1600W 80 Plus Platinum CRPS Redundant Server Power Supply
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹33,899.00.₹23,429.00Current price is: ₹23,429.00. (Inclusive of GST)
- Low iTHD
- Working temperature: 0 to 55°C
- Design for 5,000 meters above sea level
- Support OCP, OTP and OVP circuit protection
- Short circuit protection on all outputs
- Resettable power shut down
- MTBF: 250K hours of continuous operation at 45°C, 75% output load
13
People watching this product now!
In stock
FSP1600-20FM 1600W 80 Plus Platinum CRPS Redundant Server Power Supply
FSP1600-20FM is a redundant power supply module base on CRPS standard. The power supply comes to offer the total powercapacity up to 1600 Watts, and provides PMBus features, which makes it be able to communicate with motherboard. In addition, thepower supply is ideally the best choice for datacenter, workstation, communication or any other automation applications to use. Theproduct also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
| Specification | Details |
|---|---|
| Model Number | FSP1600-20FM |
| Product Type | CRPS 2.0 Redundant Power Supply Module |
| Maximum Output Power | 1600W |
| Efficiency Certification | 80 Plus Platinum |
| Form Factor | CRPS 2.0 |
| PMBus Support | PMBus 1.2 |
| Input Voltage | 90–264VAC |
| Input Frequency | 47–63Hz |
| Input Current | 8A @ 115VAC, 4A @ 230VAC |
| Main Output Voltage | +12V DC |
| +12V Output Current (90–120VAC) | 80.5A |
| +12V Output Current (180–264VAC) | 130.3A |
| +12V Standby Output | 3.0A |
| Hold-Up Time (High Line) | >10ms @ 70% Load |
| Hold-Up Time (Low Line) | >10ms @ Full Load |
| MTBF | 250,000 Hours @ 45°C, 75% Load |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to +80°C |
| Operating Humidity | 5% to 90% RH (Non-Condensing) |
| Storage Humidity | 5% to 95% RH (Non-Condensing) |
| Operating Altitude | Up to 5,000 Meters |
| Dimensions (L × W × H) | 185 × 73.5 × 39 mm |
| Protection Features | OCP, OVP, OTP, SCP |
| Cooling | Integrated High-Speed Fan |
| Safety Standards | CB 62368-1, CB 60950-1 |
| Applications | Data Centers, Enterprise Servers, Storage Systems, Workstations, Industrial Controllers |
| Special Features | Hot-Swap Design, Low Ripple & Noise, High Reliability, PMBus Monitoring |
| Weight | 1 kg |
|---|---|
| Brand | FSP |
| Case Form Factor | CRPS |
| Product Type | CRPS 2.0 Redundant Power Supply Module |
| Cooling Type | Integrated High-Speed Fan |
