Fractal Design Terra Mini ITX Cabinet (Graphite)

Sale!18%

Mini-ITX Motherboard Support
Aluminum Frame with Wood Panel
2 x 2.5″ Drive Bays
3 x Vertical Expansion Slots
USB-C 3.2 Gen 2×2 | USB-A 3.2 Gen 1
Supports One 120mm Bottom Fan

(Inclusive of GST)

Out of stock

SKU: FD-C-TER1N-01

Categories:Fractal Design Cabinets, Cabinets

Tags:Fractal Design, Fractal Design Terra Mini ITX Cabinet, Fractal Design Terra Cabinet, Fractal Design Terra, FD-C-TER1N-01

Brand: Fractal Design

Guaranteed safe & secure checkout

Description

SPECIFICATIONS

Additional information

Reviews (0)

Q & A

Fractal Design Terra Mini ITX Cabinet (Graphite)

Feature –

Product image

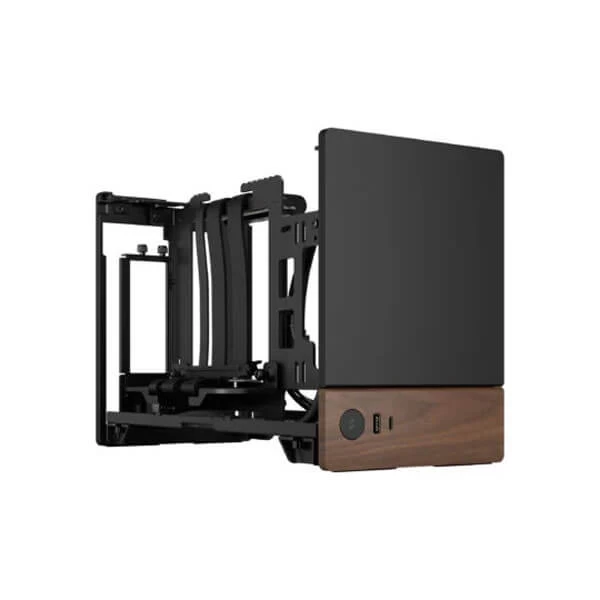

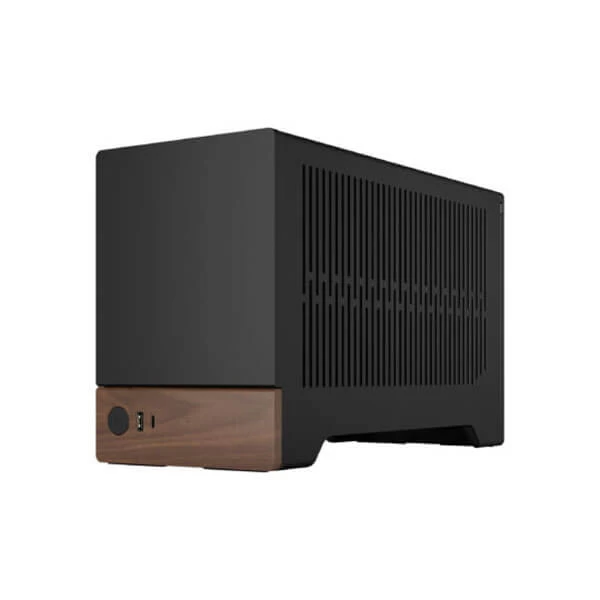

Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front

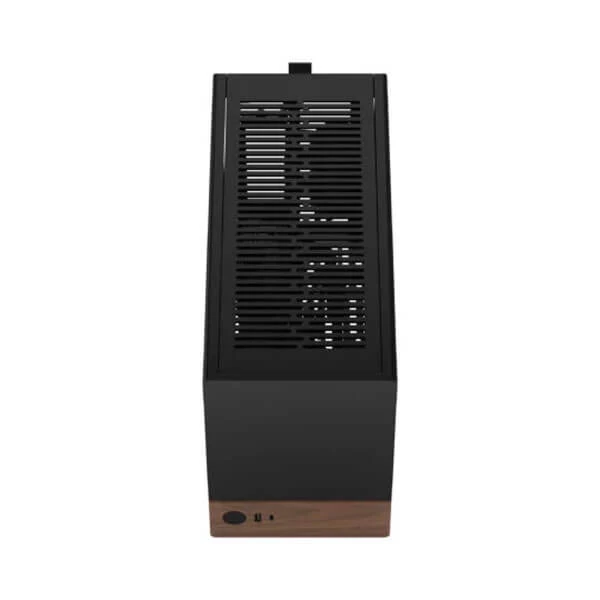

Make the most of natural airflow through the ventilated top, side and bottom panels

Elegantly crafted

Product image

Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
Make the most of natural airflow through the ventilated top, side and bottom panels

Engineered for SFF gaming

Product image

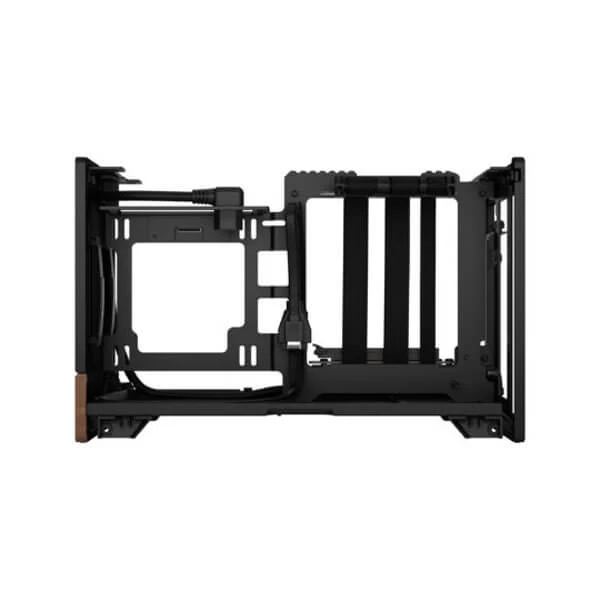

Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case (excluding feet)
Get a head start on your build with the included PCIe 4.0 riser cable
Store up to two SSDs in the dedicated 2.5” drive mounts

Natural material

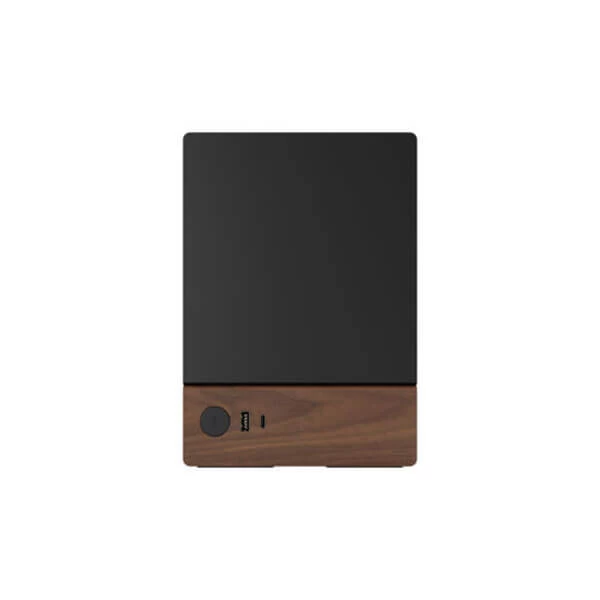

Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.

Highly transportable

Features the ability to lock the top and side panels for safer transportation of your build

*Above images are for only demonstration, this product color is Graphite

SPECIFICATIONS

Dedicated 2.5″ drive mounts	2 (included)
Expansion Slots	3 (Max GPU Mode), 2 (Max CPU-Cooler height mode)
Front Interface	1x USB Type-C 20Gbps (USB 3.2 Gen 2×2), 1x USB Type-A 5Gbps (USB 3.0), Power Button
Total Fan Mounts	1x 120 mm
Bottom Fan	1x 120 mm
Tool-less push-to-lock	Both side panels and top panel (can also be locked with screws)
Compatibility
Motherboard compatibility	mITX
Power Supply Type	SFX-L/ SFX
PSU Max Length	130 mm
Side Radiator	1x 120mm (121 mm wide if max 200 mm GPU and no SSDs)
GPU Max Length	322 mm
GPU Max Width (if GPU height is lower than 131 mm)	72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)
GPU max width (if GPU height 131-145mm)	62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)
GPU Max Height	145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)
*CPU cooler max height	48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler)

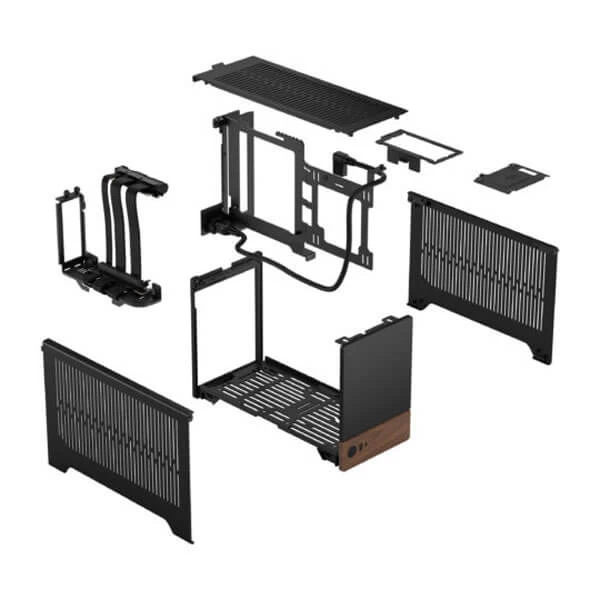

*Additional Comment	Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info.
Dimensions
Case Dimensions (LxWxH)	343 x 153 x 218 mm
Case dimensions w/o feet/protrusions/screws	343 x 153 x 198 mm
Packaging Dimensions (LxWxH)	394 x 215 x 292 mm
Net Weight	3.1Kg
Gross Weight	4.0Kg
Volume	10.4 liter (excluding feet), 11.4 liter (external dimensions)
Other
Package Contents	Case, Accessory box, Manual
SKU	FD-C-TER1N-01
Warranty	2 Years
Note**	**Prices, Specifications & Features are subject to change without notice

Weight	1 kg
Brand	Fractal Design
color	Graphite
Product Type	Normal
Warranty	2 Years
