Fractal Design Ion+ 560 Watt 80 Plus Platinum SMPS
Sale!48%
- 80PLUS Gold Efficiency rating for reduced noise and energy consumption
- Premium Japanese 105°C capacitor(s)on the primary side for superior reliability and durability
- Equipped with a large temperature-controlled Fractal Design Dynamic 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed
- DC-DC design for more precise electrical output and full compatibility with modern components
Original price was: ₹18,900.00.₹9,800.00Current price is: ₹9,800.00. (Inclusive of GST)
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Get it by
Feb 09 Feb 13
Guaranteed safe & secure checkout
Description
Specifications
Additional information
Reviews (0)
Q & A

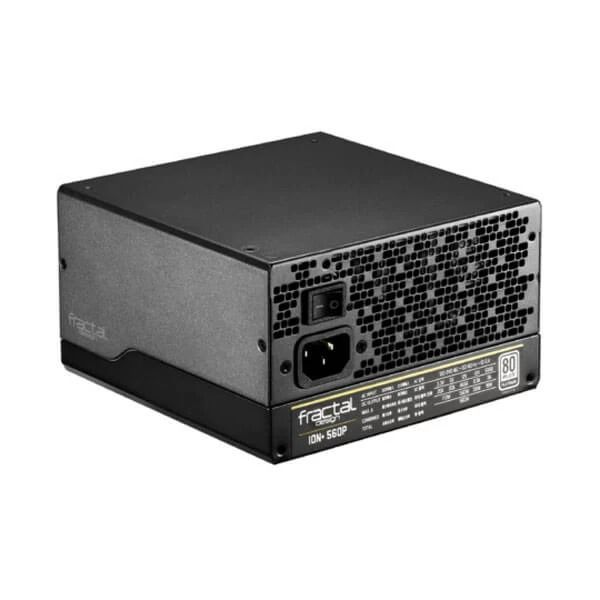

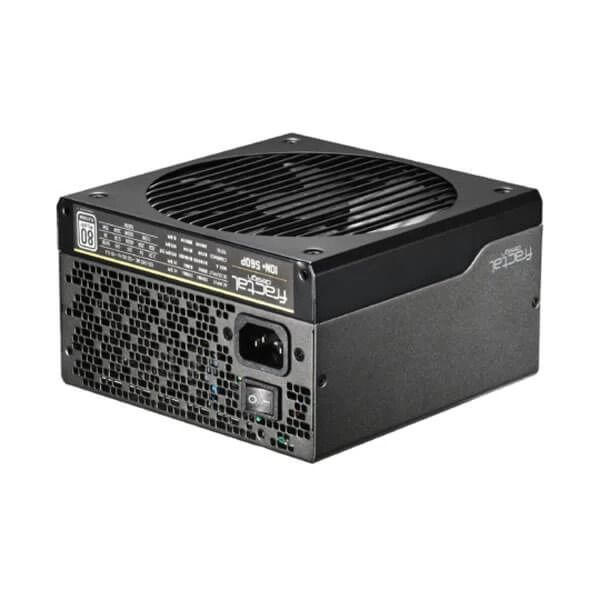

Fractal Design Ion+ 560 Watt 80 Plus Platinum SMPS
Features:
Ion+ 560W Platinum

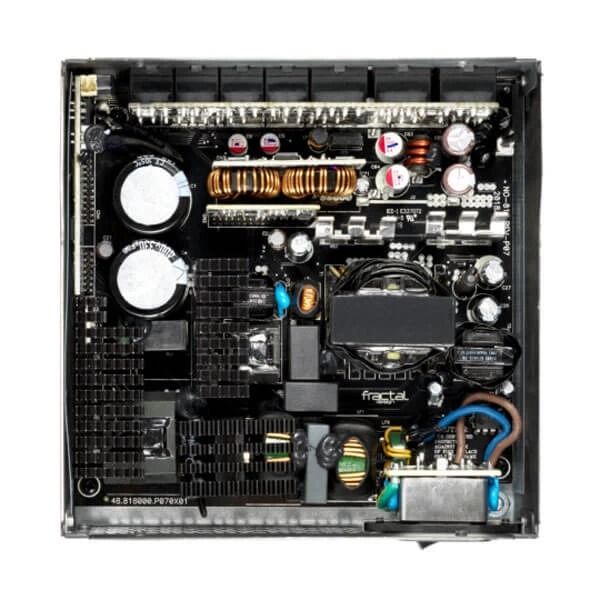

Fractal Design Ion+ 560 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality
• UltraFlex DC wires for effortless cable-routing and connectors
• Custom-tailored 140 mm fan with exceptionally low minimum speed
• 80 PLUS® Platinum Efficiency for optimized electrical performance
Power with a plus
- Fully modular design for reduced clutter and maximum ease of installation

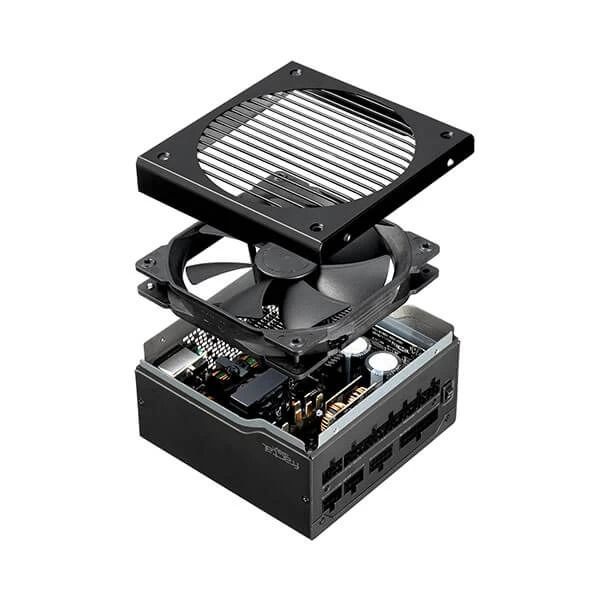

- Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB
- Extensive 10 year warranty

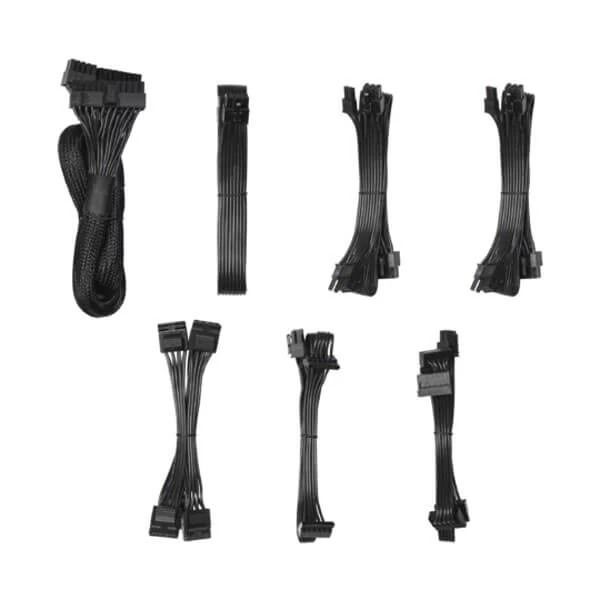

UltraFlex Cables
Fractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation — not fight it
Zero RPM
User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
More power, less heat
The Ion+ Platinum is rated 80 PLUS® Platinum Efficiency for its ability to offer electrical output of the highest quality, while generating as little heat as possible.
- 80 PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
- Outstanding output quality with tight voltage regulation and extremely low noise and ripple
- Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
Specifications
| Model | FD-PSU-IONP-560P-BK-EU |
| 80 PLUS Certification | Platinum |
| Modular cables | Fully modular |
| Cable type |
|
| Fan type | Customized 140 mm FDB bearing Fractal Design Dynamic Series fan |
| Maximum operating temperature at full load | 50° C |
| Semi-passive operation | Yes, user selectable (Zero RPM) |
| Sleep State Compliance | C6/C7 |
| Protection features | Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection |
| Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Life expectancy (MTBF) at max output load | 100,000 hours |
| Input voltage | 100-240V AC |
| Input frequency | 50-60 Hz |
| Input current | 10A/5A |
| Number of 12V rails | 1 |
| PSU specification compliance | ATX12V 2.4 / EPS12V 2.92 |
| Standby efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
| Unit measurements | 150 x 150 x 86 mm |
| Unit weight (unit only) | 1.61 kg |
| Connectors | |
| ATX 24-pin | 1 |
| PCIe 6+2 pin | 4 |
| Peripheral | 4 |
| ATX12V 4+4 pin / EPS12V 8-pin | 1 |
| SATA | 6 |
| Cable configuration (length between connectors) | |
| ATX 24-pin | 600 |
| ATX12V 4+4 pin | 700 |
| EPS12V 8-pin | N/A |
| PCIe 6+2 pin | 550+120 mm x2 |
| SATA | 400+120+120+120, 650+120 |
| Peripheral | 400+120+120+120 |
| DC output | |
| 3.3 V | 20A |
| 5 V | 20A |
| 3.3 V and 5 V combined | 110W |
| 12 V | 46.6A |
| -12 V | 0.3A |
| 5 V Standby (+5 Vsb) | 3A |
| Total Power | 560W |
| Other | |
| Package dimensions (W x H x D) | 325 x 110 x 210 mm |
| Package content | Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual |
| Package weight | 2.6 kg |
| Warranty | 10 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Product Type | Normal |
| color | Black |
| PSU Certification | Platinum |
| Wattage | 560W |
| Modular | Fully Modular |
| Brand | Fractal Design |
| Warranty | 7 Years |
| EAN Code | 7340172701958 |
