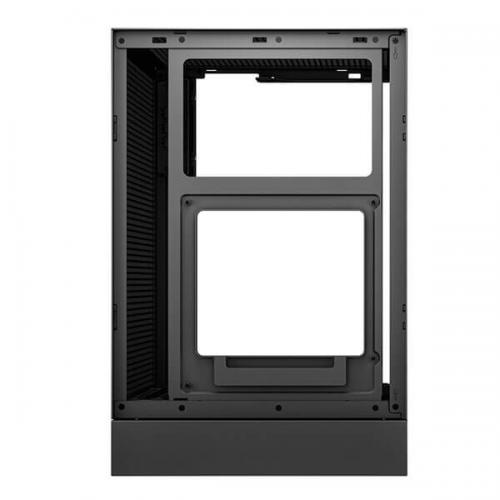

Deepcool CH170 Digital mITX Cabinet
Deepcool CH170 DIGITALÂ Vertical M-ITX Case, With Screen, Full Mesh panel, Supports Upto Mini-ITX Motherboard, 305mm GPU, 240mm Cooler, ATX PSU, Black | R-CH170-BKNPI0D-G-1

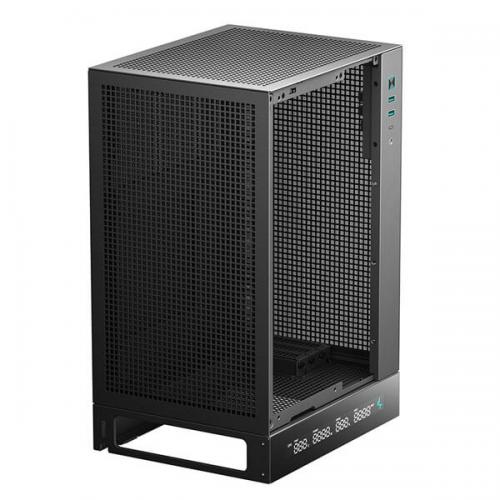

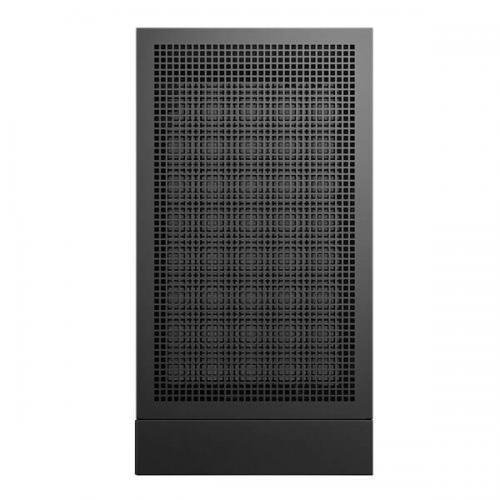

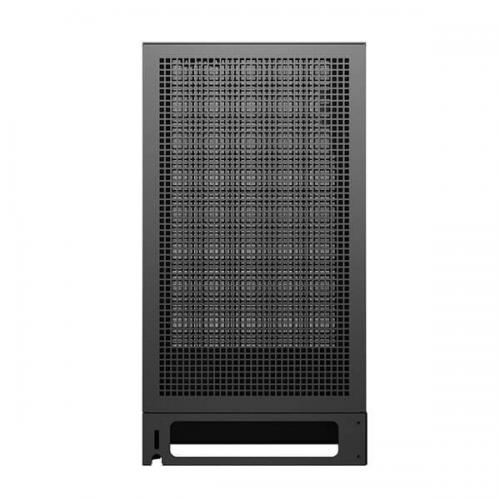

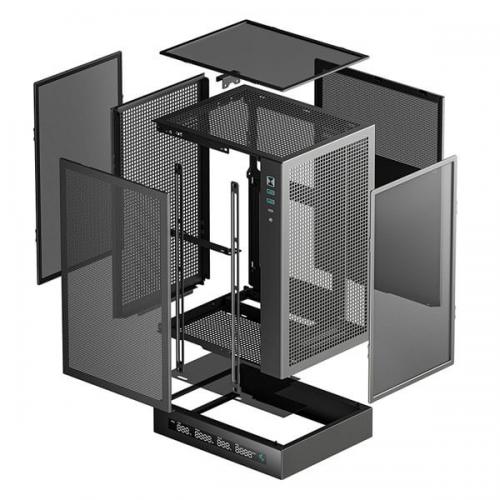

HIGH AIRFLOW PANELS
Mesh panels surround the CH170 DIGITAL from every side and create a high-airflow, small-form-factor case like no other.

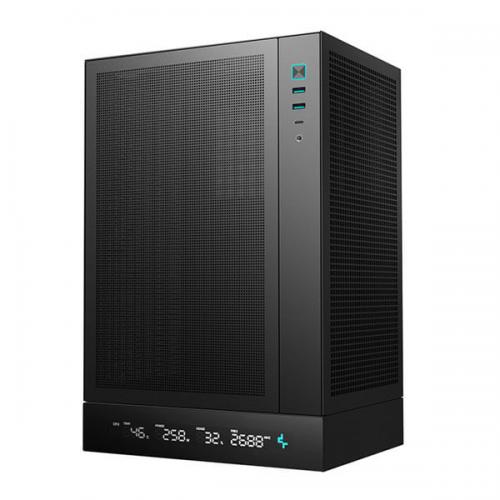

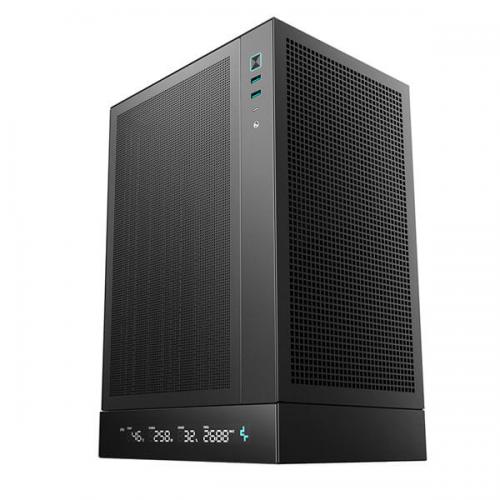

MULTIPLE DATA POINT DISPLAY
The CH170 DIGITAL has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.
FULL SIZED AIR COOLING
Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL can support giant air coolers up to 172mm in height!
OR GO LIQUID

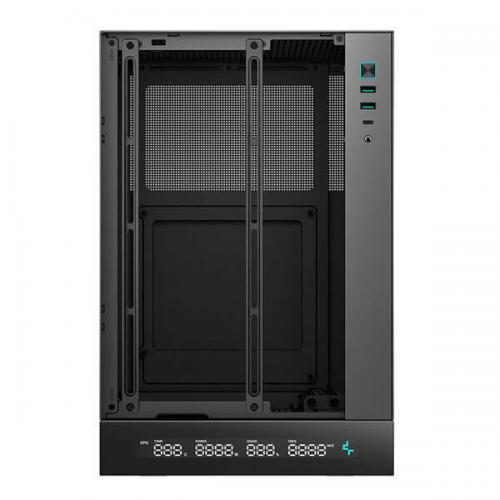

If liquid cooling is preferred, that is also an option with the CH170 DIGITAL. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.
NO ADDED GPU LATENCY!
Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!
Maximum GPU Length Based on PSU:
SFX/SFX-L：305mm
ATX：230mm
SFX/SFX-L：305mm
ATX：230mm
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL can support any of them up to 140mm.
QUALITY OF LIFE IMPROVEMENTS
Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL makes everything a little easier.
SPECIFICATIONS
| Product Dimensions | 380x200x250mm (L×W×H) |
| Net Weight | 3.4Kg |
| Materials | ABS + SPCC |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | USB 3.0 × 2, Audio × 1, Gen2 Type-C × 1 |
| 3.5" Drive Bays | 1 (2.5 SSD / 3.5 HDD / Front 120 FAN: Choose one of the three) |
| 2.5" Drive Bays | 1 (2.5 SSD / 3.5 HDD / Front 120 FAN: Choose one of the three) |
| Expansion Slots | 3 Slots |
| Pre-Installed Fans | None |
| Fan Support | Top: 1 × 120 mm Rear: 2 × 120 mm Bottom: 1 × 120 mm Side: 2 × 120 mm |
| Radiator Support | Side: 240mm |
| CPU Cooler Height Limit | 172mm |
| GPU Size Limit | Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
| Power Supply Type | ATX PS2 (maximum length: 140mm) / SFX / SFX-L |
| EAN | 6933412774228 |
| Part Number | R-CH170-BKNPI0D-G-1 |
| Weight | 2 kg |
|---|---|
| Brand | Deepcool |
| color | Black |
| Case Form Factor | Mini Tower |
| Fan Size | 120mm |
| Motherboard Size | ITX |
| Radiator Size | 240mm |
| Warranty | 1 Year |
| Pre-Installed Fans | 0 |
| EAN Code | 6933412774228 |
