DeepCool CG580 4F Panaromic ATX PC Cabinet – White
Sale!32%
Original price was: ₹12,000.00.₹8,200.00Current price is: ₹8,200.00. (Inclusive of GST)
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Get it by
Feb 09 Feb 13
Guaranteed safe & secure checkout
Description
Specifications
Additional information
Reviews (0)
Q & A
DeepCool CG580 4F Panaromic ATX PC Cabinet – White
The CG580 4F is a picture-sque single-chamber case crafted to elegantly display the most commonly used components. Equipped with 4 ARGB fans, support for 360mm radiators, and multiple fan configurations, it combines style with exceptional functionality. The design features a no A-pillar construction, along with glass side and front panels offering a 270°view, allowing builders to fully appreciate their hardware.
SCENIC VIEW
The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build. Your system will look more streamlined and cleaner thanks to the motherboard tray that can support mainstream motherboards models with back connectors from ASUS and MSI.
INNOVATIVE COOLING PLUS VISUAL EXPERIENCE

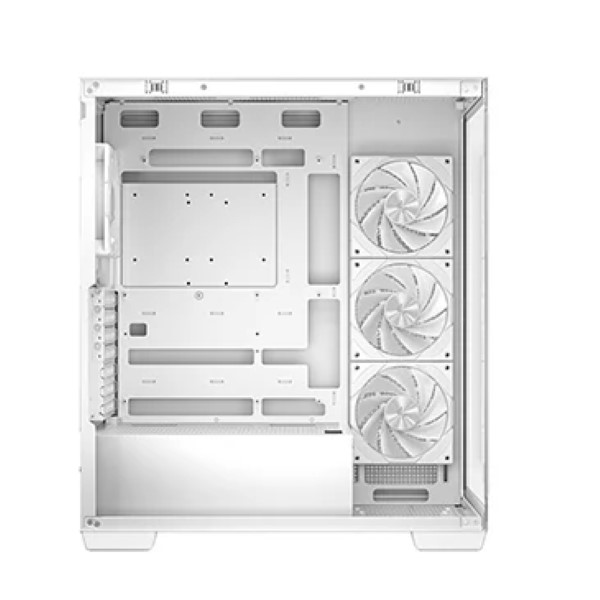

The CG580 4F is designed to stand out with its pre-installed cooling system, featuring three PWM ARGB reverse flow fans on the side and one PWM ARGB fan at the rear. This setup creates an efficient heat dissipation structure that enhances overall performance. The case also incorporates a dot matrix fan design with side frame lighting that supports motherboard synchronization, offering a unique technical atmosphere. By adjusting the fan settings, users can create captivating lighting modes such as a starry sky or meteor effect, transforming the interior of the case into a visual spectacle.
THE SUPPORT YOU NEED
The CG580 4F is designed to support a wide range of components, ensuring flexibility for any build. It supports a 210mm PSU and a 410mm GPU, with the option to fit a 262mm GPU when a radiator is vertically installed on the side of the motherboard. The case is compatible with ATX motherboards and features 7 expansion slots, along with 2 x 3.5″” drive bays and 2 x 2.5″” drive bays, providing ample space for storage and expansion.
EXCEPTIONAL COOLING CAPACITY
The CG580 4F is designed for maximum cooling efficiency, supporting a variety of radiator configurations, including up to 360mm on the top, 360mm on the side, and 140mm at the rear. It accommodates multiple fan setups, with options for 3×120mm or 2×140mm on the top, 3×120mm on the side, and 1×120mm or 1×140mm at the rear. The bottom offers a choice between a 3.5″” HDD or a 120mm fan, while the PSU shroud can house 2×120mm fans. Additionally, the case supports CPU coolers up to 176mm, ensuring your system stays cool under the most demanding conditions.
QUALITY OF LIFE FEATURES
With two USB 3.0 ports, one TYPE-C port and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. Wire management is also facilitated with a 33mm backplane. The magnetic filters on the top, bottom and side keep dust out and makes cleaning a little easier.
Specifications
| Product Dimensions | 437×235×501mm(L×W×H) |
| Net Weight | 8.7Kg |
| Materials | ABS+SGCC+Tempered Glass |
| Motherboard Support | ITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector) |
| Front I/O Ports | USB3.0×2、Gen2 Type-C×1、Audio&Mic×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 |
| Expansion Slots | 7Slots |
| Pre-Installed Fans | Side:3×120mm(PWM+ARGB Reverse Blade) Rear: 1×120mm(PWM+ARGB) |
| Fan Support | Front: NA Top: 3×120mm/2x140mm Side: 3x120mm Rear: 1×120mm/1x140mm Bottom: 1×120mm（3.5 HDD/120FAN :Choose one of two） PSU Shrouded: 2×120mm |
| Radiator Support | Front: NA Top: 120/140/240/280/360mm Side: 120/240/360mm Rear: 120/140mm |
| CPU Cooler Height Limit | 176mm |
| GPU Length Limit | 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side) |
| Power Supply Type | ATX PS2（maximum length: 210mm） |
| EAN | 6933412765189 |
| P/N | R-CG580-WHADA4-G-1 |
| Weight | 1 kg |
|---|---|
| Brand | Deepcool |
| color | White |
| Case Form Factor | Mid Tower |
| Motherboard Size | ATX, ITX, mATX |
| Radiator Size | 360MM |
| EAN Code | 6933412765189 |
| Warranty | 1 Year |
