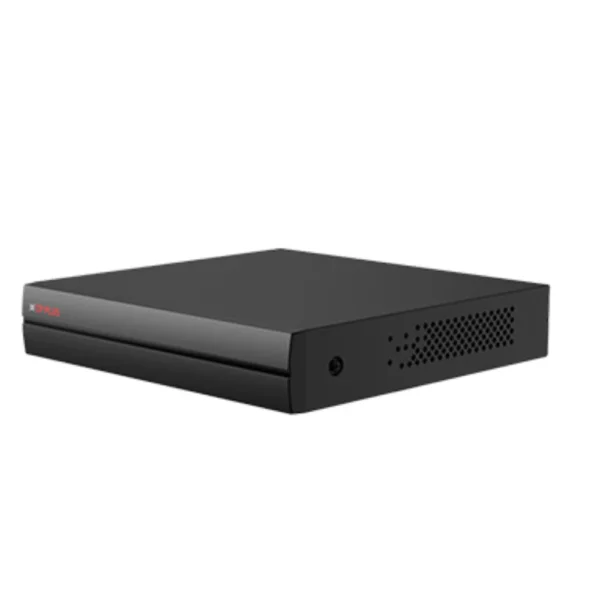

CP Plus CP-UVR-0401F1V-I 4-Channel Digital Video Recorder (DVR)
₹9,990.00 Original price was: ₹9,990.00.₹5,990.00Current price is: ₹5,990.00. (Inclusive of GST)
In stock
• Supports HDCVI, AHD, TVI, CVBS and IP video input
• Supports up to 6 channels of IPC access, including 2 additional IP channels + 4 analog channels,
with the option to convert all analog channels to IP
• The incoming bandwidth reaches 32 Mbps
• 4 Channels two-way talk over coaxial cable allows for seamless communication between the
camera, client and recorder
• 4 Channels IMD+ for analog channels or 6 Channels IMD by camera which allows the device to
trigger accurate alarms for humans and vehicles
• 4 Channels AI Coding saves on storage and bandwidth while
maintaining the details of targets in videos
• Instastream, H.265, H.264+, H.264 dual stream video compression
• Mobile Software: iCMOB, gCMOB
• CMS Software: KVMS Pro Lite
CP Plus CP-UVR-0401F1V-I 4-Channel Digital Video Recorder (DVR)
- System Overview
The newly developed Series All-in-one by CP PLUS has
brought a huge change to the surveillance industry
with an HD video recorder that is made to be
compatible with multiple access technology which
adds to the effectiveness of the existing security
solution by upgrading it. This Series All-in-one makes
it easier for the end-user by reducing the system cost
and simplifying the installation and use. The greater
quality and performance provided by the Series All-inone at such a pocket-friendly price make it ideal for
use in a wide range of applications, such as retail
stores, home protection, roads, and traffic signals,
among others.
Functions
IMD+ (Intelligent Motion Detection Plus)
IMD+ (Intelligent Motion Detection Plus) in CP Plus
DVRs uses advanced secondary filtering to accurately
identify human and vehicle movement. It effectively
reduces false alarms caused by rain, moving leaves,
insects, and lighting changes, ensuring reliable and
intelligent motion detection for enhanced surveillance accuracy.
Two-way talk
The Two-Way Talk feature enables real-time audio communication between the monitoring site and the camera location. It
allows users to listen and speak remotely, making it ideal for
visitor interaction, warnings, and on-site coordination, thereby
enhancing active surveillance and response.
Instastream
Instastream is CP PLUS’s optimized implementation of H.265
compression technology, designed to reduce bandwidth and
storage consumption without compromising video quality. It
ensures efficient video transmission and smooth recording performance, making it ideal for bandwidth-constrained surveillance networks.
gCMOB/ iCMOB
Designed to allow users to access and control live streaming
from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones,
the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn
cloud support; Playback; digital zoom ins; two-way talk, and
more.
KVMS Pro Lite
The KVMS Pro Lite is a hybrid security management software
that allows the management of various surveillance devices
such as cameras, DVRs/ NVRs, encoders/ decoders, etc. It is
released with the surveillance hardware and exclusively supports CP PLUS devices.
About CP PLUS
The brand that is on its way to lead the world when it comes to the security and surveillance industry, CP PLUS, keeps
bombarding the market with the most reliable range of products that have been designed carefully and methodically
to automate the whole surveillance and security process, no matter how big your premises are.
It was the initiative to help the public in the area where they are the most vulnerable and to empower the sense of safety
in our hearts that had conceptualized CP PLUS. And embarking on its mission to make the world a safer and more secure
place has taken the brand’s journey to unprecedented levels even when compared to international competitors.
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| User Interface | Web, Local GUI |
| IMD+ by DVR | 4 Channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| IMD By Camera | 6 Channels |
| Irregular Black Block Masking by DVR | 1 Channel |
| Analog Camera Input | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect |
| Camera Input | 1. CVI: 5MP@25fps, 5MP@20fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps 2. TVI: 5MP(2560 x 1944)@20fps, 5MP(2960 x 1665)@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps |
| IP Camera Input | Up to 6 Channels of IPC access 2 IP channels by default + 4 Channels (analog channels are converted to IP channels) Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps |
| Stream Capability | Dual stream |
| Video Frame Rate | Main stream: 5MP Mode: 4 Channels 5MP@(1fps-6fps), others 5MN@(1fps-12fps) 5M-N Mode: 5M-N@(1fps–12fps), 4M-N/ 1080p@(1fps–15fps), 1080N/720p/960H/D1/CIF@(1fps 25/30fps) Sub stream: D1/CIF@(1fps–15fps) |
| Bit Rate | 32 kbps–6144 kbps |
| Audio Sample Rate | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Display Split | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
| Video Compression | AI Coding, Instastream, H.265, H.264+, H.264 |
| Audio Compression | G.711a, G.711u, PCM, AAC |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm, Server, InstaOn, Auto Connect, IP Search, ONVIF 24.12 (Profile T, Profile S, Profile G), CGI, SDK |
| Smart Phone | iOS, Android |
| Browser | Chrome, IE; Safari, Edge, Firefox |
| Record Mode | General, Alarm, Motion detection |
| Recording Playback | 1/4 |
| Backup Mode | USB device and network |
| Playback Mode | Instant playback, General playback, Event playback, Tag playback, Smart playback |
| General Alarm | Motion detection, HDCVI alarm, Camera external alarm, Network alarm, PIR alarm |
| Abnormality Alarm | Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline |
| Intelligent Alarm | IMD+ |
| Alarm Linkage | Record, Snapshot (panoramic), IPC external alarm output, Audio, Buzzer, Log, Preset, Email |
| Audio Input | 1 Channel RCA 4 Channels BNC (Coaxial Audio) |
| Audio Output | 1 Channel RCA |
| Two-way Talk | Coaxial two-way talk: 4-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
| Disk Interface | 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature |
| Interface Ports | 2 USB (2 rear USB 2.0 ports) |
| Ethernet | 1 (10/100 Mbps Ethernet port, RJ-45) |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <4 W (without HDD) |
| Operating Temperature | –10°C to +45°C (+14°F to +113°F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –20°C to +60°C (–4°F to +140°F) |
| Dimensions | 197.0 mm × 204.3 mm × 41.5 mm |
| Weight | 580g |
| Weight | 1 kg |
|---|---|
| Brand | CP PLUS |
| Processor Model | Industrial-grade processor |
| Numbers of ports | 4ch |
| Storage Capacity | 8TB |
| Warranty | 1 Year |
| color | Black |
| Connector | HDMI, VGA |
| Resolution | 1280 × 720, 1280×1024, 1920 × 1080 |
| EAN Code | 12342320000433 |
