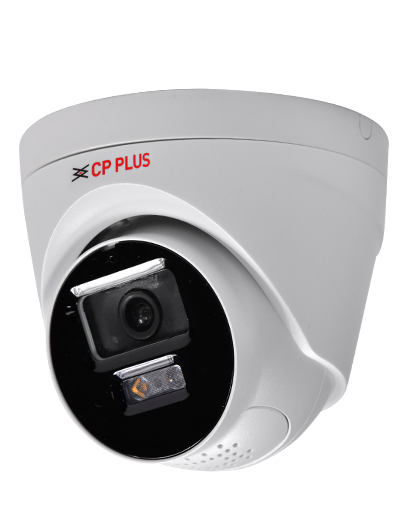

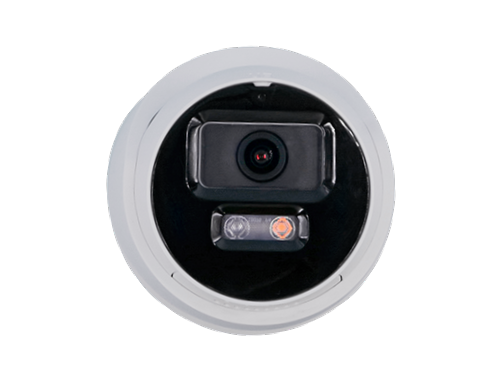

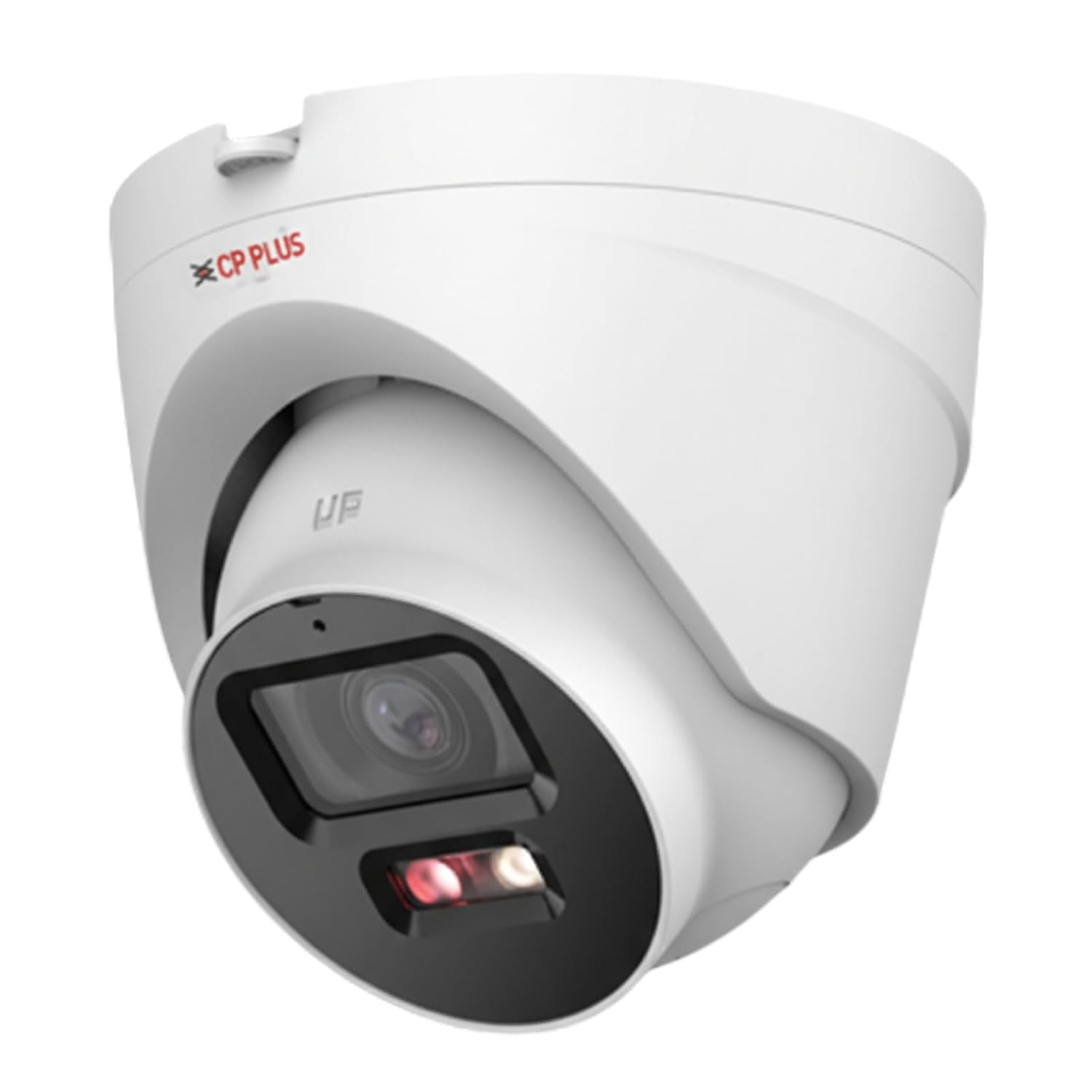

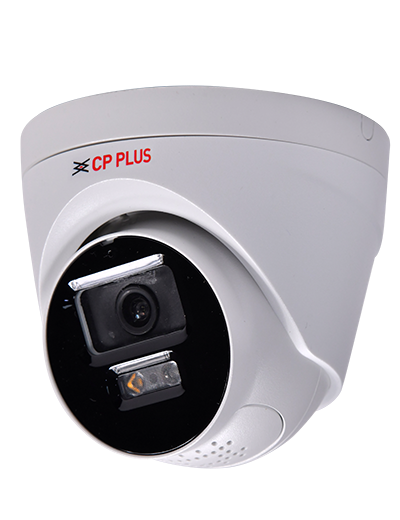

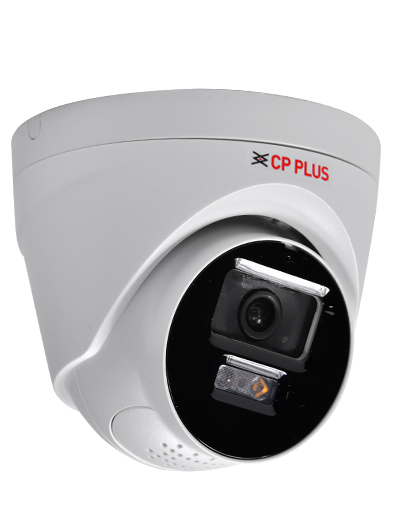

CP PLUS 2MP Full HD IR Dome CCTV Camera with Built-in Mic & Color Night Vision – CP-UNC-DA21L3B-LQ

RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.

Original price was: ₹3,599.00.Current price is: ₹3,079.00. (Inclusive of GST)

  • 1/2.7″ 2MP PS CMOS Image Sensor (0.9407 Centimeters)
  • Max. 2MP (1920 × 1080)@1–25/30 fps
  • Instastream, H.265, H.264, H.264H, H.264B, MJPEG
  • Support Triple stream
  • Support Built-in Mic, Built-in speaker
  • 3.6mm fixed Lens
  • DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
  • IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE,



47 People watching this product now!

In stock

SKU: CP-UNC-DA21L3B-LQ-0360

System Overview

The CP PLUS Advanced Dual Light Cameras provide
the perfect solution for elevating your security system. Designed for superior adaptability, these cameras support multiple illumination modes and advanced
monitoring features, ensuring unmatched performance in various environments.

CTC Technology:

CP PLUS Trusted Core Technology is a multi-layered security
architecture that brings together the best of cyber security
practices and technological intelligence. It is not just an enhancement; it is a complete redefinition of how surveillance
should function in today’s digital landscape – more intelligent,
more secure, and more reliable than ever before.

True Day/Night (ICR)

When the scene is too dark, the image is captured by
illuminating an infrared light through the camera onto
the scene that greatly helps with making the scene visible for the lens. It delivers color images during the day
and automatically switches to the monochrome feature
as the scene darkens.



Regions of Interest

Regions of Interest (ROI) is a user defined feature that
allows the operator to monitor specific areas of a scene
while still maintaining overall situational awareness of
less important areas.



Smart IR

Smart IR technology can display image in the environment of
low illuminance or completely dark environment. According
to the distance of the targets, the camera adjusts IR LEDs
intensity automatically to display the details of the moving
target.

Instastream

This camera has been designed with the latest and most efficient innovation among the standard video compression designs. Smart encoding algorithms developed by CP PLUS help
in saving up to 70% more bandwidth than H.265 along with
making it more beneficial for minimizing bandwidth and storage costs. It enhances video coding efficiency while providing
high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame.



About CP PLUS

The brand that is on its way to lead the world when it comes to the security and surveillance industry, CP PLUS, keeps
bombarding the market with the most reliable range of products that have been designed carefully and methodically
to automate the whole surveillance and security process, no matter how big your premises are.
It was the initiative to help the public in the area where they are the most vulnerable and to empower the sense of safety
in our hearts that had conceptualized CP PLUS. And embarking on its mission to make the world a safer and more secure
place has taken the brand’s journey to unprecedented levels even when compared to international competitors.





Image Sensor1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters)
Effective Pixels1920 (H) × 1080 (V)
Minimum Illumination0.001 [email protected] (Color, 30 IRE), 0.0001 [email protected] (B/W, 30 IRE), 0 lux (IR on)
Angle AdjustmentPan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
RAM128 MB
White BalanceAuto, Natural, Street lamp, Outdoor, Manual, Regional custom
ROM128 MB
Gain Control (AGC)Auto/Manual
Lens TypeFixed-focal
Max. ApertureF1.4
Lens MountM12
Close Focus Distance1.1 m
Day/NightAuto(ICR)/Color/B/W
DORI Distance53.8 m (Detect), 21.5 m (Observe), 10.8 m (Recognize), 5.4 m (Identify)
Lens3.6mm fixed Lens
S/N Ratio>58dB
Back Light CompensationBLC/ HLC/ DWDR
IR ControlAuto, Manual
IR Number1 IR LED, 1 Warm light
IRIR Range of 30 Mtr.
Warm LightWarm Light Range of 30 Mtr.
Smart IRSupport
Video CompressionInstastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Stream CapabilityTriple stream
Frame RateMain stream: 2MP (1920 × 1080)@1–25/30 fps Sub stream 1: 720P (1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps
Angle of viewH: 86°, V: 46°, D: 103°
Smart searchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Resolution2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
AudioBuilt-in Mic
Image Rotation0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower)
Video FormatPAL/NTSC
ROISupport (4 areas)
Audio CompressionG.711a, G.711Mu, PCM,
ProtocolFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
EthernetRJ-45 (10/100 Base-T)
Iris ControlFixed
IMD (Intelligent motion detection)Support the classification and accurate detection of human and vehicle
Mirror FunctionSupport
Bit Rate ControlCBR/VBR
Bit RateH.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
Alarm EventNetwork disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception
BrowserIE, Chrome, Firefox
User/Host6 (Total bandwidth: 36 M)
CertificatesISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source12 VDC/PoE (802.3af)
Power ConsumptionBasic: 1.8 W (12 VDC), 2.5 W (PoE); Max.: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker)
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity≤95% (RH), non-condensing
Storage Humidity≤95%(RH), non-condensing
CasingMetal + Plastic
Dimensions100.9 mm × 109.9 mm
Weight320g
Weight1 kg
BrandCP PLUS
colorWhite
Warranty1 Year
Power Consumtion1.8 W
Audio ChannelBuilt-in Mic
Resolution1280 × 960, D1, 704 × 480, 1920 × 1080, VGA, 1280 × 720, 640 × 480, 720P, CIF, 2MP, 352 × 288, 352 × 240, 1.3MP
RAM Size128 MB
ConnectorWired, RJ45
Cable Type3+1 CABLE
