Corsair SF850 80 PLUS Platinum Fully Modular 850W SFX Power Supply (Black)
Sale!57%
- 850W Single +12V Rail
- 92mm Cooling Fan
- Intel ATX12V Version 3.1
- 1 x 16-Pin 12VHPWR Connector
- 2 x PCIe Connectors
- 8 x SATA Connectors
- 3 x PATA Connectors
- Sleeved Cable Design
- Modular Form Factor
- Includes SFX to ATX Bracket
Original price was: ₹39,999.00.₹17,099.00Current price is: ₹17,099.00. (Inclusive of GST)
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Get it by
May 18 May 22
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Q & A

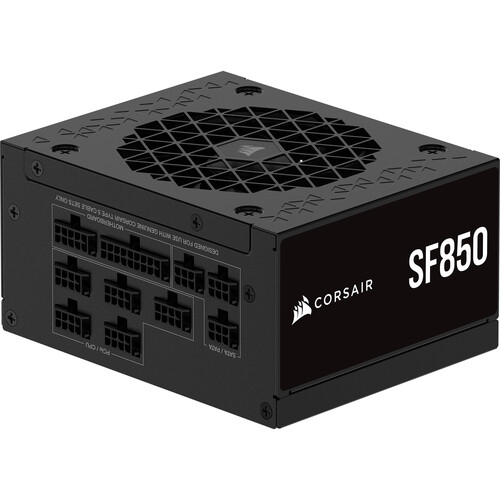

SF Series SF850 Fully Modular 80 PLUS Platinum SFX Power Supply
Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.Includes
- 80 PLUS Platinum rated efficiency
- ATX 3.1 compliant, supporting PCIe 5.1
- Fully modular, Type-5 Micro-Fit PSU connectors
- 92mm PWM cooling fan with Zero RPM mode
SMALL AND MIGHTY
Don’t let the size fool you – this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your SFF PC, even under high-stress conditions.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.PCIe 5.1 12V-2×6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

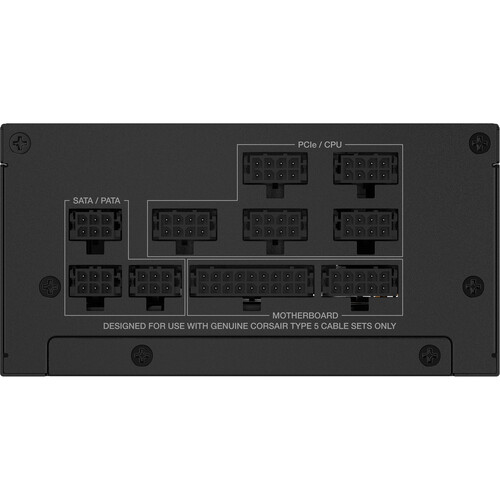

FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.
SF850 POWER TABLE
WORLD-CLASS SUPPORTOur award-winning service means you can enjoy your gear worry-free.
SF850 POWER TABLE
| MODEL | RPS0175 | |
|---|---|---|
| Part No. | 75-005385 | |
| AC Input Rating | ||
| AC Input | 100–240V | |
| Input Current | 10A-5A | |
| Frequency | 47~63Hz | |
| Max Load | Max Output | |
| +3.3V | 20A | 130W |
| +5V | 20A | |
| +12V | 70.8A | 850W |
| +5VSB | 3A | 15W |
| TOTAL POWER | 850W | |
SF850 CABLE LISTING
| QTY | Cable | Connectors per cable |
Total connectors |
Connector spacing |
Total length |
Cable Type |
|---|---|---|---|---|---|---|
| 1 | Modular ATX Cable (24-pin) |
1 | 1 | – | 300mm (± 10mm) |
Individually Sleeved |
| 2 | EPS / ATX 12V 8-pin (4+4) |
1 | 2 | – | 400mm (± 10mm) |
Individually Sleeved |
| 3 | PCIe 8-pin (6+2) |
1 | 3 | – | 400mm (± 10mm) |
Individually Sleeved |
| 1 | 12VHPWR (12+4) pin |
1 | 1 | – | 400mm (± 10mm) |
Individually Sleeved |
| 1 | SATA (4 Straight SATA) |
4 | 4 | 100mm, 115mm, 115mm, 115mm |
445mm (± 10mm) |
Individually Sleeved |
| 1 | SATA (4 Right SATA) |
4 | 4 | 100mm, 115mm, 115mm, 115mm |
445mm (± 10mm) |
Individually Sleeved |
| 1 | PATA (3 PATA) |
3 | 3 | 100mm, 115mm, 115mm |
330mm (± 10mm) |
Individually Sleeved |
SPECIFICATIONS
| Model | Corsair SF850 |
| Power | 850W |
| Efficiency | 80 PLUS Platinum |
| Modularity | Fully Modular |
| Form Factor | SFX |
| Fan | 92mm PWM Fan with Zero RPM Mode |
| Connectors |
1 x 24-pin ATX1 x 4+4-pin EPS 6 x 6+2-pin PCIe 1 x 12+4-pin PCIe 8 x SATA 3 x Molex |
| Certifications | ATX 3.1, 80 PLUS Platinum |
| Weight | 1 kg |
|---|
