Cooler Master Ncore 100 Max ITX Cabinet
Sale!52%
- The MAX, Revolutionized: Continuing the MAX’s heritage, the NCORE 100 MAX boasts effortless installation and distinctive aesthetics through its seamlessly integrated components.
- SFF Made Accessible: At 15.7 liters in volume, pre-routed cables, and extensive hardware compatibility, the NCORE simplifies the process of PC building
- Ultimate transformation: The expandable design extends the overall width from 155mm to 172mm, creating ample room to accommodate even some of the largest GPUs available
- Tailor-made power solution: It incorporates an 850W SFX Gold ATX 3.0 PSU with custom-length cables purposefully designed to meet all performance requirements.
- Custom PCIe 4.0 Riser: Equipped with a premium custom-sized PCIe 4.0 Riser Cable, for maximum compatibility and performance with all graphics cards.
Original price was: ₹65,499.00.₹31,600.00Current price is: ₹31,600.00. (Inclusive of GST)
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Get it by
Feb 09 Feb 13
Guaranteed safe & secure checkout
Description
Specifications
Additional information
Reviews (0)
Q & A
The compact Case for powerful PC
Discover the Ncore 100 MAX by Cooler Master: a compact, high-performance addition to the MAX series. It offers advanced cooling, power solutions, and a small form factor with anodized aluminum panels. Accommodating up to 3.9 Slot GPU, it ensures compatibility with the latest processors, delivering unparalleled performance without sacrificing design. Experience versatility, compatibility and peak performance with the sleek, space-saving Ncore 100 MAX.
Elevate your setup today!
CUSTOM AIO COOLING
A custom 120mm AlO cooling solution works well with the latest i9 and R9 CPUs and features both AMD AM5/AM4 and Intel LGA1700 sockets.
HIGH-END GPU COMPATIBILITY
Includes support for high performance, triple-slot GPUs up to 336mm in length and 140mm in height, with four included 6+2 pin power cables and a vertical mount design.
TAILOR-MADE POWER SOLUTION
Cooler Master’s V SFX Gold 850W ATX 3.0 PSU covers all your power needs and comes with custom length cables.
ULTRA-SMALL FOOTPRINT
The NCORE 100 MAX is super compact, with a footprint about the size of a small booklet.
PREMIUM ALUMINUM PANEL
An anodized aluminum shell makes the Ncore 100 MAX stand out as a desktop work of art.
AIRFLOW
The NCORE 100 MAX layout has been meticulously designed to offer the most efficient thermal layout.
This layout pulls in air from the standing sides of the case, which are its largest surfaces.

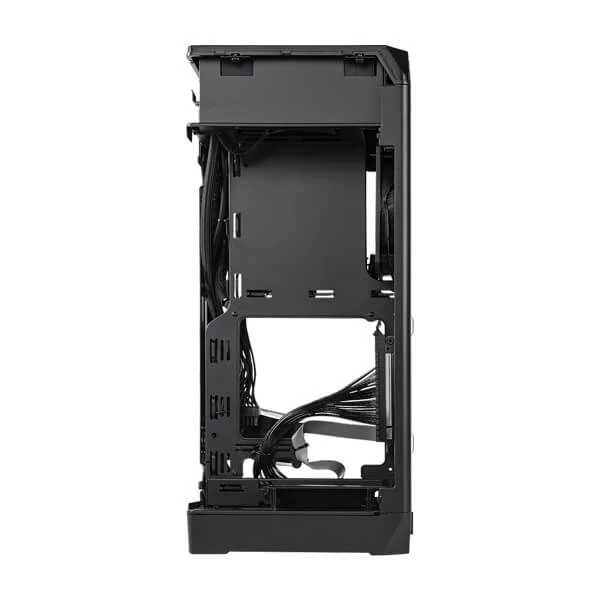

OPEN FRAME DESIGN
Eliminating three surfaces usually included in a standard case to let you approach installation from numerous angles. Even tha cable cover features tool-less removal, for the utmost in accessibility.
PRE-ROUTED CABLES
Includes custom length, pre-routed cables which have been placed right where you need them and are ready to be connected to your motherboard and GPU.
Innovative Extendable Mechanism
Extendable width from 155mm to 172mm allows for 4 GPU slots and RTX 4090 compatibility or 3 slots for a super-small form factor.
Easy Installation
Pre-routed cables ensure the installation process is as smooth as can be.
Ultra-silent Performance
A custom Silencio fan provides total control over noise output and cooling performance.
Minimalist Design, Maximalist Power
The Ncore 100 MAX has been designed with a minimalist industrial design that would look right at home in a design studio. The MAX also includes ample ventilation and adjustable space to house enough power to satisfy even the most power-hungry use cases such as gaming and creative works.
Minimum effort, maximum payoff
Small form factor PC are notoriously difficult to install because of the cramped space. Not the Ncore 100 MAX, it is the easiest Compact case on the market to build in just pop in your motherboard and GPU through the open frame design and connect the pre-routed cables.
Specifications
| Product Number | NR100-MNNN85-SL0 |
| Exteriror Color | NCORE 100 MAX: Dark grey |
| Materials – Exteriror | Steel, Plastic, Aluminum |
| Materials – Side Panel | Aluminum |
| Dimensions (L x W x H) | Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions), Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions), 155mm x 212mm x 457mm (Excl. Protrusions), 172mm x 212mm x 457mm (Excl. Protrusions) |
| Volume | 15.80L (Normal mode), 17.54L (Expansion mode) |
| Motherboard Support | ITX |
| Expansion Slots | 3x PCIe Slot mounting |
| Drive Bays – 2.5″ SSD | 1 |

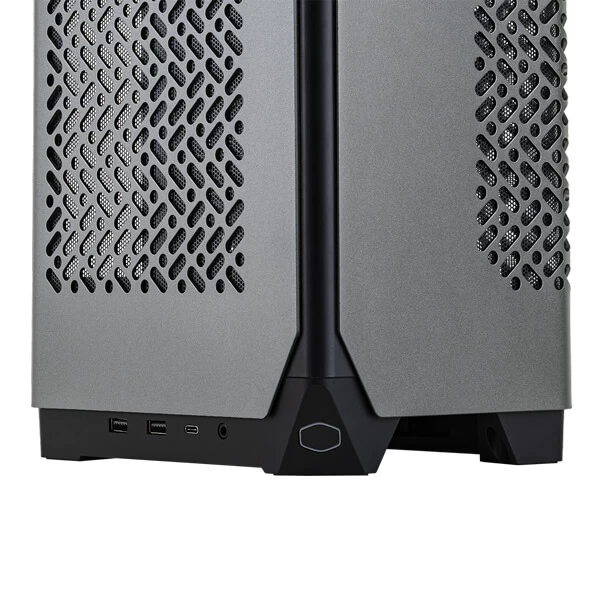

| I/O Panel | 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C, 1x Audio Combo (Audio In / Out 3.5mm) |
| Included Accessories | 1x 240mm PCIe 4.0 x16 |
| Included CPU Cooling Solution | 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM) |
| Included Power Supply Unit | V SFX Gold 850W ATX 3.0 |
| Pre-installed Fan(s) – Rear | 120mm SickleFlow PWM Fan x1 (Max. 1800RPM) |
| Clearances – CPU Cooler | 48mm |
| Clearances – Power Supply | 100mm |
| Clearances – RAM | 48mm |
| Clearances – Graphics Card | 337mm x 62mm x 180mm (Normal, 3.0 Slot thick), 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick), (Maximum space including GPU power connector) |
| Cable Routing – Behind MB Tray | 11mm |
| Dust Filters | Side Panels |
| Power Supply Support | SFX |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Weight | 1 kg |
|---|---|
| Brand | Cooler Master |
| Motherboard Size | ITX |
| Product Type | Normal |
| Radiator Size | 120mm |
| Pre-Installed Fans | 1 |
| Warranty | 2 Years |
| EAN Code | 4719512143582 |
