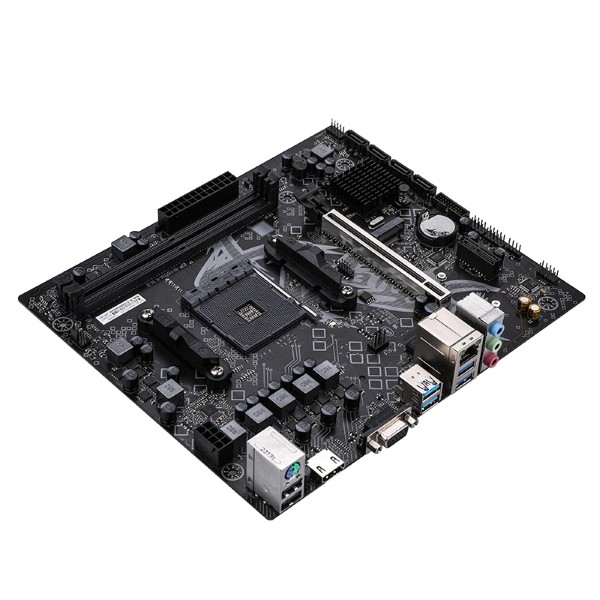

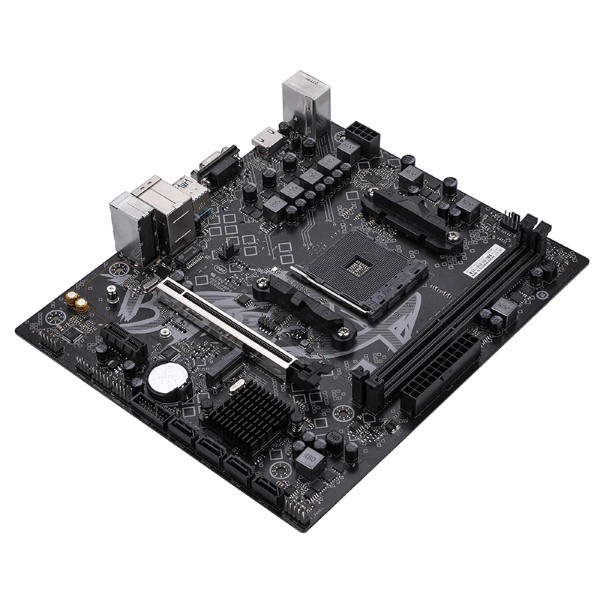

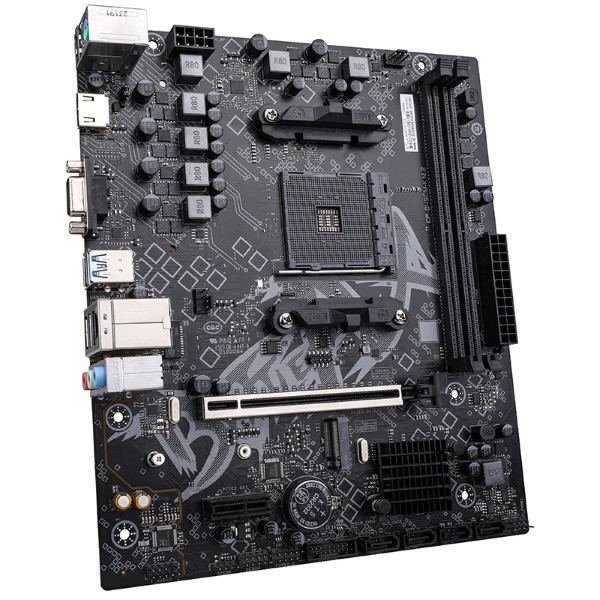

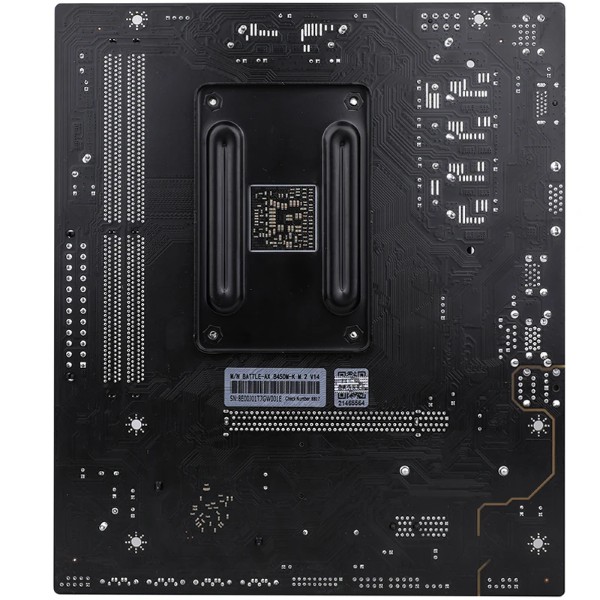

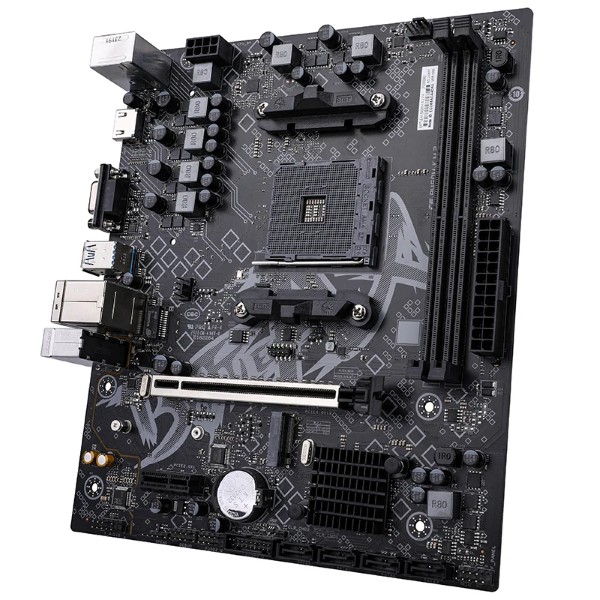

Colorful BATTLE-AX B450M-K M.2 V14
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹39,000.00.₹5,490.00Current price is: ₹5,490.00. (Inclusive of GST)
- Provide 1 PCIe 3.0 x4 M.2 SSD slot
- Provide 4 USB 3.2 Gen 1 Type-A high-speed rear interfaces
- Provide 2 USB 2.0 interfaces
- Equipped with RTL8111H Gigabit wired network card
- Provide HDMI+VGA display interface
- Six major protective technologies ensure more stable product operation
- Strict testing of 200 processes with guaranteed quality
- Comprehensive upgrade of PCB atomization process
134
People watching this product now!
In stock
Colorful BATTLE-AX B450M-K M.2 V14
Feature Highlights:
Provide 1 PCIe 3.0 x4 M.2 SSD slot
Provide 4 USB 3.2 Gen 1 Type-A high-speed rear interfaces
Provide 2 USB 2.0 interfaces
Equipped with RTL8111H Gigabit wired network card
Provide HDMI+VGA display interface
Six major protective technologies ensure more stable product operation
Strict testing of 200 processes with guaranteed quality
Comprehensive upgrade of PCB atomization process
| Model | BATTLE-AX B450M-K M.2 V14 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | AMD B450 |
| Processor | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 2 DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory) - Support DDR4-4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133MHz memory - Support Extreme Memory Profile (XMP) memory technology - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces - M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel) |

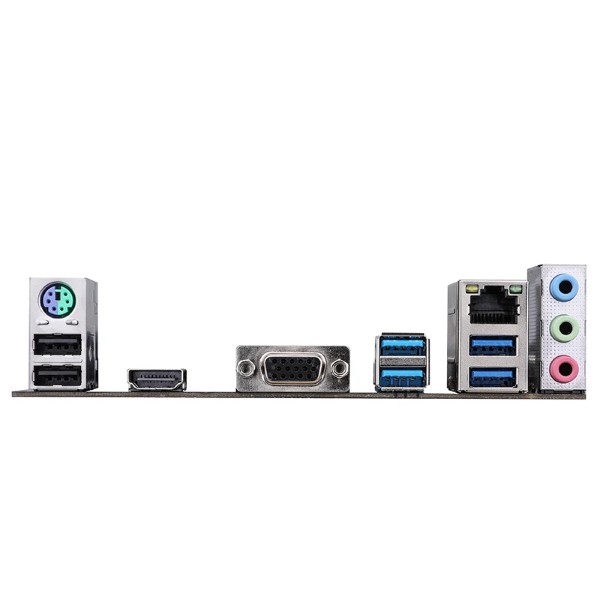

| Board I/O | Rear I/O : -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×Gigabit network interface -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×System fan pin -1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Digital audio pin -1×Clear CMOS jumper -1×BIOS burner pin -1×Debug light pin -1×USB live control jumper |
| Expansion Slots | 1×PCIe 3.0 x16 slot 1×PCIe 2.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8111H Gigabit Network Card |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Configuration | M-ATX 230mm x 197mm |
| Weight | 2 kg |
|---|---|
| Brand | Colorful |
| color | Black |
| Motherboard Size | mATX |
| Warranty | 3 Years |
