CISCO DESIGNED Business CBS350-24XT Managed Switch | 24 Port 10GE | 4x10G SFP+ Shared | Limited Lifetime Hardware Warranty (CBS350-24XT-NA)
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹349,990.00.₹264,900.00Current price is: ₹264,900.00. (Inclusive of GST)

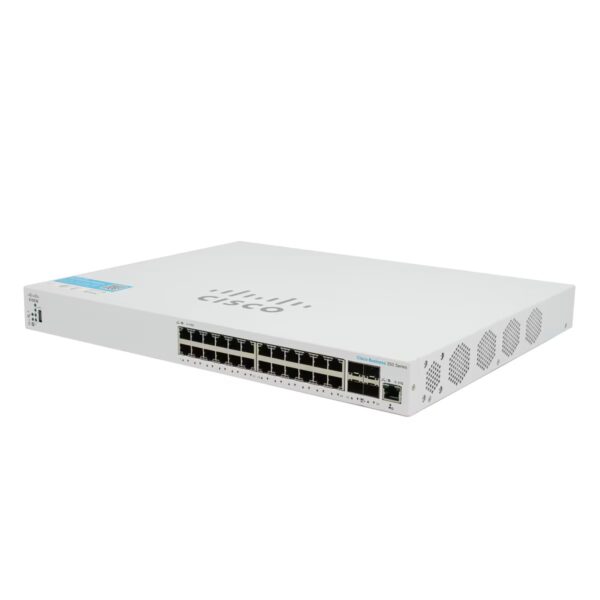

CISCO DESIGNED Business CBS350-24XT Managed Switch | 24 Port 10GE | 4x10G SFP+ Shared | Limited Lifetime Hardware Warranty (CBS350-24XT-NA)
The Cisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45 (NA) is a high-performance networking solution ideal for enterprises that require advanced capabilities and lightning-fast connectivity. The CBS350-24XT is part of Cisco’s Business 350 Series, which provides enterprise-grade management capabilities and comprehensive security features in a small package. This switch has 24 10-Gigabit Ethernet ports that accept both RJ45 and SFP+ connections, providing great speed and versatility for demanding network environments. Its extensive feature set makes it an excellent solution for enterprises who want to future-proof their network infrastructure while retaining high performance and security. The CBS350-24XT is an excellent choice for businesses looking for a high-performance, future-proof networking solution that offers lightning-fast speeds, extensive capabilities, and strong security in a small package.
Key Features of Cisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45
• 24 10-Gigabit Ethernet Ports delivers ultra-high-speed connectivity for bandwidth-intensive applications.
• Flexible Port Configuration supports both RJ45 and SFP+ connections for versatile network design.
• Advanced Layer 2 and Layer 3 Features that supports static routing, VLAN, QoS, and more.
• Robust Security includes 802.1X authentication, ACLs, and DHCP snooping.
• Supports Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption.
• Flexible Management offers web GUI, CLI, and SNMP management options.
• Cisco Business Dashboard Compatible enables easy network management and monitoring.
• Advanced QoS ensures optimal performance for voice, video, and data applications.
• IPv6 Support ensures future-proofing for next-generation IP networks.
• Stacking Capability supports stacking of up to 4 units for simplified management.
• High Reliability includes features like STP, RSTP, and MSTP for network redundancy.
• Voice VLAN Support simplifies IP telephony deployments.
• Limited Lifetime Warranty backed by Cisco’s renowned support and service.
• Compact Design features 1U rack-mountable form factor for efficient space utilization.
• Jumbo Frame Support handles large data transfers efficiently with up to 9K byte frame size.
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS350-24XT-NA-RF |
| Product Name | Cisco CBS350-24XT 24-Port 10G Managed Network Switch with SFP+/RJ45 |
| Product Type | Networking Switch |
|
Enclosure Type
|
Rack-mountable
|
|
Subtype
|
10 Gigabit Ethernet
|
|
Ports
|
10 x 10GBase-T + 4 x combo 10 Gigabit SFP+/RJ-45
|
|
Performance
|
Switching capacity: 480 Gbps ¦ Forwarding performance (64-byte packet size): 240 Mpps
|
|
Capacity
|
RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 3
|
|
MAC Address Table Size
|
16K entries
|
|
Jumbo Frame Support
|
2KB
|
|
Max Units In A Stack
|
4
|
|
Routing Protocol
|
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
|
|
Remote Management Protocol
|
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
|
|
Encryption Algorithm
|
SSL
|
|
Authentication Method
|
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
|
|
Features
|
Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
|
|
Processor
|
X ARM: 800 MHz
|
|
RAM
|
512 MB
|
|
Flash Memory
|
256 MB
|
|
Status Indicators
|
Status, link/activity/speed
|
|
Interfaces
|
24 x 10GBase-T RJ-45 ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x USB Type A ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45
|
|
Power Device
|
Internal power supply
|
|
Voltage Required
|
AC 100-240 V (50/60 Hz)
|
|

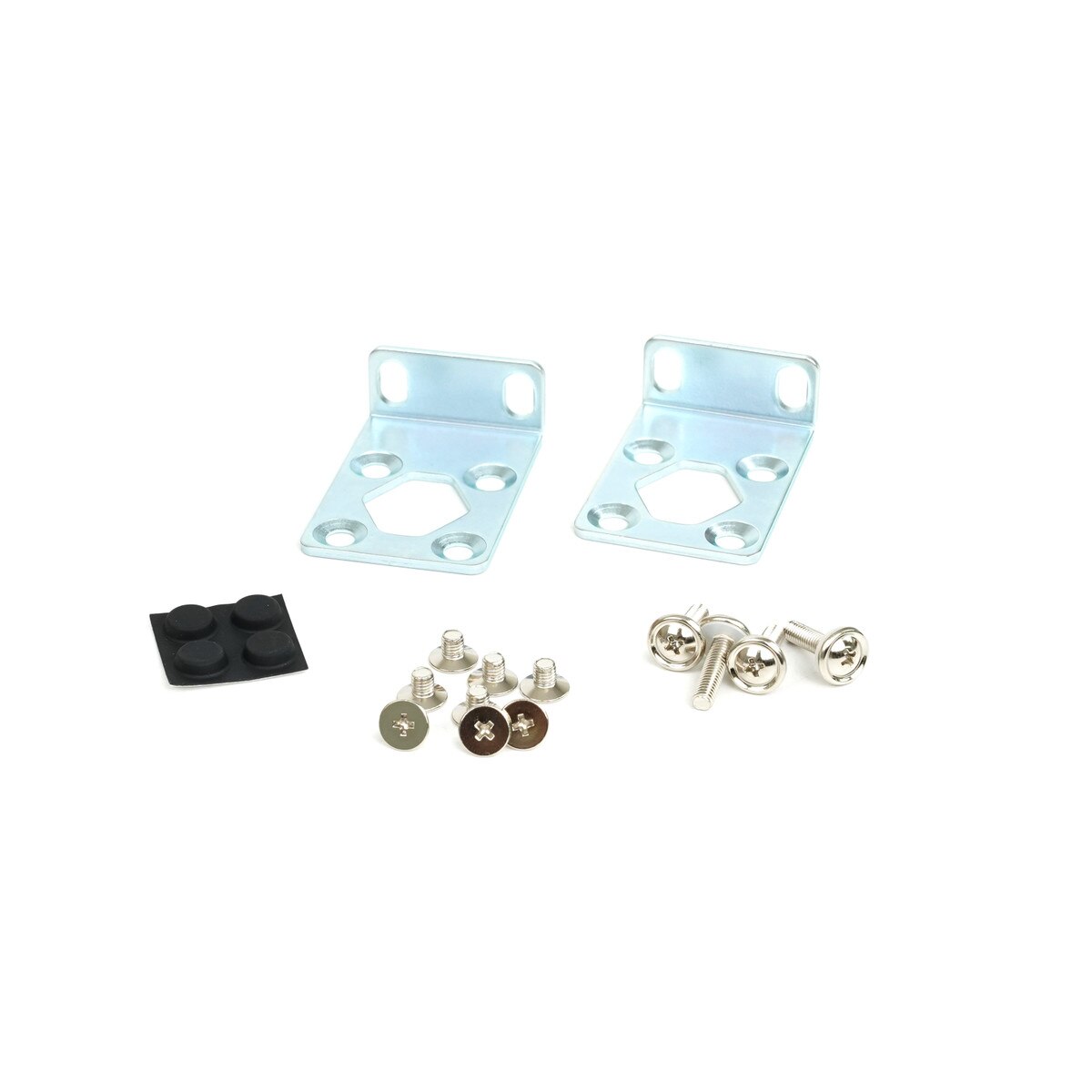

Rack Mounting Kit
|
Included
|
|
MTBF
|
556,642 hours
|
|
Compliant Standards
|
UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6
|
|
Localization
|
Colombia, Canada, Chile, Mexico, Latin America, United States
|
|
Width
|
17.3 in
|
|
Depth
|
13.8 in
|
|
Height
|
1.7 in
|
|
Weight
|
11.24 lbs
|
|
Service & Support
|
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
|
|
Min Operating Temperature
|
32 °F
|
|
Max Operating Temperature
|
122 °F
|
|
Humidity Range Operating
|
10 - 90% (non-condensing)
|
|
Min Storage Temperature
|
-13 °F
|
|
Max Storage Temperature
|
158 °F
|
|
Humidity Range Storage
|
10 - 90% (non-condensing)
|
| Weight | 2 kg |
|---|
