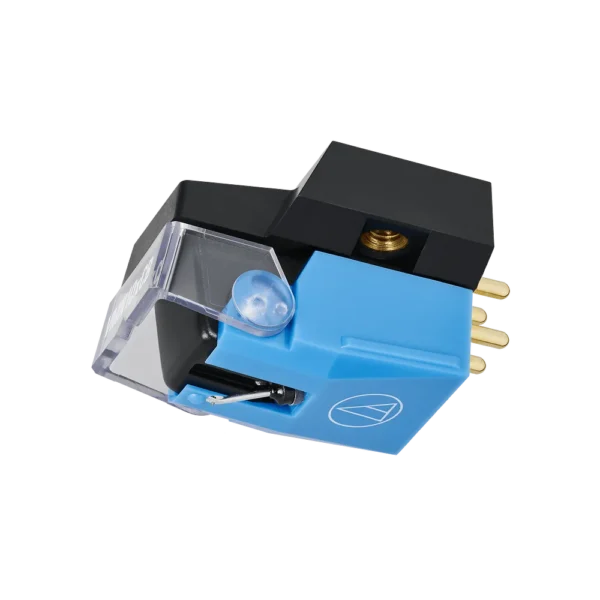

Audio-Technica AT-VM610X MONO Dual Moving Magnet Cartridge
Original price was: ₹17,184.00.₹15,199.00Current price is: ₹15,199.00. (Inclusive of GST)
In stock
Audio-Technica AT-VM610X MONO Dual Moving Magnet Cartridge
The Audio-Technica AT-VM610xMONO is a high-quality Dual Moving Magnet (VM) mono phono cartridge designed specifically for accurate and enjoyable playback of monaural vinyl records. It combines Audio-Technica’s VM cartridge technology with a bonded conical stylus to provide reliable groove tracking and clear, focused mono reproduction.
The cartridge features a 0.6 mil bonded conical stylus mounted on an aluminum pipe cantilever. This stylus profile is designed for dependable contact with the record groove, making the AT-VM610xMONO suitable for compatible mono vinyl collections. It offers a 20–20,000 Hz frequency response and a 5.0 mV output voltage, providing straightforward compatibility with standard MM phono inputs.
With a recommended tracking force of 2.0 g and an operating range of 1.8–2.2 g, the cartridge is designed for stable and consistent tracking when correctly installed and aligned. Its 47 kΩ recommended load impedance and 150–250 pF recommended load capacitance make it suitable for conventional MM-compatible phono systems.
The AT-VM610xMONO also features threaded M2.6 mounting holes and a compact 7.2 g construction for secure installation on compatible headshells and tonearms. The stylus can be replaced separately with the AT-VMN10xCB, allowing the cartridge body to remain in use while maintaining playback performance over time.
With its dedicated mono configuration, bonded conical stylus, aluminum cantilever, and replaceable stylus design, the Audio-Technica AT-VM610xMONO is a practical choice for listeners looking to enjoy monaural vinyl records with reliable tracking and consistent analog playback.
| Specification | Details |
|---|---|
| Brand | Audio-Technica |
| Model | AT-VM610xMONO |
| Product Type | Mono Phono Cartridge |
| Cartridge Type | Dual Moving Magnet (VM) |
| Frequency Response | 20 – 20,000 Hz |
| Output Voltage | 5.0 mV (1 kHz, 5 cm/sec.) |
| Horizontal/Vertical Output Ratio | 20 dB (1 kHz) |
| Tracking Force Range | 1.8 – 2.2 g |
| Recommended Tracking Force | 2.0 g |
| Coil Impedance | 1.6 kΩ (1 kHz) |
| DC Resistance | 375 Ω |
| Recommended Load Impedance | 47 kΩ |
| Recommended Load Capacitance | 150 – 250 pF |
| Coil Inductance | 240 mH (1 kHz) |
| Static Compliance | 23 × 10⁻⁶ cm/dyne |
| Dynamic Compliance | 7 × 10⁻⁶ cm/dyne (100 Hz) |
| Stylus Type | Bonded Conical |
| Stylus Curvature Radius | 0.6 mil |
| Cantilever | Aluminum Pipe |
| Vertical Tracking Angle | 20° |
| Mounting | Threaded Holes |
| Mounting Screw Size | M2.6 × 2 |
| Dimensions (H × W × D) | 17.5 × 18.3 × 28.0 mm |
| Cartridge Weight | 7.2 g |
| Replacement Stylus | AT-VMN10xCB |
| Application | Monaural Vinyl / Turntable Playback |
| Weight | 1 kg |
|---|---|
| Brand | Audio Technica |
| Product Type | Cartridge |
| Dimensions | 17.5 × 18.3 × 28.0 mm |
| EAN Code | 4961310163280 |
