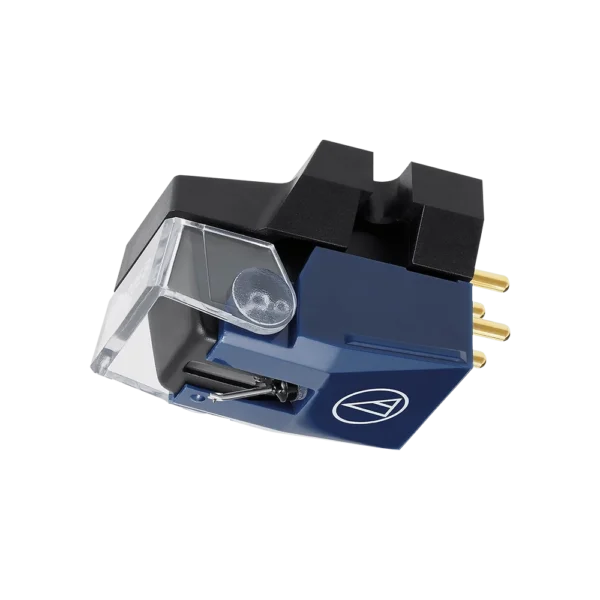

Audio-Technica AT-VM520EB Dual Moving Magnet Cartridge
Original price was: ₹12,820.00.₹11,290.00Current price is: ₹11,290.00. (Inclusive of GST)
In stock
- Dual Moving Magnet (VM) phono cartridge
- Conical bonded stylus for stable groove tracking
- Delivers clear and balanced analog sound
- Replaceable stylus for convenient maintenance
- Designed for reliable vinyl record playback
- Compatible with Audio-Technica VM520 Series styluses
- Standard mounting design for compatible turntables
- Ideal for home audio and vinyl enthusiasts
Audio-Technica AT-VM520EB Dual Moving Magnet Cartridge
The Audio-Technica AT-VM520EB is a high-quality Dual Moving Magnet (VM) phono cartridge designed to deliver reliable, detailed, and balanced analog audio performance from your vinyl records. Featuring a conical bonded stylus, the cartridge provides stable groove tracking and is well suited for everyday vinyl listening, making it an excellent choice for both new and experienced record enthusiasts.
Built as part of Audio-Technica’s VM520 cartridge series, the AT-VM520EB combines precise engineering with a durable design for consistent playback performance. Its Dual Moving Magnet construction helps produce clear and well-defined audio across the frequency range while maintaining dependable channel separation.
The cartridge features a replaceable stylus design, allowing the stylus to be replaced independently when required instead of replacing the complete cartridge. This makes the AT-VM520EB a practical and economical solution for maintaining a turntable system over time. Its standard mounting design also makes it suitable for a wide range of compatible tonearms and turntables.
Whether you are upgrading an existing setup, replacing a worn cartridge, or building a reliable vinyl playback system, the Audio-Technica AT-VM520EB offers a combination of accurate tracking, dependable construction, and enjoyable analog sound for everyday listening.
| Specification | Details |
|---|---|
| Brand | Audio-Technica |
| Model | AT-VM520EB |
| Product Type | Dual Moving Magnet Stereo Cartridge |
| Cartridge Type | VM Type |
| Stylus Type | Bonded Elliptical |
| Stylus Size | 0.3 × 0.7 mil |
| Stylus Construction | Bonded Round Shank |
| Cantilever | Aluminum Pipe |
| Frequency Response | 20 – 23,000 Hz |
| Output Voltage | 4.5 mV (1 kHz, 5 cm/sec) |
| Channel Separation | 27 dB (1 kHz) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Tracking Force | 1.8 – 2.2 g (2.0 g standard) |
| Vertical Tracking Angle | 23° |
| Coil Impedance | 2,700 Ω (1 kHz) |
| DC Resistance | 800 Ω |
| Coil Inductance | 460 mH (1 kHz) |
| Recommended Load Impedance | 47,000 Ω |
| Recommended Load Capacitance | 100 – 200 pF |
| Static Compliance | 35 × 10⁻⁶ cm/dyne |
| Dynamic Compliance | 8 × 10⁻⁶ cm/dyne (100 Hz) |
| Mounting | Half-Inch Mount |
| Dimensions (H × W × D) | 17.3 × 17.0 × 28.2 mm |
| Weight | 6.4 g |
| Replacement Stylus | VMN20EB |
| Housing | Low-Resonance Polymer |
| Application | Turntables / Vinyl Record Playback |
| Accessories Included | Mounting screws, washers and round nuts |
| Weight | 1 kg |
|---|---|
| Brand | Audio Technica |
| Product Type | Cartridge |
| Dimensions | 17.3 × 17.0 × 28.2 mm |
| EAN Code | 4961310137540 |
