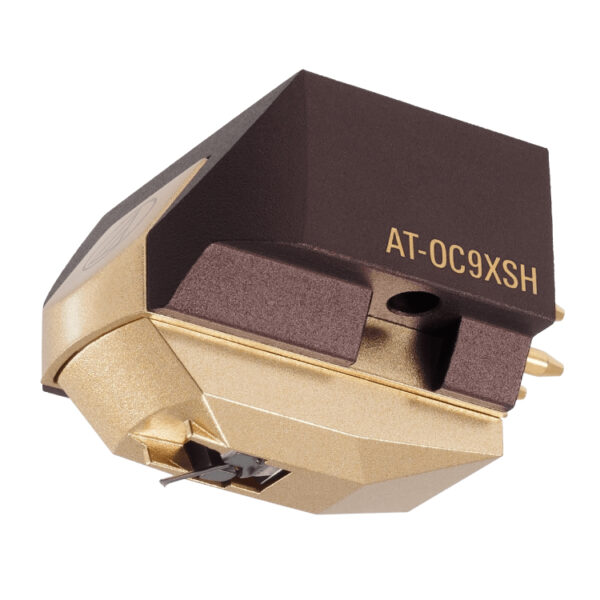

Audio-Technica AT-OC9XSH Dual Moving Magnet Cartridge
Original price was: ₹55,520.00.₹48,860.00Current price is: ₹48,860.00. (Inclusive of GST)
In stock
- Dual Moving Coil (MC) stereo phono cartridge
- Features a Nude Shibata stylus for detailed vinyl playback
- Solid boron cantilever for precise groove tracking
- Wide 20–47,000 Hz frequency response
- 0.4 mV output voltage for MC-compatible phono systems
- 27 dB channel separation for clear stereo imaging
- Recommended tracking force of 2.0 g
- Aluminium body construction helps reduce unwanted resonance
- 12 Ω coil impedance with 100 Ω or higher recommended load
- Ideal for high-quality turntables and premium analog audio playback
Audio-Technica AT-OC9XSH Dual Moving Magnet Cartridge
The Audio-Technica AT-OC9XSH is a high-performance stereo phono cartridge designed for detailed, accurate, and engaging vinyl playback. Featuring a Dual Moving Coil (MC) design, it is engineered to deliver precise channel separation, excellent musical detail, and a wide frequency response of 20–30,000 Hz.
The cartridge uses a nude elliptical stylus with a 0.3 × 0.7 mil profile mounted on an aluminum pipe cantilever. This stylus configuration is designed to accurately follow the record groove and reproduce fine musical information with clarity and precision. AT-OC9XSH provides a 0.32 mV output and 25 dB channel separation, making it suitable for high-quality MC-compatible phono systems.
Built with an aluminum body, the AT-OC9XSH combines a rigid construction with carefully engineered internal components to support stable and accurate analog playback. Its 1.8–2.2 g tracking-force range, with 2.0 g as the standard setting, allows proper groove tracking when correctly matched and aligned with a compatible tonearm.
The AT-OC9XSH is designed for use with MC-compatible phono preamplifiers or head amplifiers and has a recommended load impedance of 100 ohms or higher when connected to a head amplifier. Its threaded M2.6 mounting holes provide a secure installation on compatible headshells and tonearms.
With its Dual Moving Coil architecture, nude elliptical stylus, aluminum cantilever, and precision-oriented construction, the Audio-Technica AT-OC9XSH is a strong choice for vinyl enthusiasts seeking refined stereo reproduction and detailed analog performance from their turntable system.
| Specification | Details |
|---|---|
| Brand | Audio-Technica |
| Model | AT-OC9XSH |
| Product Type | Dual Moving Coil (MC) Stereo Phono Cartridge |
| Body Material | Aluminium |
| Stylus Type | Nude Shibata |
| Stylus Curvature Radius | 2.7 × 0.26 mil |
| Cantilever | 0.28 mm Solid Boron |
| Frequency Response | 20 – 47,000 Hz |
| Output Voltage | 0.4 mV (1 kHz, 5 cm/sec.) |
| Channel Separation | 27 dB (1 kHz) |
| Output Channel Balance | 1.0 dB (1 kHz) |
| Tracking Force Range | 1.8 – 2.2 g |
| Recommended Tracking Force | 2.0 g |
| Vertical Tracking Angle | 20° |
| Coil Impedance | 12 Ω (1 kHz) |
| DC Resistance | 12 Ω |
| Coil Inductance | 25 μH (1 kHz) |
| Recommended Load Impedance | 100 Ω or higher |
| Static Compliance | 20 × 10⁻⁶ cm/dyne |
| Dynamic Compliance | 16 × 10⁻⁶ cm/dyne (100 Hz) |
| Mounting | Half-Inch Mount |
| Mounting Feature | Threaded Body / M2.6 |
| Dimensions (H × W × D) | 17.3 × 16.8 × 25.7 mm |
| Cartridge Weight | 7.6 g |
| Coil Wire | PCOCC |
| Terminal Pins | Brass |
| Stylus Replacement | Not Field-Replaceable |
| Application | High-Quality Vinyl / Turntable Playback |
| Weight | 1 kg |
|---|---|
| Brand | Audio Technica |
| Product Type | Cartridge |
| Dimensions | 17.3 × 16.8 × 25.7 mm |
| EAN Code | 4961310150419 |
