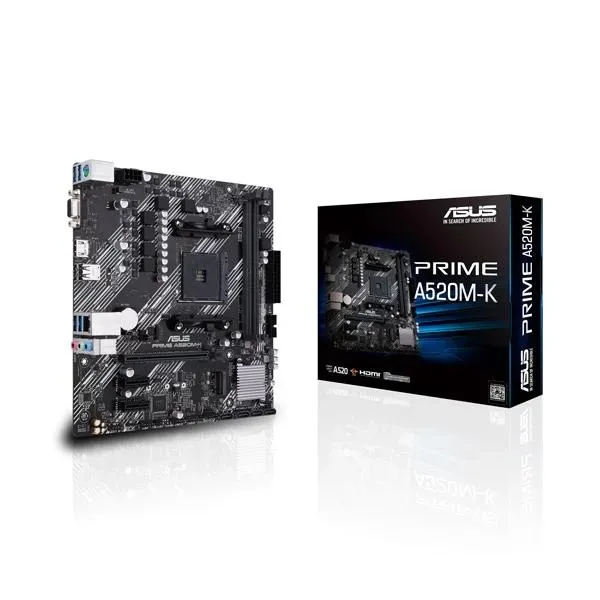

ASUS PRIME A520M-K

AMD A520M-K (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A

• AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Comprehensive cooling: PCH heatsink and Fan Xpert

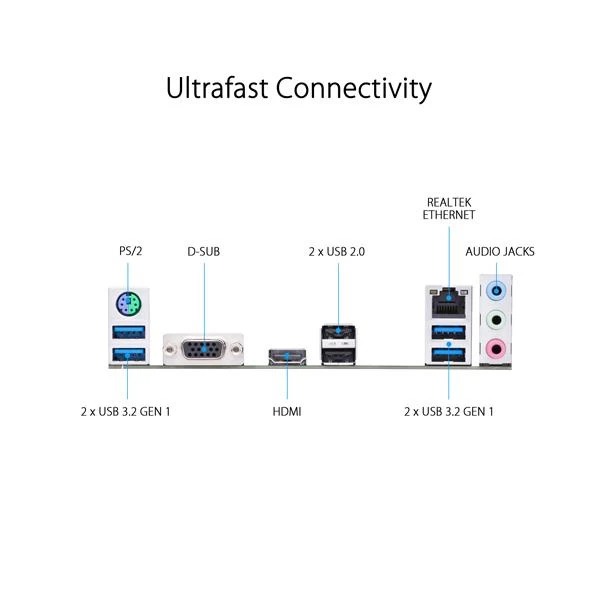

• Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
• 5X Protection III: Multiple hardware safeguards for all-around system protection

All-around Energy Efficiency

With the Energy Processing Unit (EPU), you’ll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.

Flexible Cooling Controls

Fan Xpert 2+ software provides comprehensive control over system fans. Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Cooler by Design

• Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
• A dedicated integrated circuit protects each fan header from overheating and overcurrent.A520M-K Each onboard chassis fan header supports PWM and DC mode.

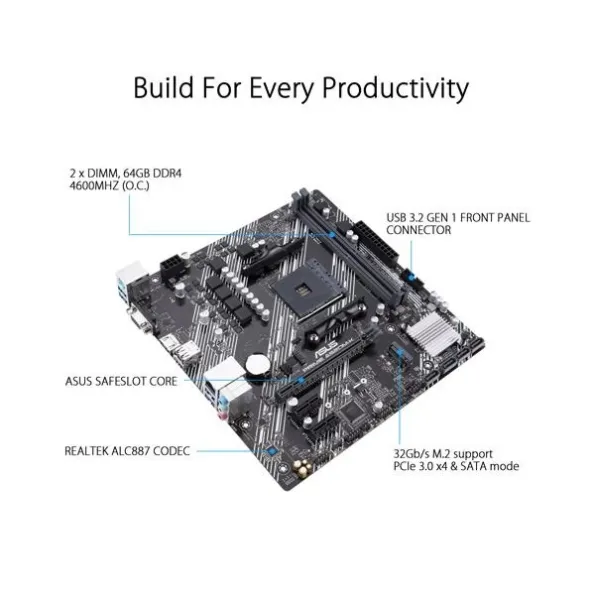

  Achieve speed with onboard M.2

  A520M-K M.2 Slot supports data-transfer speed up to 32Gbps via x4 PCI Express 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.



USB 3.2 Gen 1 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including four rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.

SafeSlot Core

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that’s anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
