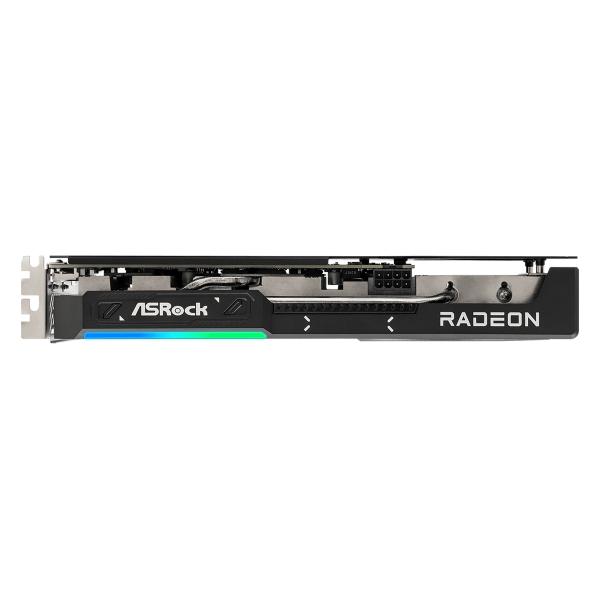

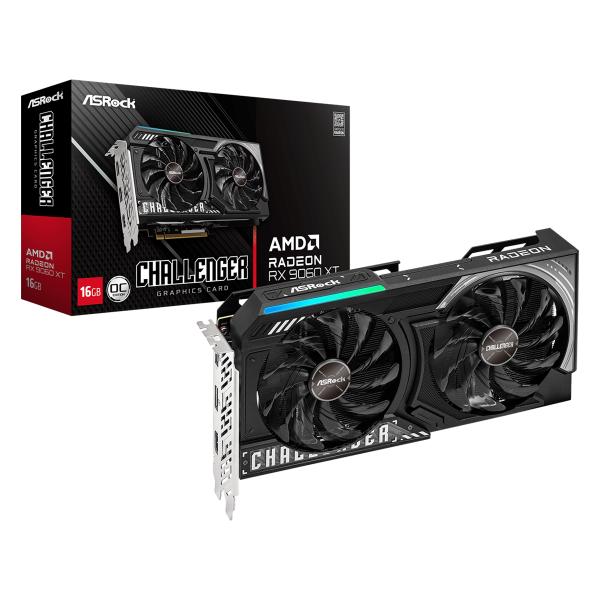

Asrock AMD Radeon RX 9060 XT Challenger 16GB OC
Dual Fan Design
Optimized Cooling Efficiency.
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.

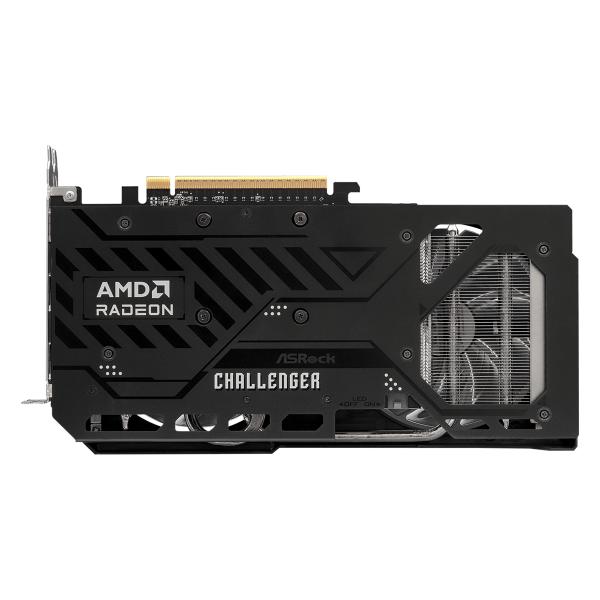

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
LED Indicators
More Decoration. More Beauty.
LED indicator embellished the graphics card to make it more beautiful.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
SPECIFICATIONS
Graphics Engine | AMD Radeonâ„¢ RX 9060 XT |
Bus Standard | PCI® Express 5.0 x16 |
DirectX Support | 12 Ultimate |
OpenGL Support | 4.6 |
Memory | 16GB GDDR6 |
Engine Clock | Boost Clock: 3290 MHz Game Clock: 2700 MHz |
Stream Processors | 2048 |
Compute Units | 32 |
Memory Clock | 20 Gbps |
Memory Interface | 128-bit |
Max Digital Resolution | 7680 x 4320 |
Display Outputs | 1x HDMI 2.1b 2x DisplayPort 2.1a |
HDCP Support | Yes |
Multi-view Support | 3 |
Recommended PSU | 550W |
Power Connector | 1x 8-pin |
Accessories | 1x Quick Installation Guide |
Dimensions (L x W x H) | 249 x 132 x 41 mm |
Net Weight | 645 g |
Weight | 1 kg |
---|---|
Brand | ASRock |
GPU Chipset | NVIDIA Geforce |
GPU Memory Size | 16GB |
GPU Series | Radeon RX 9000 |
Memory Series | GDDR6 |
Warranty | 3 Years |
