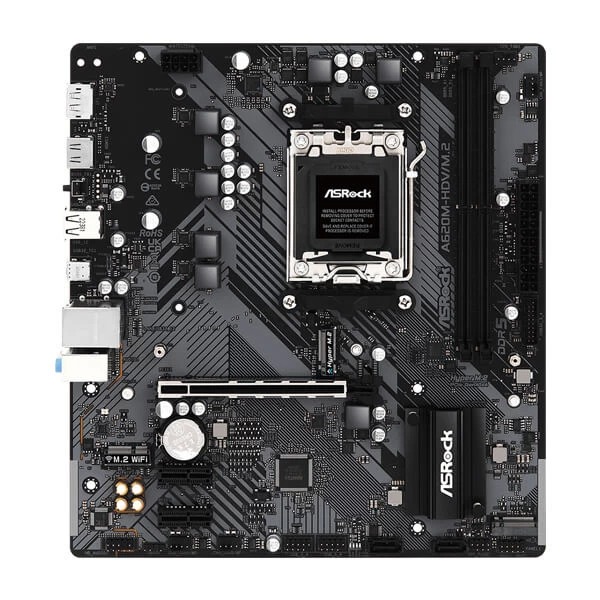

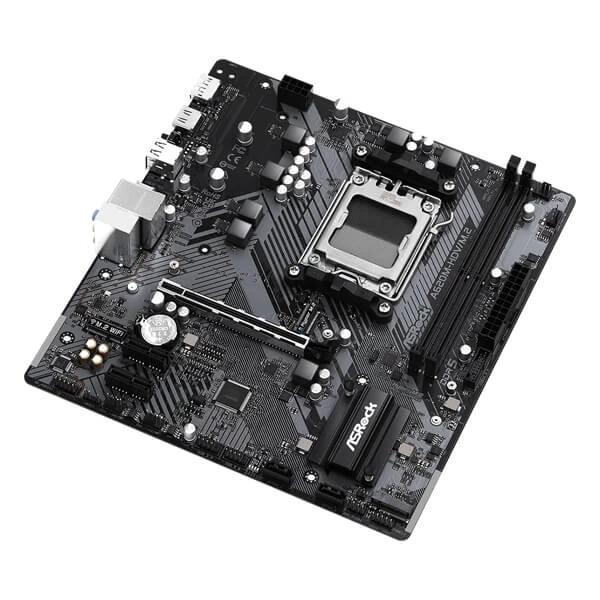

ASRock A620M-HDV/M.2 Motherboard

Sale!43%
  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 4+1+1 Power Phase, Dr.MOS
  • Supports DDR5 5600+ MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics
Original price was: ₹13,000.00.Current price is: ₹7,449.00. (Inclusive of GST)

Out of stock

Shipping Policy

Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed. Shipping Partners : FedEx, Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Green Apple Compunet DOES NOT Have any Control over Operations of Shipping Partners. Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays. Loss or damage occured during shipping is Green Apple Compunet Responsibility. You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package. You must notify Green Apple Compunet of damaged or missing items from your order within 24-hours of receiving your package.

 Get it by  Oct 24 Oct 28
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Reviews (0)
Q & A

ASRock A620M-HDV/M.2 motherboard supports AMD Socket AM5 Ryzen 7000 Series CPU Processors. Featuring 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi, and Supports DDR5 5600+ MHz (OC).

Features:

  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 4+1+1 Power Phase, Dr.MOS
  • Supports DDR5 5600+ MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
    2 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2)
  • 5 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback

Build for The Most Advanced PC

High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

USB 3.2 Gen1 Type-C

USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

SPECIFICATIONS

CPU
  1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors

(Please refer “CPU Support List” for more information.)

Chipset AMD A520
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. 3rd Gen AMD Ryzen™ Processors:
    Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics

Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots

CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

  1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
Storage Interface

CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

  1. 4 x SATA 6Gb/s connectors
  2. Support for RAID 0, RAID 1, and RAID 10
USB

CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 1 x M.2 Socket 3 connector
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 1 x USB 2.0/1.1 header
  13. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  14. 1 x serial port header
  15. 1 x Clear CMOS jumper
  16. 1 x Q-Flash Plus button
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 4 x USB 3.2 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Weight 1 kg
Brand

ASRock

color

Black

Product Type

Normal

Memory Series

DDR5

Motherboard Size

mATX

Platform

AMD

Warranty

3 Years

EAN Code

4710483943034
