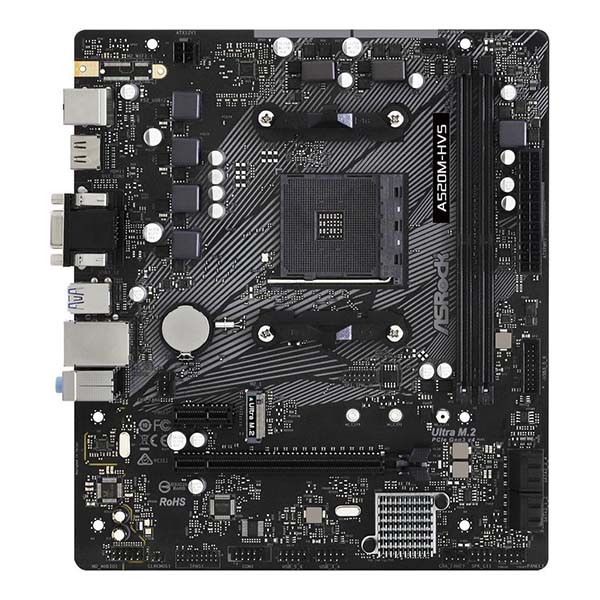

ASRock A520M-HVS AM4 AMD Micro ATX AMD Motherboard

Sale!28%
  • Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  • 6 Phase Power Design
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: D-Sub, HDMI
Original price was: ₹7,500.00.Current price is: ₹5,429.00. (Inclusive of GST)

Out of stock

Need Help? Contact Us
  Delivery & Return

Shipping Policy

Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed. Shipping Partners : FedEx, Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Green Apple Compunet DOES NOT Have any Control over Operations of Shipping Partners. Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays. Loss or damage occured during shipping is Green Apple Compunet Responsibility. You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package. You must notify Green Apple Compunet of damaged or missing items from your order within 24-hours of receiving your package.

 Get it by  Oct 24 Oct 28
SKU: A520M-HVS
Categories:,
Tags:, , , , ,
Brand: ASRock
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Reviews (0)
Q & A

ASRock A520M-HVS AM4 AMD A520 SATA 6Gb/s Micro ATX AMD Motherboard

Feature

  • Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  • 6 Phase Power Design
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
  • 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
  • 6 x USB 2.0(2 x Rear, 4 x Front)
  • Realtek Gigabit LANASRock A520M-HVS AM4 AMD Micro ATX AMD Motherboard - Green Apple CompunetASRock A520M-HVS AM4 AMD Micro ATX AMD Motherboard - Green Apple CompunetUltra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
    The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.ASRock A520M-HVS AM4 AMD Micro ATX AMD Motherboard - Green Apple Compunet

SPECIFICATIONS

CPU
  1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors

(Please refer “CPU Support List” for more information.)
Chipset AMD A520
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. 3rd Gen AMD Ryzen™ Processors:
    Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)
Onboard Graphics

Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots

CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

  1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
Storage Interface

CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

  1. 4 x SATA 6Gb/s connectors
  2. Support for RAID 0, RAID 1, and RAID 10
USB

CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 1 x M.2 Socket 3 connector
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 1 x USB 2.0/1.1 header
  13. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  14. 1 x serial port header
  15. 1 x Clear CMOS jumper
  16. 1 x Q-Flash Plus button
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 4 x USB 3.2 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Weight 1 kg
Brand

ASRock
color

Black
Motherboard Size

mATX
Platform

AMD
RAM Type

DDR4
Socket

AM4
Warranty

1 Year
EAN Code

4710483932311

Reviews

There are no reviews yet

Add a review
You must be logged in to post a review Log In

Q & A

Ask a question
ASRock A520M-HVS AM4 AMD Micro ATX AMD Motherboard ASRock A520M-HVS AM4 AMD Micro ATX AMD Motherboard
Your question
* Question is required
Name
* Name is required
There are no questions yet
Related Products
ZEBRONICS H81 LGA 1150 Socket Motherboard
Quick View
Sale!65%
ZEBRONICS H81 LGA 1150 Socket Motherboard
Original price was: ₹5,400.00.Current price is: ₹1,900.00. (Inclusive of GST)
SKU: Zeb-H81
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Read more
Gigabyte B650 Aorus Elite AX ICE AMD AM5 LGA 1718 ATX Motherboard
Quick View
Sale!32%
Gigabyte B650 Aorus Elite AX ICE AMD AM5 LGA 1718 ATX Motherboard
Original price was: ₹32,350.00.Current price is: ₹21,995.00. (Inclusive of GST)
SKU: B650 Aorus Elite AX ICE
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Read more

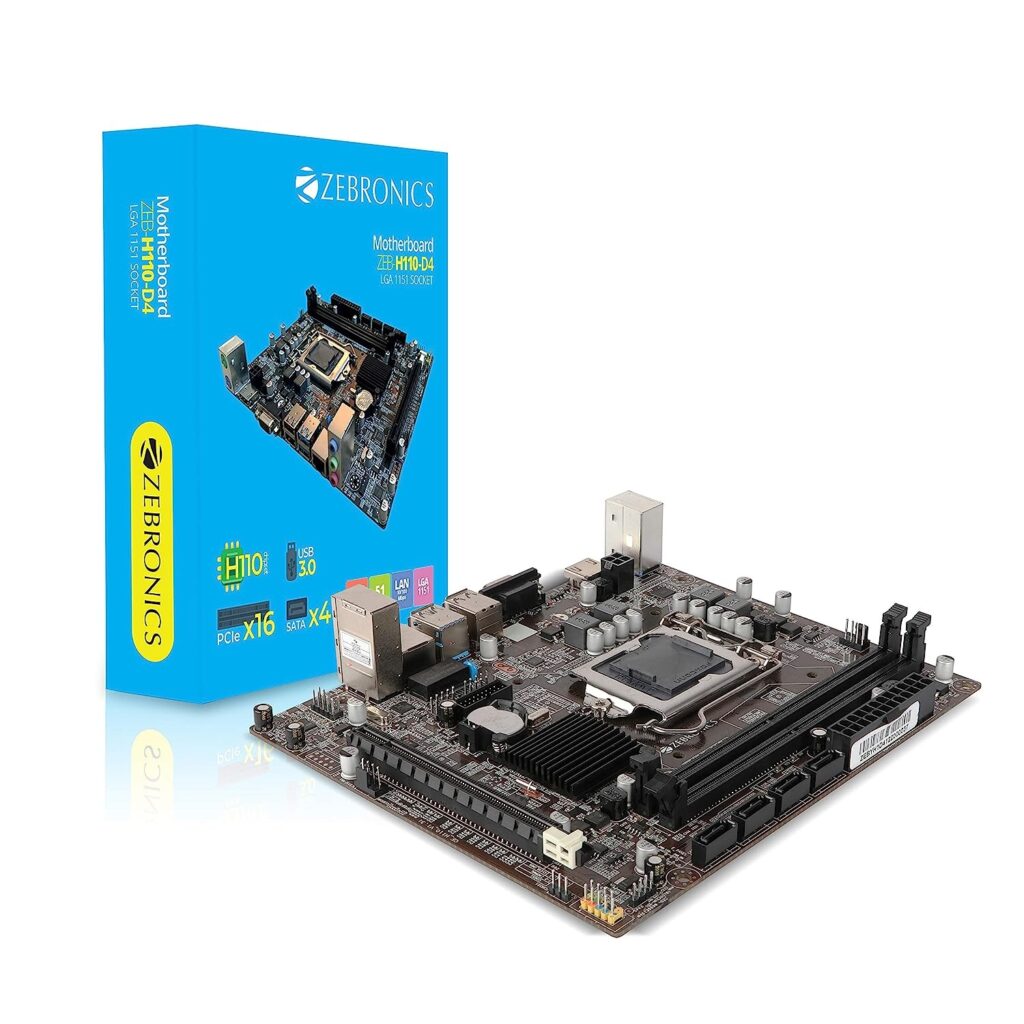

ZEBRONICS Zeb H110-D4 MicroATX Motherboard LGA 1151 Socket DDR4
Quick View
Sale!45%
ZEBRONICS Zeb H110-D4 MicroATX Motherboard LGA 1151 Socket DDR4
Original price was: ₹5,990.00.Current price is: ₹3,300.00. (Inclusive of GST)
SKU: Zeb-H110-D4
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Read more
Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
Quick View
Sale!58%
Gigabyte H610M K DDR4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
Original price was: ₹14,400.00.Current price is: ₹6,099.00. (Inclusive of GST)
SKU: H610M K
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Add to cart
Nzxt N7 Z790 (Wi-Fi) Motherboard DDR5 Supports LGA 1700 Intel 12th, 13th & 14th Gen Intel Processors – Black
Quick View
Sale!38%
Nzxt N7 Z790 (Wi-Fi) Motherboard DDR5 Supports LGA 1700 Intel 12th, 13th & 14th Gen Intel Processors – Black
Original price was: ₹49,990.00.Current price is: ₹30,900.00. (Inclusive of GST)
SKU: N7-Z79XT-B1
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Read more
MSI B450 Gaming Plus Max Motherboard
Quick View
Sale!39%
MSI B450 Gaming Plus Max Motherboard
Original price was: ₹14,400.00.Current price is: ₹8,795.00. (Inclusive of GST)
SKU: B450-Gaming-Plus-Max
  • ✓ Official Brand Warranty
  • ✓ Delivery All Over India
  • ✓ Easy Installment Options
Add to cart

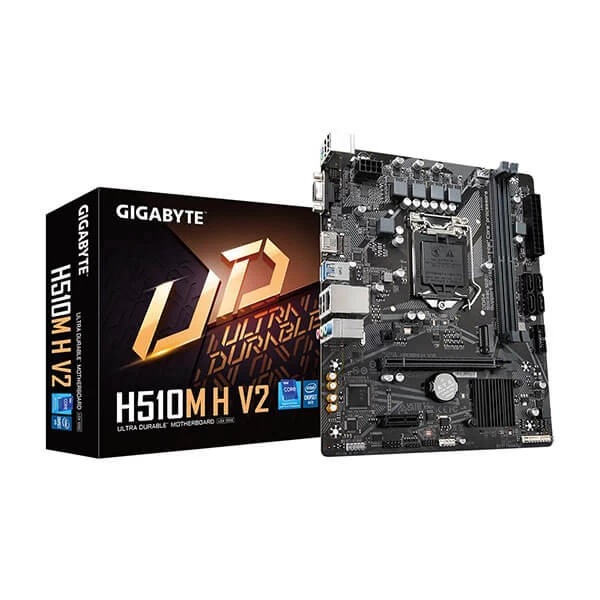

Gigabyte H510M H V2 Motherboard
