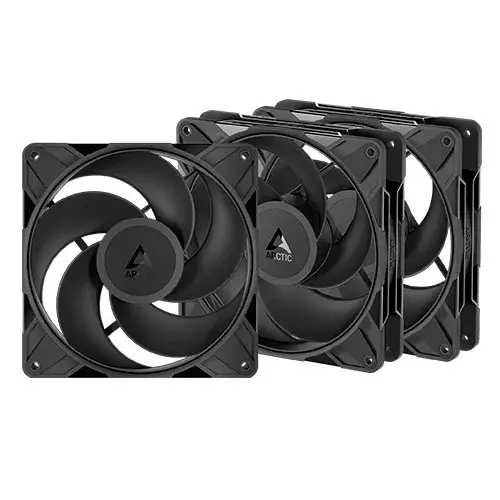

Arctic P14 Five Pack 140mm Cabinet Fan

Arctic P14 Five Pack 140mm Cabinet Fan

Feature

• OPTIMISED FOR STATIC PRESSURE: The fan guarantees extremely efficient cooling, even with increased air resistance, therefore, the P14 is particularly suitable for use on heatsinks and radiators
• HIGH QUALITY BEARING: Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved
• INNOVATIVE DESIGN: The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation, the impeller was designed with a focus on minimizing the noise level
• LONG SERVICE LIFE: The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage, thus this bearing is as quiet as a sleeve bearing but comes with a higher service life
• TECHNICAL DATA: Fan speed: 1700 RPM, Airflow: 72.8 CFM/123.76 m³/h (@ 1700 RPM), Noise Level: 0.3 Sone (@ 1700 RPM), Pin: 3-pin

Optimized for Static Pressure

High Quality Bearing

Thanks to a unique technology developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Two Way Installation

Push warm air out of the case, pull cool air into your case.

Highly Efficient

The ARCTIC P14 Case Fan is the ultimate PC-Cooler solution.

General data

Performance

Fan Speed: 1700 RPM

Airflow: 72.8 CFM/ 123.76 m³/h

Static Pressure: 2.40 mm/H²O

Noise Level: 0.3 Sone

Operating Ambient Temperature: 0 – 40 °C

Fan

Fan Frame: Standard

Control Type: Fixed Speed

Connector: 3-Pin-Connector

Fan Bearing: Fluid Dynamic Bearing

Typical Voltage: 12 V DC

Starting Voltage: 2.1 V

Current/Voltage: 0.15 A / 12 V

Cable Length: 400 mm

Size & Weight

• Length: 140 mm
• Width: 140 mm
• Height: 27 mm
• Weight: 191 g
