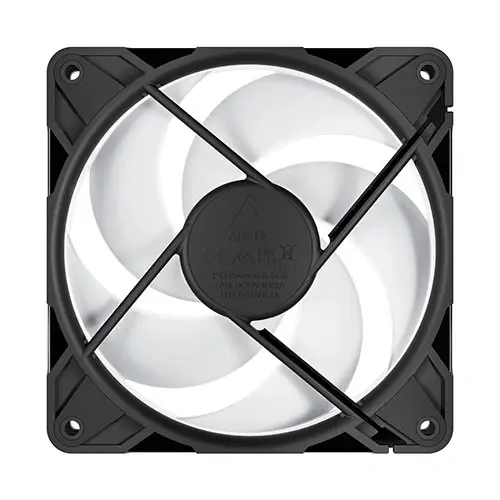

Arctic P12 Pro Reverse ARGB 120mm Triple Pack Cabinet Fan

Arctic P12 Pro Reverse ARGB 120mm Triple Pack Cabinet Fan

Feature

The Arctic P12 Pro Reverse is specifically designed for air intake from the back side. It’s particularly suitable when conventional fans would compromise the aesthetics.

• Fan Speed: 500–3000 rpm
• Bearing: Fluid Dynamic Bearing
• Static Pressure: 4.50 mm H2O
• Airflow: 73 cfm | 124.03 m³/h

Maximum Performance, Redefined

Instead of just turning the blades over, the fans are fully designed for true reverse flow. Its design ensures both high static pressure and strong airflow.

Reverse Airflow

ARCTIC’s reverse fans are specifically designed to draw air from the back and are particularly suitable when traditional fans would spoil the appearance.

SOTA-Microcontroller

Reduces motor noise and automatically compensates for speed drops when resistance is increased. Integrated protection mechanisms limit inrush current peaks and reliably protect against damage caused by reverse polarity.

PST – Proven cable management

Thanks to the additional PWM socket, several fans can be connected in series and controlled together via just one connection.

Automated Balancing

The precisely calculated balancing mass is injected precisely in one plane. This effectively reduces vibrations and ensures particularly quiet and long-lasting performance.

Minimum gap dimensions for Maximum efficiency

Lower manufacturing tolerances and clearances allow the fan to operate more effectively against resistance, maximizing static pressure and airflow efficiency.

Fan Specifications

• Fan Speed: 500 -3000 rpm PWM Controlled, 0 rpm below 5% PWM
• Airflow:  73 cfm | 124 m³/h
• Static Pressure: 4.5 mmH2O
• Fan Bearing: Fluid Dynamic Bearing
• Typical Voltage: 12 V DC
• Start Up Voltage: 3.5 V DC
• Current: 0.4 A
• Cable Length: 400 mm + 80 mm Daisy-Chain Cable
• Connector: 4-Pin Fan Plug + 4-Pin Socket

RGB Specifications

• LEDs: 12x A-RGB Gen2 LEDs
• Current | Voltage: 0.40 A | 5 V DC
• Connector: 3-Pin A-RGB Plug + 3-Pin Socket
