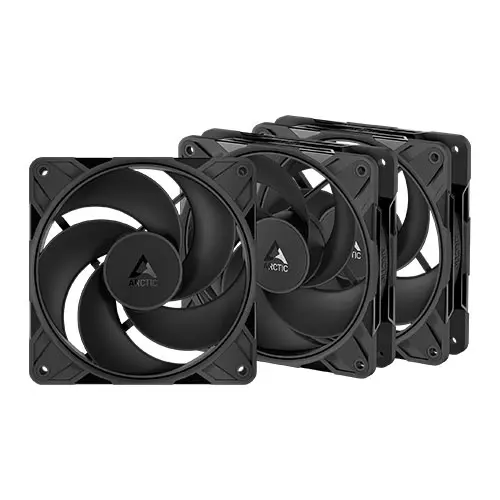

Arctic P12 Pro Reverse 120mm Triple Pack Cabinet Fan

Feature

• REVERSED AIRFLOW: Special design that draws in air from the back side. Ideal for glass fronted designs and PC builds where conventional fans would spoil the appearance
• HIGH STATIC PRESSURE: Efficient even with resistance the generated airflow easily penetrates dense radiators, narrow perforated panels and mesh structures and ensures reliable cooling
• PWM CONTROL WITH WIDE SPEED RANGE: The speed can be progressively adjusted up to 3000 rpm via the 4-pin PWM connection the fan stops completely at less than 5% PWM
• PRECISE MANUFACTURING FOR MAXIMUM SMOOTH RUNNING: Minimal gaps, automatic balancing and high-precision measurement noticeably reduce vibrations for quiet, efficient and long-lasting performance
• SMOOTH-RUNNING FLUID DYNAMIC BEARING (FDB): The self-lubricating bearing minimizes noise during operation ideal for quiet, efficient cooling and a long, reliable service life

Arctic P12 Pro Reverse – 3 Pack

120 mm PWM Fan with Cable Splitter

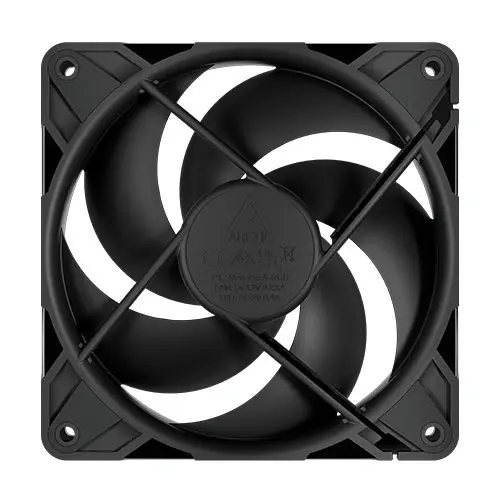

The P12 Pro Reverse is specifically designed for air intake from the back side. It’s particularly suitable when conventional fans would compromise the aesthetics.

• Fan Speed: 500–3000 rpm
• Bearing: Fluid Dynamic Bearing
• Static Pressure: 4.50 mm H2O
• Airflow: 73 cfm | 124.03 m³/h

Optimized Airflow Design

The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses. This reduces air resistance, minimizing turbulence and aerodynamic noise.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

PST – Easy Cable Management and Synchronized PWM Control

Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.

Optimized FDB Bearing-Shaft Design

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Fan Specifications

• Fan Speed: 500–3000 rpm, PWM controlled 0 rpm below 5 % PWM
• Airflow:  73 cfm | 124 m³/h
• Static Pressure:  4.5 mmH2O
• Fan Bearing: Fluid Dynamic Bearing
• Typical Voltage: 12 V DC
• Start Up Voltage: 3.5 V DC
• Current: 0.4 A
• Cable Length: 400 mm + 80 mm Daisy-Chain Cable
• Connector:  4-Pin Fan Plug + 4-Pin Socket
